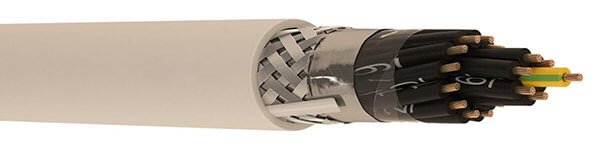

YSL(St)CY Cable Description
Featuring flexible stranded bare copper conductors, PVC insulation and outer sheathing, and a dual-layer shield—comprising an electrostatic foil and a tinned copper braid—YSL(St)CY cable is suitable for use in dry or damp indoor spaces and in outdoor environments protected from direct sunlight. It is commonly used to connect sensors, control panels, machine tools, and production lines.
YSL(St)CY Cable Construction
- Conductor
- Class 5 stranded annealed copper
- Insulation
- PVC (Polyvinyl Chloride)
- Screen
- Aluminum-polyester tape plus a tinned copper wire braid
- Outer Sheath
- PVC (Polyvinyl Chloride)
YSL(St)CY Cable Characteristics
- Voltage Rating
- 300/500V
- Temperature Rating
- -30°C ~ +70°C
- Bending Radius
- 7.5xD mm
YSL(St)CY Cable Technical Data
| Cross Section mm² | Conductor Resistance Ω/km (20 °C) | Insulation Resistance (@500V DC) MΩ/km | Operating Voltage V DC | Test Voltage (@ 1 minute) V DC |
|---|---|---|---|---|
| 0.50 | 39 | 20 | 300/500 | 2000 |
| 0.75 | 26 | 20 | 300/500 | 2000 |
| 1.00 | 19.5 | 20 | 300/500 | 2000 |
| 1.50 | 13.3 | 20 | 300/500 | 2000 |
| 2.50 | 7.98 | 20 | 300/500 | 2000 |
| 4.00 | 4.95 | 20 | 300/500 | 2000 |
| 6.00 | 3.3 | 20 | 300/500 | 2000 |
| 10.00 | 1.91 | 20 | 300/500 | 2000 |
| 16.00 | 1.21 | 20 | 300/500 | 2000 |
