IX-Al / IXXX-Al

IX-Al / IXXX-Al Cable Description

This type of cable uses an aluminum conductor and a halogen-free, flame-retardant thermoplastic compound (LSOH), producing less smoke and free of corrosive gases in the event of a fire. It is suitable for high-traffic public places such as hospitals, cinemas, shopping malls, and schools. It can be installed in conduits, ducts, or inside walls.

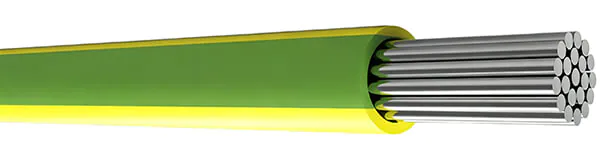

IX-Al / IXXX-Al Cable Construction

Conductor
Class 2 stranded aluminum
Insulation
LS0H compound

IX-Al / IXXX-Al Cable Characteristics

Rated voltage
450/750 V
Max. conductor temperature
70°C
Max. short-circuit temperature
160°C

IX-Al / IXXX-Al Cable Specifications

NOMINAL CROSS-SECTION (mm²)	CONDUCTOR SHAPE	MAX.RESISTANCE AT 20°C (Ω/km)	CURRENT CAPACITY IN THE AIR AT 30 (A)	INSULATION THICKNESS (mm)	OUTER DIAM. (APPROX.) (mm)	METAL WEIGHT (kg/km)	CABLE WEIGHT (APPROX.) (kg/km)
IX-Al
1x50	RM	0,641	140	1,4	11,0	145,0	210
1x95	RM	0,320	161	1,6	14,7	275,5	376
1x150	RM	0,206	204	1,8	17,9	435,0	574
IXXX-Al
1x240/37	AHF	0,125	269	2,2	22,6	696,0	912
1x240/61	AHF	0,125	269	2,2	22,6	696,0	912
