TFXP Cable

TFXP Cable Description

TXP cables have a polyvinyl chloride (PVC) outer sheath, which protects against UV rays, moisture, oil, and chemicals. It is suitable for fixed installations in indoor, outdoor, cable duct, underground, and underwater environments, and can withstand significant mechanical stress during installation and operation. Note that when laid directly underground, a layer of sand is required to prevent cable damage.

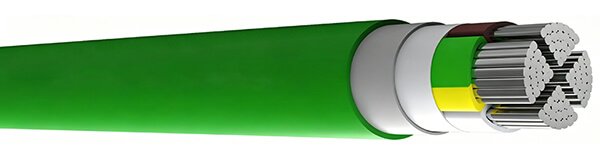

TFXP Cable Construction

Conductor
Al, class 2
Insulation
XLPE compound DIX 3
Inner sheath
HDPE compound
Outer Sheath
PVC compound

TFXP Cable Characteristics

Rated voltage
0,6/1 kV
Bending radius (min)
multicore – 12D
Min. laying temperature
-5°C
Max. working temperature
90°C
Max. short-circuit temperature
250°C

TFXP Cable Specifications

NOMINAL CROSS-SECTION (mm²)	CONDUCTOR CONSTRUCTION	MAX. RESISTANCE AT 20°C (Ω/km)	NOM. THICKNESS OF INSULATION (mm)	NOM.THICKNESS OF PE SHEAT (mm)	CURRENT CAPACITY IN AIR (A)	CURRENT CAPACITY IN EARTH (A)	OUTER DIAM. (APPROX.) (mm)	METAL WEIGHT (kg/km)	CABLE WEIGHT (APPROX.) (kg/km)
4x25	1200	0,90	1,50	1,40	102	112	24,5	290	603,2
4x50	0,641	1,00	1,70	1,40	149	158	31,2	580	1019,7
4x95	0,320	1,10	2,00	1,50	234	234	39,7	1102	1738,5
4x150	0,206	1,40	2,00	1,60	311	300	48,6	1740	2606,0
4x240	0,125	1,70	2,00	1,80	427	398	59,0	2784	3924,3
