NAHXC2Y Cable

NAHXC2Y Cable Description

NAHXC2Y cables feature aluminum conductors, HEPR insulation, and an HDPE outer sheath. The concentric shielding layer, composed of copper wire and copper tape, is used for shielding against electromagnetic interference (EMC) and for protective grounding or neutral connection. It can be directly buried underground or installed in cable conduits or on supports.

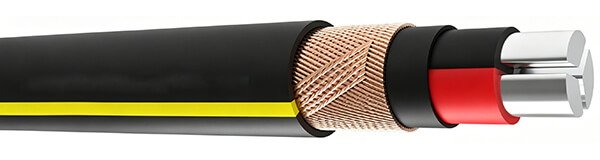

NAHXC2Y Cable Construction

Conductor
Class 1 (solid) or Class 2 (stranded) aluminum
Insulation
Cross-linked HEPR (Hard Ethylene Propylene Rubber)
Concentric conductor
Cu wires with counter helix of Cu tape
Outer Sheath
HDPE (High-Density Polyethylene)

NAHXC2Y Cable Characteristics

Rated voltage: 0,6/1 kV
Bending radius (min): 12xD
Min. laying temperature: -5°C
Max. conductor temperature: 90°C
Max. short-circuit temperature: 250°C

NAHXC2Y Cable Specifications

NOMINAL CROSS-SECTION (mm²)	CONDUCTOR CONSTRUCTION	MAX. RESISTANCE AT 20°C (Ω/km)	MIN.THICKNESS OF INSULATION (mm)	CURRENT CAPACITY IN AIR (A)	CURRENT CAPACITY IN EARTH (A)	OUTER DIAM. (APPROX.) (mm)	METAL WEIGHT (kg/km)	CABLE WEIGHT (APPROX.) (kg/km)
3x25/16	RM	1200	0,71	102	112	25,6	200,8	812
3x35/25	RM	0,868	0,71	126	135	28,6	290,9	1097
3x50/25	RM	0,641	0,80	149	158	31,6	382,5	1312
3x50/35	RM	0,641	0,80	149	158	31,6	382,5	1397
3x50/25	SE	0,641	0,80	149	158	26,9	383	973
3x70/35	SE	0,443	0,89	191	196	30,6	552,7	1292
3x95/50	SE	0,320	0,89	234	234	33,7	765,3	1677
3x120/70	SE	0,253	0,98	273	268	36,4	971,2	2145
3x150/95	SE	0,206	1,16	311	300	39,2	1183,3	2661
3x185/95	SE	0,164	1,34	360	342	43,3	1486,9	3116
3x240/120	SE	0,125	1,43	427	398	47,5	1971,2	3963
3x240/150	SE	0,125	1,43	427	398	47,9	1971,2	4266
