RE-H(St)H Cable

RE-H(St)H Cable Description

RE-H(St)H cables feature tinned copper conductors, low-smoke zero-halogen (LSZH) insulation and outer sheathing, and an electrostatic shield consisting of aluminum/polyester (Al/PET) foil and a tinned copper drain wire. Suitable for use in wet or dry locations, indoors or outdoors, and in hazardous industrial areas, these cables are commonly employed in industrial automation, petrochemical facilities, and manufacturing plants.

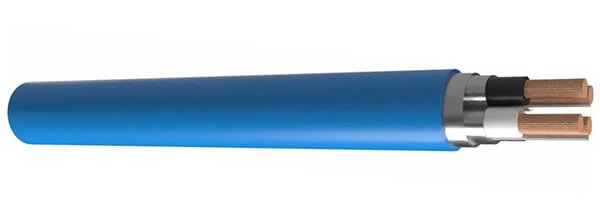

RE-H(St)H Cable Construction

Conductor
Stranded plain or tinned copper (Class 2)
Insulation
Halogen-free compound
Screen
Aluminium/polyester tape with a tinned copper earthing wire
Outer Sheath
Low Smoke Zero Halogen (LSZH / HFFR) compound

RE-H(St)H Cable Characteristics

Voltage Rating
300/500V
Operating Temperature
-30°C ~ +70°C
Minimum Bending Radius
7.5xD mm

RE-H(St)H Cable Technical Data

Conductor Diameter mm²	Conductor Resistance Ω/km (20 °C)	Insulation Resistance (@500V DC) MΩ/km	Mutual Capacitance nF/km	Operating Voltage V DC	Test Voltage (@ 1 minute) V DC
0.50	36.0	100	100	300/500	2000
0.75	24.5	100	100	300/500	2000
1.00	18.1	100	100	300/500	2000
1.50	12.1	100	100	300/500	2000
2.50	7.41	100	100	300/500	2000
