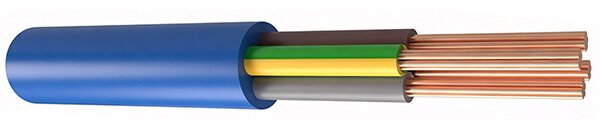

FR-N1 X6G3 Cable

FR-N1 X6G3 Cable Description

The FR-N1 X6G3 cable is constructed with Class 1 solid or Class 2 stranded copper conductors, cross-linked polyethylene (XLPE) insulation, and a low-smoke, zero-halogen (LSZH) outer sheath. It offers UV resistance, abrasion resistance, flame retardancy, and an AD7 water-resistance rating. It is suitable for indoor or outdoor installation—whether in conduits, on cable trays or ladders, or fixed directly to walls—and is commonly used in commercial, public, and industrial buildings.

FR-N1 X6G3 Cable Construction

Conductor
Class 1 solid copper or Class 2 stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Outer Sheath
LSZH (Low Smoke Zero Halogen)

FR-N1 X6G3 Cable Characteristics

Voltage Rating Uo/U
0.6/1kV
Temperature Rating
Fixed: -30°C to +90°C

FR-N1 X6G3 Cable Specification

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL THICKNESS OF INSULATION mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	2.5	0.7	8.00	75
1	4	0.7	8.35	90
1	6	0.7	8.90	115
1	10	0.7	9.65	165
1	16	0.7	10.50	230
1	25	0.9	12.05	340
1	35	0.9	13.10	440
1	50	1	14.50	570
1	70	1.1	16.30	795
1	95	1.1	18.00	1055
1	120	1.3	19.50	1315
1	150	1.4	21.70	1600
1	185	1.6	23.50	1975
1	240	1.7	26.40	2525
1	300	1.8	28.70	3030
1	400	2	31.90	3820
1	500	2.2	35.30	4825
2	1.5	0.7	9.35	125
2	2.5	0.7	10.10	155
2	4	0.7	11.05	195
2	6	0.7	12.05	295
2	10	0.7	14.50	390
2	16	0.7	16.40	560
2	25	0.9	19.90	850
2	35	0.9	22.20	1010
3	1.5	0.7	9.80	145
3	2.5	0.7	10.60	180
3	4	0.7	11.65	235
3	6	0.7	12.70	325
3	10	0.7	15.35	485
3	16	0.7	17.40	705
3	25	0.9	21.15	1080
3	35	0.9	23.60	1425
3	50	1	26.65	1840
3	70	1.1	30.70	2540
3	95	1.1	35.00	3430
3	120	1.3	38.65	4440
3	150	1.4	44.00	5380
3	185	1.6	48.30	6920
4	1.5	0.7	10.50	170
4	2.5	0.7	11.40	215
4	4	0.7	12.60	290
4	6	0.7	13.75	390
4	10	0.7	17.00	600
4	16	0.7	19.00	870
4	25	0.9	23.35	1365
4	35	0.9	25.85	1875
4	50	1	29.45	2550
4	70	1.1	34.00	3010
4	95	1.1	38.75	3960
4	120	1.3	42.55	5160
4	150	1.4	48.70	6150
4	185	1.6	53.45	7780
4	240	1.7	60.90	9550
5	1.5	0.7	11.45	195
5	2.5	0.7	12.45	255
5	4	0.7	13.80	345
5	6	0.7	15.10	475
5	10	0.7	18.60	735
5	16	0.7	21.00	1070
5	25	0.9	25.70	1605
