FM2XAH Cable

FM2XAH Cable Description

FM2XAH cables feature an integral aluminum foil shielding layer to minimize electromagnetic interference. Its twisted-pair construction (FM2XAAH) ensures proper transmission of high-frequency signals. This cable is commonly used in signaling and communication systems on ships and offshore platforms.

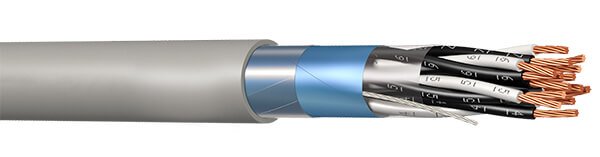

FM2XAH Cable Construction

Conductor
Class 2 stranded annealed copper wire (Class 5 and / or tinned on request)
Insulation
XLPE (Cross linked polyethylene compound)
Inner Covering
Separating foil
Screen
Electrolytic, tinned, stranded copper drain wire and aluminum tape overall screen
Separator (Optional)
Separating foil above screen
Outer sheath
Halogen-free, flame retardant, UV resistant, polyolefin based compound (SHF 1)

FM2XAH Cable Characteristics

Rated Voltage
150 / 250 V
Working Temperature
-40°C / + 90°C
Min. Bending Radius
6xD

FM2XAH Cable Specifications

Cross Section (mm²)	Overall Diameter (mm)	Approximate Weight (kg / km)	Min.Bending Radius Fixed Installed (mm)	Max Resistance of Conductors at 20℃ (ohm / km)	Current Carrying Capacity at 45℃ (A)
1x2x0,5	5,7	42	35	40,4	11
2x2x0,5	7,9	68	48	40,4	9
4x2x0,5	9,3	105	56	40,4	6
7x2x0,5	10,9	150	66	40,4	5
10x2x0,5	14,1	220	85	40,4	5
12x2x0,5	14,5	244	87	40,4	5
14x2x0,5	15,2	274	92	40,4	4
16x2x0,5	16,1	315	97	40,4	4
18x2x0,5	17,1	345	103	40,4	4
24x2x0,5	20,1	450	121	40,4	4
37x2x0,5	23,1	640	139	40,4	3
1x2x0,75	6,5	55	39	26,0	13
2x2x0,75	9,4	90	57	26,0	11
4x2x0,75	10,9	140	66	26,0	8
7x2x0,75	13,1	210	79	26,0	7
10x2x0,75	16,9	310	102	26,0	6
12x2x0,75	17,5	350	105	26,0	6
14x2x0,75	18,4	395	111	26,0	5
16x2x0,75	19,6	450	118	26,0	5
18x2x0,75	20,6	496	124	26,0	5
24x2x0,75	24,2	648	146	26,0	5
37x2x0,75	28,1	952	169	26,0	4
1x2x1	6,8	60	41	19,2	16
2x2x1	9,9	105	60	19,2	13
4x2x1	11,7	164	71	19,2	9
7x2x1	14,0	255	84	19,2	8
10x2x1	17,9	360	108	19,2	7
12x2x1	18,5	410	111	19,2	7
14x2x1	19,6	470	118	19,2	6
16x2x1	20,8	530	125	19,2	6
18x2x1	22,0	596	132	19,2	6
24x2x1	25,9	780	156	19,2	6
37x2x1	29,8	1132	179	19,2	5
1x2x1,5	7,9	80	48	12,8	20
1x3x1,5	8,6	101	52	12,8	17
2x2x1,5	11,8	145	71	12,8	17
4x2x1,5	13,9	234	84	12,8	12
7x2x1,5	16,7	370	101	12,8	10
10x2x1,5	21,4	520	129	12,8	9
12x2x1,5	22,3	610	134	12,8	9
14x2x1,5	23,5	690	141	12,8	8
16x2x1,5	25,1	782	151	12,8	8
18x2x1,5	26,3	864	158	12,8	7
24x2x1,5	31,3	1150	188	12,8	7
37x2x1,5	36,2	1694	218	12,8	6
1x2x2,5	9,1	107	55	7,86	27
1x3x2,5	9,7	138	58	7,86	22
