FMGCG Cable

FMGCG Cable Description

The twisted-pair construction of FMGCG ensures proper transmission of high-frequency signals, while its overall shielding minimizes environmental electromagnetic interference. It is typically used above and below the deck of ships.

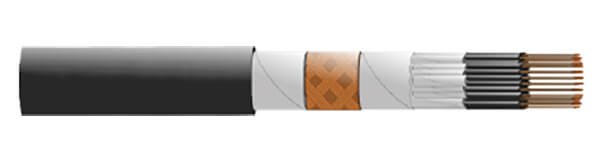

FMGCG Cable Construction

Conductor
Class 2 stranded annealed copper wire (Class 5 and/or tinned on request)
Insulation
HF HEPR rubber compound
Lay up
Cores laid up in pair, pairs laid up concentrically
Separator
Separating foil over screen
Screen
Electrolytic copper braided screen (90% coverage)
Outer Sheath
Chloroprene-based flame retardant, UV resistant, oil resistant black outer jacket (SE1)

FMGCG Cable Characteristics

Rated Voltage
60/250 V
Working Temperature
-40°C / + 90°C
Min. Bending Radius
8 x (Overall Diameter)

FMGCG Cable

CROSS SECTION (mm²)	OVERALL DIAMETER (mm)	APPX. WEIGHT (kg / km)	COPPER WEIGHT (kg / km)
1 x 2 x 0.5	7.6	80	35.6
1 x 4 x 0.5	8.7	120	56.2
2 x 2 x 0.5	10	130	56.2
4 x 2 x 0.5	12.5	195	85.4
1 x 2 x 0.75	8.2	92	41.4
1 x 4 x 0.75	9.5	133	65.8
2 x 2 x 0.75	11	150	66.8
4 x 2 x 0.75	13.7	235	112.6
7 x 2 x 0.75	16.3	345	171.8
10 x 2 x 0.75	19.8	490	254
14 x 2 x 0.75	22.2	632	316.6
19 x 2 x 0.75	25	810	423.6
24 x 2 x 0.75	28	990	510
