MGG Cable

MGG Cable Description

MGG cables feature stranded copper conductors, EPR insulation, and a neoprene sheath, making them resistant to dry, humid, and oily environments. Suitable for enclosed cabin areas and open decks, they are used in power distribution and lighting systems.

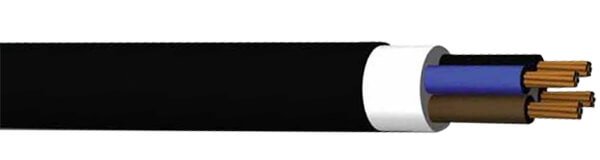

MGG Cable Construction

Conductor
Class 2 stranded annealed copper wire
Insulation
HF HEPR compound
Bedding
Rubber
Outer Sheath
Chloroprene-based black outer jacket

MGG Cable Characteristics

Rated Voltage
0,6/1 kV
Operating Temperature
-40°C / + 90°C
Min. Bending Radius
6 x D

MGG Cable Specifications

CROSS SECTION (mm²)	OVERALL DIAMETER (mm)	APPX. WEIGHT (kg / km)	COPPER WEIGHT (kg / km)
1x1	4.9	36	9.6
1x1.5	5.2	44	14.4
1x2.5	5.6	55	24
1x4	6.2	75	38
1x6	6.7	96	58
1x10	7.6	140	96
1x16	8.8	201	154
1x25	10.7	309	240
1x35	11.7	401	336
1x50	13.6	545	480
1x70	15.7	762	672
1x95	17.5	1008	912
1x120	19.4	1267	1152
1x150	21.6	1565	1440
1x185	23.8	1937	1776
1x240	26.8	2528	2304
1x300	31	3680	2880
2x1	9.8	135	19
2x1.5	10.4	158	29
2x2.5	11.2	193	48
2x4	12.6	257	77
2x6	13.6	318	115
2x10	15.6	448	192
2x16	18.2	638	307
2x25	21.8	948	480
3x1	10.3	155	29
3x1.5	10.9	182	43
3x2.5	12	233	72
3x4	13.2	303	115
3x6	14.3	383	173
3x10	16.5	552	288
3x16	19.2	791	461
3x25	23.1	1188	720
3x35	25.4	1526	1008
3x50	29.3	2053	1440
3x70	34.2	2880	2016
3x95	38.3	3780	2736
3x120	42.3	4709	3456
3x150	47.4	5856	4320
3x185	52.5	7258	5328
3x240	59.4	9465	6912
4x1	11	180	38
4x1.5	11.9	221	58
4x2.5	12.9	278	96
4x4	14.3	368	154
4x6	15.7	477	230
4x10	18.1	691	384
4x16	21.2	999	614
4x25	25.5	1504	960
4x35	28.2	1949	1344
4x50	32.5	2620	1920
4x70	37.9	3677	2688
4x95	42.6	4851	3648
4x120	47.5	6104	4608
4x150	52.4	7475	5760
4x185	58.5	9339	7104
4x240	65.3	12035	9216
5x1	12	211	48
5x1.5	12.8	253	72
5x2.5	13.9	321	120
5x4	15.7	439	192
5x6	17.3	572	288
5x10	19.9	829	480
5x16	23.4	1205	768
5x25	28.2	1817	1200
6x1	12.7	241	58
6x1.5	13.6	292	86
6x2.5	14.8	372	144
7x1	12.7	248	67
7x1.5	13.6	303	101
7x2.5	14.8	390	168
8x1	12.3	240	77
8x1.5	13.6	311	115
8x2.5	15.2	420	192
9x1	13.2	276	86
9x1.5	14.5	354	130
9x2.5	16.3	481	216
10x1	13.5	262	96
10x1.5	14.9	342	144
10x2.5	16.7	467	240
12x1	14	298	115
12x1.5	15.4	389	173
12x2.5	17.3	534	288
14x1	14.9	343	134
14x1.5	16.2	439	202
14x2.5	18.3	614	336
16x1	15.6	385	154
16x1.5	17.2	504	230
16x2.5	19.3	694	384
18x1	16.4	427	173
18x1.5	18.1	560	259
18x2.5	20.3	773	432
19x1	16.4	434	182
19x1.5	18.1	571	274
19x2.5	20.3	790	456
20x1	16.4	465	192
20x1.5	18.1	610	288
20x2.5	20.3	845	480
21x1	17.5	527	202
21x1.5	19.1	649	302
21x2.5	21.5	936	504
24x1	19.3	552	230
24x1.5	21.3	726	346
24x2.5	23.9	1004	576
25x1	19.3	568	240
25x1.5	21.3	747	360
25x2.5	23.9	1035	600
27x1	20	612	259
27x1.5	22	804	389
27x2.5	24.5	1101	648
30x1	20.7	669	288
30x1.5	22.8	880	432
30x2.5	25.5	1219	720
32x1	21.4	714	307
32x1.5	23.6	940	461
32x2.5	26.5	1305	768
36x1	22.4	798	346
36x1.5	24.7	1051	518
36x2.5	27.7	1458	864
37x1	22.4	805	355
37x1.5	24.7	1062	533
37x2.5	27.7	1476	888
40x1	23.3	888	384
40x1.5	25.7	1170	576
40x2.5	28.9	1626	960
42x1	24.3	933	403
42x1.5	26.8	1230	605
42x2.5	30	1707	1008
48x1	25.8	1038	461
48x1.5	28.4	1369	691
48x2.5	32.1	1922	1152
60x1	28.4	1267	576
60x1.5	31.5	1689	864
