Type P Power Cable

Type P Power Cable Description

Type P power cable uses high-strand tinned copper conductors, giving it flexibility and making it easier to install in confined spaces. This cable offers excellent resistance to oil, abrasion, petrochemical liquids, moisture, salt water, and sunlight. It is typically available in unarmored, armored and unsheathed, and armored and sheathed configurations.

Type P Power Cable Construction

Conductor
Soft annealed flexible stranded tinned copper wire
Seperator
A suitable separator tape may be applied to the conductor
Insulation
Cross-linked polyolefin compound
Armor
Basket weave bronze or tinned copper wire armour
Sheath
Thermoset chlorinated polyethylene, CPE compound

Type P Power Cable Characteristics

Rated Voltage
600/1000 V
2 kV
Min. Bending Radius
6 x D

Type P Power Cable Unarmoured
Type P Power Cable Armoured and Unsheathed

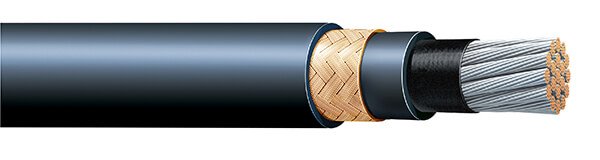

Type P Power Cable Armoured and Sheated
Type P Power Cable Single Conductor 2kV Unarmoured
Type P Power Cable Single Conductor 2kV Armoured and Unsheathed
Type P Power Cable Single Conductor 2kV Armoured and Sheathed

Cross-Section	Outer Sheath Diameter			Approx. Cable Weight (kg/km)	Min. Bending Radius (mm)	Current Carrying Capacity 100℃ (A)	Current Carrying Capacity 110℃ (A)	Max. Electrical Resistance at 20℃ (ohm/km)
Cross-Section	Min. (mm)	Nom. (mm)	Max. (mm)	Approx. Cable Weight (kg/km)	Min. Bending Radius (mm)	Current Carrying Capacity 100℃ (A)	Current Carrying Capacity 110℃ (A)	Max. Electrical Resistance at 20℃ (ohm/km)
1x18 AWG	5.2	5.7	6.5	39	26	16	17	20.384
1x16 AWG	5.2	5.9	7	43	28	23	25	15.778
1x14 AWG	5.6	6.2	7	53	28	37	40	9.996
1x12 AWG	6	6.7	7.5	68	30	45	48	6.292
1x10 AWG	6.8	7.5	8.5	98	34	58	62	3.538
1x8 AWG	8.2	9	10	138	40	72	77	2.460
1x6 AWG	9.2	10	11	195	44	96	103	1.539
1x4 AWG	10	11.1	12	292	48	124	132	0.977
1x4 AWG	11	11.8	13	301	52	128	137	0.902
1x3 AWG	11.5	12.6	14	364	56	146	156	0.715
1x2 AWG	12.5	13.3	14.5	425	58	169	181	0.568
1x1 AWG	13	16.4	18	623	72	194	208	0.442
1x1/0 AWG	16	17.7	19.5	784	90	237	254	0.343
1x2/0 AWG	17.5	18.5	20	862	80	262	281	0.284
1x3/0 AWG	19	20.4	22	1.100	88	300	321	0.206
1x4/0 AWG	21.5	22.8	24.5	1.345	98	331	376	0.171
1x262 kcmil	23	24.5	26.5	1.545	108	359	411	0.148
1x313 kcmil	24.5	26.2	28	1.845	168	455	487	0.123
1x373 kcmil	26	27.8	30	2.135	180	516	553	0.103
1x444 kcmil	28	29.6	31.5	2.334	189	588	630	0.086
1x535 kcmil	30.5	32.4	34.5	3.042	207	630	676	0.072
1x597 kcmil	31.5	33.6	36	3.251	218	678	727	0.065
1x646 kcmil	33	34.8	37	3.648	222	739	793	0.060
1x777 kcmil	35	37.2	39.5	4.301	237	822	881	0.050
1x111 kcmil	43	45.2	48	6.235	288	1.025	1.098	0.035
2x18 AWG	8	8.9	10	108	34	16	16	20.384
2x16 AWG	8.2	9	10	120	40	19	20	15.779
2x14 AWG	9	9.7	11	125	44	31	33	9.996
2x12 AWG	9.5	10.7	12	162	48	40	43	6.292
2x10 AWG	11	12.2	13.5	273	54	49	52	3.538
2x8 AWG	12.5	14.2	16	375	70	64	69	2.54
2x6 AWG	16.5	18.1	19.5	521	78	85	91	1.539
2x4 AWG	18.5	20.1	22	693	88	101	108	1.137
2x4 AWG	21.5	22.8	24.5	849	98	110	118	0.902
2x3 AWG	23	24.5	26	1.159	112	144	154	0.715
2x2 AWG	24	25.9	28	1.172	168	149	160	0.568
2x1 AWG	28.5	30.3	32.5	1.642	195	174	186	0.442
2x1/0 AWG	33	35.8	38	1.831	204	199	213	0.343
2x2/0 AWG	36	38.2	41	2.282	222	226	242	0.284
2x3/0 AWG	36	38.2	41	2.862	246	265	284	0.206
2x4/0 AWG	38.5	40.9	43.5	3.363	261	307	329	0.171
2x262 kcmil	44	46.5	49.5	4.194	297	358	383	0.148
2x313 kcmil	49	51.7	55	5.341	318	393	421	0.123
2x373 kcmil	49.5	52.4	55.5	5.564	333	442	473	0.103
2x444 kcmil	53	56	59.5	6.528	337	504	540	0.086
2x535 kcmil	56.5	61.5	65.5	7.864	393	558	576	0.072
2x597 kcmil	60	63.5	67.5	8.681	423	609	653	0.065
2x646 kcmil	63	66.4	70.5	9.394	423	632	677	0.06
2x777 kcmil	69.5	73	77.5	11.280	465	684	733	0.05
2x111 kcmil	82	85.9	91	15.592	546	854	855	0.035
3x18 AWG	8.4	9.1	10.5	105	42	12	13	20.384
3x16 AWG	8.6	9.3	10.5	118	46	17	17	15.779
3x14 AWG	9.4	10.3	11.5	151	48	25	27	9.996
3x12 AWG	10.5	11.3	12.5	198	50	31	33	6.292
3x10 AWG	12	12.9	14.5	295	58	41	44	3.538
3x8 AWG	14.5	17	19	459	66	54	58	2.46
3x6 AWG	18	19.2	21	657	84	70	75	1.539
3x5 AWG	20	21.4	23	886	92	82	88	1.137
3x4 AWG	22.5	24.2	26	1.075	136	92	99	0.902
3x3 AWG	24.5	26	28	1.293	148	106	114	0.715
3x2 AWG	26.5	27.9	30	1.512	177	121	130	0.568
3x1 AWG	30.5	32.3	34.5	2.118	207	143	153	0.442
3x1/0 AWG	32	33.9	36.5	2.369	219	164	176	0.343
3x2/0 AWG	35	36.8	39.5	2.933	237	188	201	0.284
3x3/0 AWG	38	40.1	43	3.658	281	218	234	0.206
3x4/0 AWG	43	45.2	48.5	4.532	291	252	270	0.171
3x262 kcmil	47	49.6	53	5.486	318	294	315	0.148
3x313 kcmil	49.5	52.4	56	6.278	336	321	344	0.123
3x373 kcmil	53	55.9	59.5	7.326	337	361	387	0.103
3x444 kcmil	57	59.9	63.5	8.625	381	411	440	0.086
3x535 kcmil	62.3	65.8	70	10.393	420	443	475	0.072
3x597 kcmil	65	67.8	72	11.179	435	470	504	0.065
3x646 kcmil	69.5	72.8	77	12.701	462	514	553	0.06
3x777 kcmil	74.5	78.1	82.5	14.941	495	562	602	0.05
4x18 AWG	9	9.9	11	127	44	12	13	20.384
4x16 AWG	9.4	10.3	11.5	144	46	16	17	15.779
4x14 AWG	10	11.2	12.5	188	50	25	27	9.996
4x12 AWG	11.5	12.3	13.5	246	54	31	33	6.292
4x10 AWG	14	15	16.5	394	66	41	44	3.538
4x8 AWG	17	18.6	20.5	580	82	52	56	2.46
4x6 AWG	21	22.4	24	826	96	70	75	1.539
4x5 AWG	23	24.6	26.5	1.171	139	82	88	1.137
4x4 AWG	25	26.6	28.5	1.354	171	92	99	0.902
4x3 AWG	27	28.6	30.5	1.633	183	106	114	0.715
4x2 AWG	29	30.5	32.5	1.855	198	121	130	0.568
4x1 AWG	33.5	35.6	38	2.693	228	143	153	0.442
4x1/0 AWG	35	37.4	40	3.018	240	164	176	0.343
4x2/0 AWG	38.5	40.7	43.5	3.746	261	188	201	0.284
4x3/0 AWG	44	46.7	50	4.932	300	218	234	0.206
4x4/0 AWG	49	51.7	55	6.072	333	252	270	0.171
4x262 kcmil	52	54.8	58.5	7.018	331	294	315	0.148
4x313 kcmil	55	58	61.5	8.044	369	321	344	0.123
4x373 kcmil	59	61.9	65.5	9.394	393	361	387	0.103
4x444 kcmil	65	68.3	72.5	11.602	423	411	440	0.086
4x535 kcmil	71	74.8	79	13.612	474	443	475	0.072
4x597 kcmil	74	77.8	82.5	14.964	495	470	478	0.07
4x646 kcmil	77	80.6	85.5	16.312	513	514	553	0.06
5x18 AWG	9.5	10.7	12	112	48	10	10	20.384
5x16 AWG	10	11.2	12.5	173	48	13	14	15.779
5x14 AWG	11	12.2	13.5	223	54	20	22	9.996
5x12 AWG	12.5	13.4	15	300	60	25	26	6.292
5x10 AWG	15	16.4	18	479	72	33	35	3.538
5x8 AWG	19	20.4	22	709	88	42	45	2.46
5x6 AWG	22.5	24.3	26	1.064	156	56	60	1.539
5x5 AWG	25	27	29	1.439	174	66	70	1.137
5x4 AWG	27.5	29.2	31.5	1.664	189	74	79	0.902
5x3 AWG	29.5	31.4	33.5	2.013	201	86	93	0.715
5x2 AWG	31.5	33.3	35.5	2.354	213	98	105	0.568
5x1 AWG	37	39.3	42	3.332	252	114	122	0.412
5x1/0 AWG	39	41.2	44	3.736	264	131	141	0.343
5x2/0 AWG	44	46.5	49.5	4.781	297	150	161	0.284
5x3/0 AWG	49	51.5	55	6.111	330	174	187	0.206
5x4/0 AWG	52.5	55.1	58.5	7.213	331	202	216	0.171
5x262 kcmil	57.5	60.5	64.5	8.713	387	235	252	0.148
5x313 kcmil	61	64.1	68	9.997	408	257	275	0.123
5x373 kcmil	65	68.5	72.5	11.692	435	289	310	0.103
5x444 kcmil	71.5	75.2	80	14.046	480	329	352	0.086
5x535 kcmil	78.5	82.7	87.5	16.923	525	354	380	0.072
5x597 kcmil	82	86.1	91	18.615	546	376	382	0.07

Cross-Section	Outer Sheath Diameter			Approx. Cable Weight (kg/km)	Min. Bending Radius (mm)	Current Carrying Capacity 100℃ (A)	Current Carrying Capacity 110℃ (A)	Max. Electrical Resistance at 20℃ (ohm/km)
Cross-Section	Min. (mm)	Nom. (mm)	Max. (mm)	Approx. Cable Weight (kg/km)	Min. Bending Radius (mm)	Current Carrying Capacity 100℃ (A)	Current Carrying Capacity 110℃ (A)	Max. Electrical Resistance at 20℃ (ohm/km)
1x18 AWG	6.4	7.1	8	100	48	16	17	20.384
1x16 AWG	6.6	7.3	8.5	106	51	23	25	15.778
1x14 AWG	7	7.6	8.5	120	51	37	40	9.996
1x12 AWG	7.4	8.1	9	140	54	45	48	6.292
1x10 AWG	8.2	8.9	10	178	60	58	62	3.538
1x8 AWG	9.6	10.3	11.5	233	69	72	77	2.46
1x6 AWG	10.5	11.4	12.5	299	75	96	103	1.539
1x5 AWG	11.5	12.4	13.5	376	81	109	117	1.137
1x4 AWG	12	12.2	14.5	425	87	128	137	0.902
1x3 AWG	13	14	15.5	496	93	146	156	0.715
1x2 AWG	13.5	14.7	16	550	99	161	173	0.568
1x1/0 AWG	16.5	17.8	19.5	794	117	194	208	0.442
1x3/0 AWG	17.5	18.5	20	874	120	227	243	0.363
1x2/0 AWG	18.5	19.9	21.5	1037	129	262	281	0.284
1x3/0 AWG	20.5	21.8	23.5	1181	134	300	321	0.226
1x4/0 AWG	22.5	24.2	26	1583	156	351	376	0.171
1x262 kcmil	24.5	26.2	28	1873	168	407	436	0.141
1x313 kcmil	26	27.5	29.5	2121	177	455	487	0.121
1x373 kcmil	27.5	29.2	31.5	2443	189	516	553	0.103
1x444 kcmil	29	31	33	2844	198	588	630	0.086
1x535 kcmil	32	33.8	36	3318	216	670	676	0.072
1x597 kcmil	33	35	37.5	3699	225	670	676	0.07
1x646 kcmil	34	36.2	38.5	4012	231	731	783	0.06
1x777 kcmil	36.5	38.6	41	4693	246	822	881	0.05
1x878 kcmil	44	46.6	49.5	6712	297	1025	1098	0.035
2x18 AWG	12.2	13	14	180	74	16	17	20.384
2x16 AWG	11.6	12.4	13.5	194	69	19	20	15.778
2x14 AWG	10	11.1	12.5	227	75	31	33	9.996
2x12 AWG	11	12	13	294	75	41	43	6.292
2x10 AWG	12.5	13.6	15	363	90	49	52	3.538
2x8 AWG	16	17.4	19	540	114	64	69	2.46
2x6 AWG	19	19.5	21	715	126	85	91	1.539
2x5 AWG	20	21.3	23.5	900	134	101	108	1.137
2x4 AWG	22.5	24.2	26	1087	156	113	121	0.902
2x3 AWG	24	25.9	28	1268	168	129	141	0.715
2x2 AWG	25.5	27.5	29.5	1449	177	149	160	0.568
2x1/0 AWG	30	31.7	34	1962	204	174	186	0.442
2x3/0 AWG	34	36.2	38.5	2593	231	213	228	0.363
2x2/0 AWG	34	35.9	38.5	2615	231	242	259	0.284
2x3/0 AWG	37.5	39.6	42.5	3268	255	285	284	0.226
2x4/0 AWG	41	43.3	46	3762	307	327	349	0.171
2x262 kcmil	45.5	47.8	51	4683	306	358	383	0.141
2x313 kcmil	48	50.5	54	5305	324	381	419	0.121
2x373 kcmil	51	53.7	57	6118	342	442	473	0.103
2x444 kcmil	57.5	61	65	7514	390	504	540	0.086
2x535 kcmil	60	62.9	67	8511	402	538	576	0.072
2x597 kcmil	62.5	65.4	69.5	9320	417	580	585	0.07
2x646 kcmil	64.5	67.8	72	10019	432	632	677	0.06
2x777 kcmil	71	74.4	79	12042	484	713	763	0.05
2x1131 kcmil	83	87.3	92.5	18047	555	854	855	0.035
3x18 AWG	9.5	10.5	12	199	72	12	13	20.384
3x16 AWG	10	10.9	12	216	78	15	17	15.778
3x14 AWG	10.5	11.7	13	257	78	25	27	9.996
3x12 AWG	11.5	12.7	14	318	84	31	33	6.292
3x10 AWG	13	14.3	16	429	96	41	44	3.538
3x8 AWG	17	18.6	20.5	660	120	52	56	2.46
3x6 AWG	19	20.6	22.5	860	133	70	75	1.539
3x5 AWG	21.5	22.8	24.5	1111	147	82	88	1.137
3x4 AWG	24	25.6	27.5	1327	163	92	99	0.902
3x3 AWG	25.5	27.4	29.5	1569	168	106	114	0.715
3x2 AWG	27	28.9	31	1796	186	122	131	0.568
3x1/0 AWG	33.5	35.7	38	2437	216	143	153	0.442
3x3/0 AWG	38	40.5	43	3221	246	176	188	0.363
3x2/0 AWG	38	38.2	41	3316	246	198	201	0.284
3x3/0 AWG	40	42.2	45	4187	270	218	234	0.226
3x4/0 AWG	44	46.8	49.5	5024	297	252	270	0.171
3x262 kcmil	50	53	56.5	6507	342	290	311	0.141
3x313 kcmil	51	53.8	57.5	6838	345	321	344	0.121
3x373 kcmil	54.5	57.3	61	7623	366	411	387	0.103
3x444 kcmil	58.5	61.3	65	9248	390	411	440	0.086
3x535 kcmil	64	67.2	71.5	11016	429	443	475	0.072
3x597 kcmil	65	69.9	74	11942	435	476	478	0.07
3x646 kcmil	70.5	74.2	78.5	13460	471	516	553	0.06
3x777 kcmil	75.5	79.4	84	15780	504	582	602	0.05
4x16 AWG	11	12.1	13.5	229	71	14	15	15.778
4x14 AWG	10.5	11.7	13	250	78	16	17	9.996
4x12 AWG	11.5	12.6	14	301	84	25	27	6.292
4x10 AWG	13.5	14.9	16.5	440	96	31	33	3.538
4x8 AWG	18.5	20	22	774	132	52	56	2.46
4x6 AWG	21	22.5	24.5	1047	147	70	75	1.539
4x5 AWG	24.5	26	28	1427	168	82	88	1.137
4x4 AWG	26	28	30	1610	180	92	99	0.902
4x3 AWG	28	29.9	32	1929	192	108	116	0.715
4x2 AWG	30	31.7	34	2228	204	122	131	0.568
4x1/0 AWG	35.5	37	39.5	3066	237	143	153	0.442
4x3/0 AWG	38.5	38.8	41.5	3409	249	194	176	0.363
4x2/0 AWG	40	42.1	45	4185	270	188	201	0.284
4x3/0 AWG	45.5	48.1	51.5	5421	309	218	234	0.226
4x4/0 AWG	48.5	51.3	54.5	6307	324	252	270	0.171
4x262 kcmil	53.5	56.2	59.5	7596	337	294	315	0.141
4x313 kcmil	56.5	59.4	63	8604	378	321	344	0.121
4x373 kcmil	60	63.3	67	10047	402	381	387	0.103
4x444 kcmil	64.5	67.7	72	11782	435	440	440	0.086
4x535 kcmil	72.5	76.1	80.5	14396	483	475	475	0.072
4x597 kcmil	75.5	79.2	84	15785	504	470	478	0.07
4x646 kcmil	81	85	89.5	17158	540	513	551	0.06
4x777 kcmil	91	92.1	93.5	21114	600	576	600	0.05
5x16 AWG	11.5	12.6	14	289	84	13	14	15.778
5x14 AWG	12.5	13.6	15	349	90	20	22	9.996
5x12 AWG	13.5	14.9	16.5	400	100	25	26	6.292
5x10 AWG	16.5	17.8	19.5	648	117	33	35	3.538
5x8 AWG	20,5	21,8	23,5	916	141	42	45	2,46
5x6 AWG	24,0	25,6	27,5	1.315	165	56	60	1,539
5x5 AWG	26,5	28,4	30,5	1.72	183	66	70	1,137
5x4 AWG	28,5	30,6	33,0	1.97	198	74	79	0,902
5x3 AWG	31,0	32,8	35,0	2.347	210	86	93	0,715
5x2 AWG	32,5	34,7	37,0	2.703	222	98	105	0,568
5x1 AWG	38,5	40,7	43,5	3.74	261	114	122	0,412
5x1/0 AWG	40,5	42,6	45,5	4.175	273	131	141	0,363
5x2/0 AWG	45,5	47,9	51,0	5.269	306	150	161	0,284
5x3/0 AWG	50,0	52,9	56,5	6.649	339	174	187	0,206
5x4/0 AWG	53,5	56,5	60,0	7.809	360	202	216	0,171
5x262 kcmil	59,0	61,9	66,0	9.348	396	235	252	0,148
5x313 kcmil	62,5	65,5	69,5	10.669	417	257	275	0,123
5x373 kcmil	66,5	69,9	74,0	12.407	444	289	310	0,103
5x444 kcmil	73,0	76,6	81,0	14.83	486	329	352	0,086
5x535 kcmil	80,0	84,1	89,0	17.782	534	354	380	0,072
5x597 kcmil	83,5	87,5	92,5	19.511	555	376	382	0,07

Cross-Section	Outer Sheath Diameter			Approx. Cable Weight (kg/km)	Min. Bending Radius (mm)	Current Carrying Capacity 100℃ (A)	Current Carrying Capacity 110℃ (A)	Max. Electrical Resistance at 20℃ (ohm/km)
Cross-Section	Min. (mm)	Nom. (mm)	Max. (mm)	Approx. Cable Weight (kg/km)	Min. Bending Radius (mm)	Current Carrying Capacity 100℃ (A)	Current Carrying Capacity 110℃ (A)	Max. Electrical Resistance at 20℃ (ohm/km)
1x16 AWG	9,2	10,1	11,5	153	69	23	25	15,778
1x14 AWG	9,6	10,5	11,5	169	69	37	40	9,996
1x12 AWG	10,0	11,0	12,0	192	72	45	48	6,292
1x10 AWG	10,5	11,7	13,0	234	78	58	62	3,538
1x8 AWG	12,0	13,2	14,5	297	87	72	77	2,46
1x6 AWG	13,5	15,1	16,5	396	99	96	103	1,539
1x5 AWG	14,5	16,1	17,5	481	105	109	117	1,137
1x4 AWG	15,5	16,9	18,5	536	111	128	137	0,902
1x3 AWG	16,5	17,7	19,5	612	117	146	156	0,715
1x2 AWG	17,0	18,5	20,0	687	120	169	181	0,568
1x1 AWG	20,0	21,6	23,5	939	141	194	208	0,412
1x1/0 AWG	21,5	23,4	25,0	1.076	150	227	243	0,363
1x2/0 AWG	23,0	24,8	26,5	1.272	159	262	281	0,284
1x3/0 AWG	25,0	26,9	29,0	1.552	174	300	321	0,206
1x4/0 AWG	27,0	29,3	31,5	1.842	189	351	376	0,171
1x262 kcmil	29,0	31,3	33,5	2.151	201	407	436	0,148
1x313 kcmil	30,5	32,7	35,0	2.413	210	455	487	0,123
1x373 kcmil	32,0	34,3	36,5	2.751	219	516	553	0,103
1x444 kcmil	34,0	36,1	38,5	3.17	231	588	630	0,086
1x535 kcmil	36,5	38,9	41,5	3.733	249	630	676	0,072
1x597 kcmil	37,5	40,1	43,0	4.063	258	670	678	0,07
1x646 kcmil	39,0	41,3	44,0	4.388	264	731	783	0,06
1x777 kcmil	42,5	45,3	48,0	5.236	288	822	881	0,05
1x1111 kcmil	50,0	53,3	56,5	7.357	339	1.025	1.098	0,035
2x18 AWG	11,5	12,9	14,5	242	87	14	15	20,384
2x16 AWG	12,0	13,2	14,5	259	87	19	20	15,778
2x14 AWG	13,5	14,9	16,5	322	99	31	33	9,996
2x12 AWG	14,5	15,8	17,5	376	105	40	43	6,292
2x10 AWG	16,0	17,3	19,0	476	114	49	52	3,538
2x8 AWG	19,5	21,2	23,0	681	138	64	69	2,46
2x6 AWG	22,5	24,3	26,5	925	159	85	91	1,539
2x5 AWG	24,5	26,3	28,5	1.13	171	101	108	1,137
2x4 AWG	27,0	29,4	31,5	1.346	189	110	118	0,902
2x3 AWG	28,5	31,0	33,5	1.543	201	132	141	0,715
2x2 AWG	30,0	32,4	35,0	1.738	210	149	160	0,568
2x1 AWG	34,5	36,9	39,5	2.293	237	174	186	0,412
2x1/0 AWG	36,0	38,3	41,0	2.511	246	199	213	0,363
2x2/0 AWG	38,5	41,0	44,0	2.988	264	242	259	0,284
2x3/0 AWG	43,5	46,3	49,5	3.823	297	265	284	0,206
2x4/0 AWG	46,0	49,0	52,0	4.382	312	307	329	0,171
2x262 kcmil	51,0	54,5	58,0	5.342	348	358	383	0,148
2x313 kcmil	54,0	57,2	61,0	6	366	391	419	0,123
2x373 kcmil	57,0	60,4	64,0	6.854	384	442	473	0,103
2x444 kcmil	60,5	64,1	68,0	7.909	408	504	540	0,086
2x535 kcmil	66,0	69,6	74,0	9.367	444	538	576	0,072
2x597 kcmil	69,5	73,9	78,5	10.477	471	580	585	0,07
2x646 kcmil	72,0	76,2	81,0	11.288	486	632	677	0,06
2x777 kcmil	78,5	82,8	87,5	13.345	525	684	733	0,05
3x18 AWG	12,0	13,3	15,0	264	90	12	13	20,384
3x16 AWG	12,5	13,7	15,0	284	90	16	17	15,778
3x14 AWG	14,0	15,4	17,0	355	102	25	27	9,996
3x12 AWG	15,0	16,4	18,0	425	108	31	33	6,292
3x10 AWG	16,5	18,1	19,5	547	117	41	44	3,538
3x8 AWG	21,5	23,2	25,0	839	150	52	56	2,46
3x6 AWG	23,5	25,4	27,5	1.081	165	70	75	1,539
3x5 AWG	26,0	27,9	30,0	1.356	180	82	88	1,137
3x4 AWG	28,5	30,8	33,0	1.599	198	92	99	0,902
3x3 AWG	30,0	32,5	35,0	1.858	210	108	116	0,715
3x2 AWG	31,5	34,0	36,5	2.1	219	122	131	0,568
3x1 AWG	36,5	38,8	41,5	2.808	249	143	153	0,412
3x1/0 AWG	38,0	40,4	43,0	3.088	258	164	176	0,363
3x2/0 AWG	40,5	43,3	46,5	3.711	279	188	201	0,284
3x3/0 AWG	46,0	48,9	52,0	4.775	312	218	234	0,206
3x4/0 AWG	50,0	53,3	56,5	5.668	339	252	270	0,171
3x262 kcmil	54,0	57,6	61,0	6.707	366	294	315	0,148
3x313 kcmil	57,0	60,5	64,0	7.575	384	321	344	0,123
3x373 kcmil	60,5	64,0	68,0	8.706	408	361	387	0,103
3x444 kcmil	64	67.9	72	10,083	432	411	440	0.086
3x535 kcmil	71.5	75.6	80	12,278	480	443	475	0.072
3x597 kcmil	74	78.3	83	13,377	498	470	478	0.07
3x646 kcmil	78	82.6	87.5	14,762	525	516	553	0.06
3x777 kcmil	83	87.9	93	17,151	558	562	602	0.05
4x18 AWG	13.5	15	16.5	325	99	12	13	20.384
4x16 AWG	14	15.4	17	349	102	16	17	15.778
4x14 AWG	15	16.3	18	406	108	25	27	9.996
4x12 AWG	16	17.4	19	488	114	31	33	6.292
4x10 AWG	18.5	20.2	22	683	132	41	44	3.538
4x8 AWG	23	24.8	27	989	162	52	56	2.46
4x6 AWG	25.5	27.6	29.5	1,288	177	70	75	1.539
4x5 AWG	29	31.1	33.5	1,702	201	82	88	1.137
4x4 AWG	31	33.1	35.5	1,925	213	92	99	0.902
4x3 AWG	32.5	35.1	37.5	2,243	225	108	116	0.715
4x2 AWG	34.5	36.8	39.5	2,557	237	122	131	0.568
4x1 AWG	39.5	42.2	45	3,448	270	143	153	0.412
4x1/0 AWG	42.5	45.4	48.5	3,951	291	164	176	0.363
4x2/0 AWG	45.5	48.7	52	4,771	312	188	201	0.284
4x3/0 AWG	51.5	54.8	58.5	6,084	351	218	234	0.206
4x4/0 AWG	54.5	58	61.5	7,042	369	252	270	0.171
4x262 kcmil	59	62.8	66.5	8,364	399	294	315	0.148
4x313 kcmil	62.5	66	70	9,463	420	321	344	0.123
4x373 kcmil	66	69.9	74	10,907	444	361	387	0.103
4x444 kcmil	72	76.1	80.5	12,976	483	411	440	0.086
4x535 kcmil	80	84.6	89.5	15,729	537	443	475	0.072
4x597 kcmil	83	87.6	92.5	17,168	555	470	478	0.07
4x646 kcmil	85.5	90.4	95.5	18,590	573	516	553	0.06
5x18 AWG	14.5	15.8	17.5	366	105	10	10	20.384
5x16 AWG	15	16.3	18	394	108	13	14	15.778
5x14 AWG	16	17.3	19	462	114	20	22	9.996
5x12 AWG	17	18.6	20	562	120	25	26	6.292
5x10 AWG	20	21.5	23.5	792	141	33	35	3.538
5x8 AWG	24.5	26.6	28.5	1,148	171	42	45	2.46
5x6 AWG	28.5	30.8	33	1,587	198	56	60	1.539
5x5 AWG	31	33.5	36	2,019	216	66	70	1.137
5x4 AWG	33.5	35.7	38	2,289	228	74	79	0.902
5x3 AWG	35.5	37.9	40.5	2,688	243	86	93	0.715
5x2 AWG	37.5	39.8	42.5	3,063	255	98	105	0.568
5x1 AWG	44.5	47.4	50.5	4,307	303	114	122	0.412
5x1/0 AWG	46	49.3	52.5	4,768	315	131	141	0.363
5x2/0 AWG	51	54.6	58	5,929	348	150	161	0.284
5x3/0 AWG	56	59.6	63.5	7,374	381	174	187	0.206
5x4/0 AWG	59.5	63.2	67	8,581	402	202	216	0.171
5x262 kcmil	64.5	68.6	73	10,190	438	235	252	0.148
5x313 kcmil	70	73.9	78.5	11,827	471	257	275	0.123
5x373 kcmil	74	78.3	83	13,639	498	289	310	0.103
5x444 kcmil	80.5	85.1	90	16,172	540	329	352	0.086
5x535 kcmil	87.5	92.5	98	19,247	588	354	380	0.072

Cross-Section	Outer Sheath Diameter			Approx. Cable Weight (kg/km)	Min. Bending Radius (mm)	Current Carrying Capacity 100℃ (A)	Current Carrying Capacity 110℃ (A)	Max. Electrical Resistance at 20℃ (ohm/km)
Cross-Section	Min. (mm)	Nom. (mm)	Max. (mm)	Approx. Cable Weight (kg/km)	Min. Bending Radius (mm)	Current Carrying Capacity 100℃ (A)	Current Carrying Capacity 110℃ (A)	Max. Electrical Resistance at 20℃ (ohm/km)
1x16 AWG	3,7	4,0	4,5	27	18	23	25	15,778
1x14 AWG	4,0	4,3	5,0	35	20	37	40	9,996
1x12 AWG	4,5	4,8	5,5	48	22	45	48	6,292
1x10 AWG	5,2	5,6	6,5	75	26	58	62	3,538
1x8 AWG	6,4	6,8	8,0	107	32	72	77	2,46
1x6 AWG	7,4	7,9	9,0	160	36	96	103	1,539
1x5 AWG	8,4	8,9	10,0	223	40	109	117	1,137
1x4 AWG	9,2	9,7	11,0	259	44	128	137	0,902
1x3 AWG	10,0	10,5	11,5	318	46	146	156	0,715
1x2 AWG	10,5	11,2	12,5	376	50	169	181	0,568
1x1 AWG	12,5	13,3	14,5	536	58	194	208	0,412
1x1/0 AWG	13,0	14,0	15,5	605	62	227	243	0,363
1x2/0 AWG	14,5	15,4	17,0	762	68	262	281	0,284
1x3/0 AWG	16,5	17,3	19,0	989	76	300	321	0,206
1x4/0 AWG	17,5	18,6	20,0	1.179	80	351	376	0,171
1x262 kcmil	19,5	20,6	22,5	1.431	90	407	436	0,148
1x313 kcmil	21,0	21,9	23,5	1.652	94	455	487	0,123
1x373 kcmil	22,5	23,6	25,5	1.947	153	516	553	0,103
1x444 kcmil	24,0	25,4	27,5	2.313	165	588	630	0,086
1x535 kcmil	27,0	28,3	30,5	2.805	183	630	676	0,072
1x597 kcmil	28,0	29,5	31,5	3.099	189	670	678	0,07
1x646 kcmil	29,5	30,7	33,0	3.392	198	731	783	0,06
1x777 kcmil	31,5	33,1	35,5	4.026	213	822	881	0,05
1x1111 kcmil	38,0	39,8	42,5	5.798	255	1.025	1.098	0,035

Cross-Section	Outer Sheath Diameter			Approx. Cable Weight (kg/km)	Min. Bending Radius (mm)	Current Carrying Capacity 100℃ (A)	Current Carrying Capacity 110℃ (A)	Max. Electrical Resistance at 20℃ (ohm/km)
Cross-Section	Min. (mm)	Nom. (mm)	Max. (mm)	Approx. Cable Weight (kg/km)	Min. Bending Radius (mm)	Current Carrying Capacity 100℃ (A)	Current Carrying Capacity 110℃ (A)	Max. Electrical Resistance at 20℃ (ohm/km)
1x16 AWG	7,4	8,1	9,0	125	54	23	25	15,778
1x14 AWG	7,8	8,5	9,5	141	57	37	40	9,996
1x12 AWG	8,2	8,9	10,0	161	60	45	48	6,292
1x10 AWG	9,0	9,7	11,0	200	66	58	62	3,538
1x8 AWG	10,0	11,0	12,0	251	72	72	77	2,46
1x6 AWG	11,0	12,0	13,0	319	78	96	103	1,539
1x5 AWG	12,0	13,0	14,5	402	87	109	117	1,137
1x4 AWG	13,0	13,8	15,0	448	90	128	137	0,902
1x3 AWG	13,5	14,6	16,0	520	96	146	156	0,715
1x2 AWG	15,0	16,2	17,5	622	105	169	181	0,568
1x1 AWG	17,0	18,3	20,0	818	120	194	208	0,412
1x1/0 AWG	18,0	19,1	20,5	899	123	227	243	0,363
1x2/0 AWG	19,0	20,4	22,0	1.083	132	262	281	0,284
1x3/0 AWG	21,0	22,3	24,0	1.343	144	300	321	0,206
1x4/0 AWG	23,0	24,7	26,5	1.616	159	351	376	0,171
1x262 kcmil	25,0	26,7	28,5	1.906	171	407	436	0,148
1x313 kcmil	26,5	28,1	30,0	2.154	180	455	487	0,123
1x373 kcmil	28,0	29,7	32,0	2.481	192	516	553	0,103
1x444 kcmil	29,5	31,5	34,0	2.884	204	588	630	0,086
1x535 kcmil	32,5	34,4	37,0	3.432	222	630	676	0,072
1x597 kcmil	33,5	35,6	38,0	3.752	228	670	678	0,07
1x646 kcmil	35,0	36,8	39,5	4.068	237	731	783	0,06
1x777 kcmil	37,0	39,2	42,0	4.76	252	822	881	0,05
1x1111 kcmil	45,0	47,4	50,5	6.798	303	1.025	1.098	0,035

Cross-Section	Outer Sheath Diameter			Approx. Cable Weight (kg/km)	Min. Bending Radius (mm)	Current Carrying Capacity 100℃ (A)	Current Carrying Capacity 110℃ (A)	Max. Electrical Resistance at 20℃ (ohm/km)
Cross-Section	Min. (mm)	Nom. (mm)	Max. (mm)	Approx. Cable Weight (kg/km)	Min. Bending Radius (mm)	Current Carrying Capacity 100℃ (A)	Current Carrying Capacity 110℃ (A)	Max. Electrical Resistance at 20℃ (ohm/km)
1x16 AWG	7,6	8,2	9,5	113	57	23	25	15,778
1x14 AWG	7,8	8,6	9,5	124	57	37	40	9,996
1x12 AWG	8,4	9	10	154	60	45	48	6,292
1x10 AWG	9	9,8	11	186	66	58	62	3,538
1x8 AWG	10	11,1	12,5	241	75	72	77	2,46
1x6 AWG	11	12,1	13,5	315	81	96	103	1,539
1x5 AWG	12	13,1	14,5	384	87	109	117	1,137
1x4 AWG	13,5	14,8	16	463	96	128	137	0,902
1x3 AWG	14,5	15,6	17	532	102	146	156	0,715
1x2 AWG	15	16,3	18	604	108	169	181	0,568
1x1 AWG	17	18,5	20	799	120	194	208	0,412
1x1/0 AWG	18	19,2	21	881	126	227	243	0,363
1x2/0 AWG	19	20,5	22	1.066	132	262	281	0,284
1x3/0 AWG	22	23,5	25,5	1.377	153	300	321	0,206
1x4/0 AWG	23,5	24,8	26,5	1.593	159	351	376	0,171
1x262 kcmil	25,5	27,1	29	1.893	174	407	436	0,148
1x313 kcmil	26,5	28,5	30,5	2.145	183	455	487	0,123
1x373 kcmil	28,5	30,1	32	2.468	192	516	553	0,103
1x444 kcmil	30	31,9	34	2.879	204	588	630	0,086
1x535 kcmil	33	34,8	37	3.426	222	630	676	0,072
1x597 kcmil	34	36	38,5	3.742	231	670	678	0,07
1x646 kcmil	35	37,2	39,5	4.057	237	731	783	0,06
1x777 kcmil	37,5	39,6	42,5	4.743	255	822	881	0,05
1x1111 kcmil	45,5	47,8	51	6.803	306	1.025	1.098	0,035

Why Huadong Cable

Our vision is to become an internationally renowned brand in the field of cables; customer satisfaction, employee promotion, and corporate development are our service tenets; high standards, globalization, and building an international brand are our business philosophy.

About HuaDong

Henan Huadong Cable Co., Ltd. was founded in 1999 which is a joint-stock national high-tech enterprise integrating scientific research, industry and trade. Huadong Cable is deeply integrated into the "Belt and Road" construction and exports to more than 130 countries around the world, including Europe, South America, North America, the Middle East, Africa, Asia, and Oceania.

HuaDong Technology

Huadong Cable focuses on technology research and development which has 60 professional personnel with senior professional titles, and has more than 100 invention and utility model patents. Huadong has a team of experienced technical engineers to ensure the quality of cables.

Main Products

Our main products : marine cables, power cables, overhead cables, fireproof cables, low-smoke halogen-free cables, rubber cables, high temperature resistant cables, instrument and control cables, solar cables and other products.
