FMGCH Cable

FMGCH Cable Description

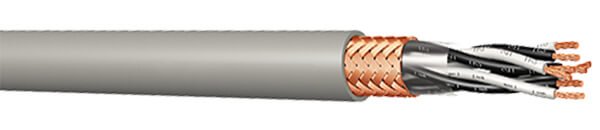

The FMGCH cable features a twisted-pair construction to ensure proper transmission of high-frequency signals, while its overall shielding minimizes environmental electromagnetic interference. Its halogen-free, low-smoke outer sheath ensures that no corrosive or low-toxic gases are produced during combustion. It is primarily used for fixed installations, control rooms, and open decks on ships.

FMGCH Cable Construction

Conductor
Class 2 stranded annealed copper wire (Class 5 and/or tinned on request)
Insulation
HF HEPR rubber compound
Lay up
Cores laid up in pair, pairs laid up concentrically
Separator
Separating foil below screen
Screen
Electrolytic copper braided screen (90% coverage)
Outer Sheath
Halogen-free, flame retardant, UV resistant, thermoplastic polyolefin based compound (HM4 / SHF1)

FMGCH Cable Characteristics

Rated Voltage
60/250 V
Working Temperature
-40°C / + 90°C
Min. Bending Radius
8 x (Overall Diameter)

FMGCH Cable Specifications

CROSS SECTION (mm²)	OVERALL DIAMETER (mm)	APPX. WEIGHT (kg / km)	COPPER WEIGHT (kg / km)
1 x 2 x 0.50	7.6	74	35.6
1 x 4 x 0.50	8.4	105	50.2
2 x 2 x 0.50	9.6	103	50.2
3 x 2 x 0.50	11	146	67.8
4 x 2 x 0.50	12.5	178	85.4
5 x 2 x 0.50	13.7	211	103
6 x 2 x 0.50	14.8	239	119.6
7 x 2 x 0.50	14.8	253	129.2
8 x 2 x 0.50	15.8	285	138.8
10 x 2 x 0.50	17.9	359	188
12 x 2 x 0.50	18.8	407	212.2
14 x 2 x 0.50	20	453	231.4
16 x 2 x 0.50	21	497	262.6
18 x 2 x 0.50	22.2	551	281.8
19 x 2 x 0.50	22.7	573	309.4
20 x 2 x 0.50	23.2	595	319
24 x 2 x 0.50	25.1	691	357.4
30 x 2 x 0.50	27.9	861	433
37 x 2 x 0.50	30.4	1006	564.2
44 x 2 x 0.50	32.6	1146	693.4
60 x 2 x 0.50	37.6	1547	913
1 x 2 x 0.75	8.2	87	40.4
1 x 4 x 0.75	9.2	125	59.8
2 x 2 x 0.75	10.6	135	67.8
3 x 2 x 0.75	12.3	185	95.2
4 x 2 x 0.75	13.7	217	112.6
5 x 2 x 0.75	15.1	259	134
6 x 2 x 0.75	16.3	294	156.4
7 x 2 x 0.75	16.3	315	171.8
8 x 2 x 0.75	17.4	355	187.2
10 x 2 x 0.75	19.8	448	253
12 x 2 x 0.75	20.9	512	281.8
14 x 2 x 0.75	21.2	573	322.6
16 x 2 x 0.75	23.4	632	351.4
18 x 2 x 0.75	24.7	701	386.2
19 x 2 x 0.75	25.2	731	400.6
20 x 2 x 0.75	25.8	761	433
24 x 2 x 0.75	28	888	490.6
28 x 2 x 0.75	30.2	1051	574.2
37 x 2 x 0.75	33.9	1305	767.8
1 x 2 x 1	8.4	93	50.2
1 x 4 x 1	9	108	69.4
2 x 2 x 1	9.7	134	75.4
3 x 2 x 1	12.6	196	104.6
4 x 2 x 1	14.1	238	138.8
5 x 2 x 1	15.5	234	161
6 x 2 x 1	16.8	325	193.2
7 x 2 x 1	16.8	325	212.4
8 x 2 x 1	18	396	231.6
10 x 2 x 1	20.4	497	313
12 x 2 x 1	21.5	570	351.4
14 x 2 x 1	22.9	640	400.8
16 x 2 x 1	24.1	707	439.2
18 x 2 x 1	25.5	786	490.6
19 x 2 x 1	26.1	820	509.8
20 x 2 x 1	26.7	854	547
24 x 2 x 1	28.9	998	623.8
28 x 2 x 1	31.2	1178	707.6
30 x 2 x 1	32.2	1245	757
1 x 2 x 1.5	9.5	120	59.8
1 x 4 x 1.5	10.7	170	98.6
2 x 2 x 1.5	12.5	164	104.6
3 x 2 x 1.5	12.7	233	141.4
4 x 2 x 1.5	15.5	303	170.2
5 x 2 x 1.5	17.1	364	219
6 x 2 x 1.5	18.7	426	247.8
7 x 2 x 1.5	18.7	462	276.6
12 x 2 x 1.5	23.8	742	460.6
1 x 2 x 2.5	10.6	153	95
12 x 2 x 2.5	26.5	1001	785
1 x 3 x 0.50	8	86	45.4
1 x 3 x 0.75	8.3	110	56.6
2 x 3 x 0.50	9.9	131	63.8
3 x 3 x 0.50	12.2	182	98.2
4 x 3 x 0.50	13.1	214	112.6
5 x 3 x 0.50	13.9	250	142
6 x 3 x 0.50	14.8	283	164.4
6 x 3 x 0.75	19.5	410	209.6
7 x 3 x 0.50	14.8	304	178.8
8 x 3 x 0.50	15.8	344	193.2
10 x 3 x 0.50	18.5	440	265
12 x 3 x 0.50	19.8	508	293.8
14 x 3 x 0.50	21	569	346.6
16 x 3 x 0.50	22.1	629	379.4
18 x 3 x 0.50	23.4	700	421.2
19 x 3 x 0.50	23.9	729	454.6
20 x 3 x 0.50	24.5	706	469
24 x 3 x 0.50	26.5	887	530.6
30 x 3 x 0.50	29.4	1105	630
37 x 3 x 0.50	32.1	1305	819.8
