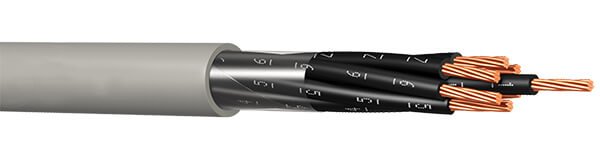

FM2XH Multi Core Cable

FM2XH Multi Core Cable Description

FM2XH cables feature stranded copper conductors, cross-linked polyethylene (XLPE) insulation, and a halogen-free, flame-retardant thermoplastic polyolefin (SHF1) sheath. Specifically designed for marine and offshore applications, it limits the generation of smoke and toxic gases in the event of a fire.

FM2XH Multi Core Cable Construction

Conductor
Class 2 stranded annealed copper wire (Class 5 and / or tinned on request)
Insulation
XLPE (Cross linked polyethylene compound)
Inner Covering
Separating foil
Outer sheath
Halogen-free, flame retardant, UV resistant, polyolefin based compound (SHF 1)

FM2XH Multi Core Cable Characteristics

Rated Voltage
150 / 250 V (300)
Working Temperature
-40°C / +90°C
Min. Bending Radius
For cables D ≤ 25 mm 4xD
For cables D > 25 mm 6xD

FM2XH Multi Core Cable Specifications

Cross Section (mm²)	Overall Diameter (mm)	Approximate Weight (kg / km)	Min.Bending Radius Fixed Installed (mm)	Max Resistance of Conductors at 20℃ (ohm / km)	Current Carrying Capacity at 45℃ (A)
2x0,5	5,5	36	22	40,4	11
3x0,5	5,8	44	24	40,4	9
4x0,5	6,3	53	26	40,4	9
5x0,5	6,8	63	28	40,4	7
7x0,5	7,2	76	29	40,4	7
10x0,5	9,1	108	37	40,4	6
12x0,5	9,4	123	38	40,4	6
16x0,5	10,4	155	42	40,4	5
19x0,5	10,8	175	44	40,4	5
24x0,5	12,7	222	51	40,4	5
30x0,5	13,4	265	54	40,4	4
36x0,5	14,6	315	59	40,4	4
2x0,75	6,3	47	26	26,0	13
3x0,75	6,7	60	27	26,0	11
4x0,75	7,2	70	29	26,0	11
5x0,75	7,9	86	32	26,0	9
7x0,75	8,6	110	35	26,0	8
10x0,75	10,7	150	43	26,0	7
12x0,75	11,3	180	46	26,0	7
16x0,75	12,5	225	75	26,0	6
19x0,75	13,0	255	52	26,0	6
24x0,75	15,3	324	62	26,0	6
30x0,75	16,2	390	65	26,0	5
36x0,75	17,6	455	71	26,0	5
2x1	6,6	54	27	19,2	16
3x1	7,0	70	28	19,2	13
4x1	7,6	82	31	19,2	13
5x1	8,5	104	34	19,2	11
7x1	9,1	128	37	19,2	10
10x1	11,5	182	46	19,2	9
12x1	11,9	208	48	19,2	8
16x1	13,1	265	53	19,2	8
19x1	14,0	310	56	19,2	7
24x1	16,2	384	65	19,2	7
30x1	17,3	465	70	19,2	6
36x1	17,3	550	75	19,2	6
2x1,5	7,7	72	31	12,8	20
3x1,5	8,1	90	33	12,8	17
4x1,5	9,0	118	36	12,8	17
5x1,5	9,8	142	40	12,8	14
7x1,5	10,6	180	43	12,8	12
10x1,5	13,6	260	55	12,8	11
12x1,5	14,2	304	57	12,8	11
16x1,5	15,8	390	64	12,8	10
19x1,5	16,7	448	67	12,8	9
24x1,5	19,7	570	79	12,8	9
30x1,5	20,8	690	84	12,8	8
36x1,5	22,6	820	91	12,8	7
2x2,5	8,8	100	36	7,86	27
3x2,5	9,3	132	38	7,86	22
4x2,5	10,1	164	41	7,86	22
5x2,5	11,3	208	46	7,86	18
7x2,5	12,2	265	49	7,86	17
10x2,5	15,6	378	63	7,86	15
12x2,5	16,1	440	65	7,86	14
16x2,5	18,1	575	73	7,86	13
19x2,5	19,0	655	76	7,86	12
24x2,5	22,6	848	91	7,86	11
30x2,5	23,9	1020	120	7,86	10
36x2,5	26,0	1225	156	7,86	10
