MGCH Cable

MGCH Cable Description

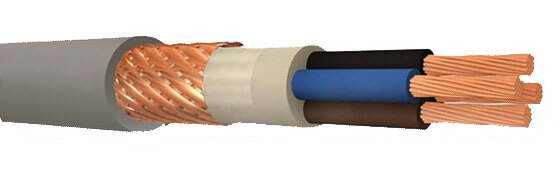

MGCH cables use HEPR insulation, a copper braided shield (for EMI protection), and a polyolefin sheath, making them suitable for humid, dry, or oily environments. Due to their flame-retardant properties, the portion in direct contact with fire will burn, but the flame will not spread along the cable, effectively preventing the spread of fire.

MGCH Cable Construction

Conductor
Class 2 stranded, annealed copper wire (Class 5 and/or tinned on request)
Insulation
HF HEPR compound
Bedding
Halogen free compound
Screen
Electrolytic copper braided screen (90% coverage)
Outer Sheath
Halogen-free, flame retardant, UV resistant, thermoplastic polyolefin based compound (HM4 / SHF1)

MGCH Cable Characteristics

Rated Voltage
0,6/1 kV
Working Temperature
-40°C / + 90°C
Min. Bending Radius
8 x (Overall Diameter)

MGCH Cable Specifications

CROSS SECTION (mm²)	OVERALL DIAMETER (mm)	APPX. WEIGHT (kg / km)	COPPER WEIGHT (kg / km)
1 x 1	5.9	55	30.6
1 x 1.5	6.2	64	35.4
1 x 2.5	6.6	77	45
1 x 4	7.2	99	64.4
1 x 6	7.7	123	83.6
1 x 10	8.8	174	127
1 x 16	9.8	237	189.6
1 x 25	11.7	350	286
1 x 35	12.8	448	390
1 x 50	15	628	566
1 x 70	17.2	859	776
1 x 95	19	1116	1033
1 x 120	20.9	1384	1290
1 x 150	23	1686	1578
1 x 185	25.3	2068	1931
1 x 240	28.2	2667	2485
1 x 300	31	3282	3087
1 x 400	34.3	4118	4047
1 x 1000	53.5	10647	10150
2 x 1	10.8	182	60.2
2 x 1.5	11.6	213	72.8
2 x 2.5	12.4	253	96
2 x 4	13.6	317	134.8
2 x 6	15.2	424	207.2
2 x 10	17	562	303
2 x 16	19.2	754	436.2
2 x 25	22.8	1086	627
2 x 50	29.8	1895	1158
2 x 70	33.6	2500	1571
3 x 1	11.3	201	74.8
3 x 1.5	12.1	237	95.2
3 x 2.5	13	287	132
3 x 4	14.2	362	175.2
3 x 6	15.9	490	287.8
3 x 10	18.1	676	403
3 x 16	20.2	907	595.8
3 x 25	24.3	1337	893
3 x 35	26.8	1700	1210
3 x 50	30.5	2241	1670
3 x 70	35.6	3113	2274
3 x 95	40	4128	3155
3 x 120	44.1	5100	3916
3 x 150	48.8	6241	4832
3 x 185	54.1	7692	5874
3 x 240	60.7	9915	7529
3 x 300	67.9	12473	9350
3 x 400	76.3	16208	12330
4 x 1	12.2	234	88.4
4 x 1.5	12.9	272	116.6
4 x 2.5	13.9	334	155
4 x 4	15.9	472	266.6
4 x 6	17.1	583	343.4
4 x 10	19.5	813	515
4 x 16	22.1	1114	764.4
4 x 25	26.7	1655	1157
4 x 35	29.5	2118	1541
4 x 50	33.6	2800	2173
4 x 70	39.6	3989	3087
4 x 95	44.4	5214	4097
4 x 120	48.9	6445	5106
4 x 150	54.1	7889	6258
4 x 185	60.3	9780	7702
4 x 240	67.4	12584	9881
5 x 1	13	260	103
5 x 1.5	13.8	305	127
5 x 2.5	15.5	418	207
5 x 4	17.1	537	297
5 x 6	18.7	680	410
5 x 10	21.3	951	619
5 x 16	24.3	1321	925
5 x 25	29.3	1960	1383
6 x 1	13.7	290	115.6
6 x 1.5	15.2	384	179.4
6 x 2.5	16.4	471	256
7 x 1	13.7	297	125.2
7 x 1.5	15.2	395	193.8
7 x 2.5	16.4	490	280
8 x 1	13.9	286	169.8
8 x 1.5	15	349	208.2
8 x 2.5	16.6	456	304
9 x 1	14.8	319	179.4
9 x 1.5	15.9	388	222.6
9 x 2.5	17.7	510	328
10 x 0.75	13.3	211	128
10 x 1	15.1	287	185
10 x 1.5	16.3	353	251
10 x 2.5	18.1	471	347
12 x 1	15.6	312	204.2
12 x 1.5	17	397	279.8
12 x 2.5	18.9	535	412
14 x 1	16.3	341	241.4
14 x 1.5	17.8	437	308.6
14 x 2.5	19.7	606	460
16 x 1	17.2	395	260.6
16 x 1.5	18.6	679	354.4
16 x 2.5	20.9	679	508
18 x 1	18	427	279.8
18 x 1.5	19.7	547	383.2
18 x 2.5	21.9	743	573
19 x 1	18	437	289.4
19 x 1.5	19.7	562	397.6
19 x 2.5	21.9	766	598
20 x 1	18	448	299
20 x 1.5	19.7	578	412
20 x 2.5	21.9	791	622
21 x 1	18.9	473	325.6
21 x 1.5	20.7	610	426.4
21 x 2.5	23.1	835	646
24 x 1	20.9	542	354.4
24 x 1.5	22.9	699	487.6
24 x 2.5	25.5	955	736
25 x 1	20.9	552	364
25 x 1.5	22.9	713	502
25 x 2.5	25.5	978	760
27 x 1	21.4	580	401.2
27 x 1.5	23.4	752	548.8
27 x 2.5	26.1	1035	808
30 x 1	22.3	633	421
30 x 1.5	24.4	822	592
30 x 2.5	27.1	1132	906
32 x 1	23	665	467.2
32 x 1.5	25.2	865	620.8
32 x 2.5	28.1	1196	954
36 x 1	23.8	719	505.6
36 x 1.5	26.1	940	678.4
36 x 2.5	29.1	1307	1050
37 x 1	23.8	729	515.2
37 x 1.5	26.1	955	692.8
37 x 2.5	29.1	1330	1074
40 x 1	24.9	788	544
40 x 1.5	27.3	1033	762
40 x 2.5	30.5	1441	1173
42 x 1	25.9	829	563.2
42 x 1.5	28.4	1083	790.8
42 x 2.5	31.6	1508	1221
48 x 1	27.4	923	646.8
48 x 1.5	30	1212	904.2
48 x 2.5	33.5	1696	1365
60 x 1	29.8	1098	762
60 x 1.5	32.7	1453	1077
