MYY Cable

MYY Cable Description

MYY cables have high resistance to mechanical loads and can operate reliably for extended periods in wet or oily marine environments. They are commonly used in lighting, power supply, and control systems for ships, yachts, and vessels.

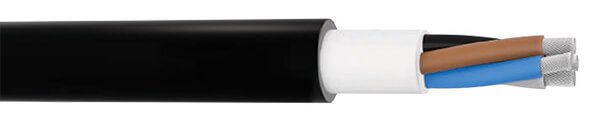

MYY Cable Construction

Conductor
Tinned or bare annealed stranded copper wires
Insulation
PVC compound
Bedding
PVC compound (for multicore cables)
Outer Sheath
PVC compound type ST2

MYY Cable Characteristics

Rated Voltage
0,6/1 kV
Operating Temperature
-15°C to +70°C
Bending Radius
For D≤25 mm: 4 x D
For D>25 mm: 6 x D

MYY Cable Specifications

Cross- Section (mm²)	Outer Sheath Diameter			Approx. Cable Weight (kg/km)	Min. Bending Radius (mm)	Current Carrying Capacity (A)	Max, Electrical Resistance at 20℃ (ohm/km)
Cross- Section (mm²)	Min. (mm)	Nom. (mm)	Max. (mm)	Approx. Cable Weight (kg/km)	Min. Bending Radius (mm)	Current Carrying Capacity (A)	Max, Electrical Resistance at 20℃ (ohm/km)
1x1	4,7	5,2	6,0	39	24	11	20
1x1,5	4,8	5,5	6,5	45	26	14	13,7
1x2,5	5,2	5,9	7,0	57	28	20	8,21
1x4	6,2	6,8	8,0	80	32	28	5,09
1x6	6,6	7,4	8,5	103	34	36	3,39
1x10	7,6	8,4	9,5	149	38	50	1,95
1x16	8,8	9,6	10,5	212	42	67	1,24
1x25	11,0	11,9	13,0	324	52	89	0,795
1x35	12,0	13,2	14,5	424	58	110	0,565
1x50	14,0	15,4	17,0	596	68	138	0,393
1x70	16,0	17,4	19,0	803	76	170	0,277
1x95	18,0	19,5	21,0	1.04	84	206	0,21
1x120	20,0	21,4	23,0	1.298	92	239	0,164
1x150	22,0	23,8	25,5	1.601	153	274	0,132
1x185	24,5	26,1	28,0	1.945	168	313	0,108
1x240	27,5	29,5	31,5	2.541	189	368	0,0817
1x300	30,5	32,7	35,0	3.148	210	424	0,0654
2x1	9,2	10,5	11,5	138	46	9	20
2x1,5	9,5	11,0	12,5	158	50	12	13,7
2x2,5	10,5	11,8	13,0	193	52	17	8,21
2x4	12,0	13,9	15,5	277	62	24	5,09
2x6	13,5	15,3	17,0	352	68	31	3,39
2x10	15,5	17,2	19,0	486	76	43	1,95
2x16	17,5	19,4	21,0	662	84	57	1,24
2x25	22,0	24,1	26,0	1.017	156	76	0,795
3x1	9,6	10,9	12,0	156	48	8	20
3x1,5	10,0	11,5	13,0	180	52	10	13,7
3x2,5	11,0	12,6	14,0	230	56	14	8,21
3x4	13,0	14,6	16,0	324	64	19	5,09
3x6	14,5	16,1	17,5	418	70	25	3,39
3x10	16,5	18,4	20,0	597	80	35	1,95
3x16	19,0	20,7	22,5	824	90	47	1,24
3x25	23,5	25,5	27,5	1.25	165	62	0,795
3x35	26,5	28,6	31,0	1.649	186	77	0,565
3x50	31,0	33,6	36,0	2.318	216	96	0,393
3x70	35,0	37,8	40,5	3.084	243	119	0,277
3x95	40,0	42,8	45,5	4.016	273	144	0,21
3x120	44,0	47,2	50,5	4.996	303	167	0,164
4x1	10,0	11,7	13,0	182	52	8	20
4x1,5	11,0	12,6	14,0	219	56	10	13,7
4x2,5	12,0	13,5	15,0	274	60	14	8,21
4x4	14,0	16,1	17,5	399	70	19	5,09
4x6	15,5	17,4	19,0	507	76	25	3,39
4x10	18,0	20,0	21,5	732	86	35	1,95
4x16	20,5	22,6	24,5	1.018	98	47	1,24
4x25	25,5	28,1	30,5	1.566	183	62	0,795
4x35	29,0	31,6	34,0	2.069	204	77	0,565
4x50	34,5	37,3	40,0	2.931	240	96	0,393
4x70	39,0	41,8	44,5	3.886	267	119	0,277
4x95	44,5	47,9	51,0	5.141	306	144	0,21
4x120	49,0	52,3	55,5	6.334	333	167	0,164
5x1	11,0	12,8	14,0	219	56	6	20
5x1,5	12,0	13,5	15,0	256	60	8	13,7
5x2,5	13,0	14,6	16,0	323	64	11	8,21
5x4	15,5	17,4	19,0	474	76	15	5,09
5x6	17,0	19,2	21,0	616	84	20	3,39
5x10	20,0	22,0	24,0	892	96	28	1,95
5x16	22,5	24,9	27,0	1.244	162	38	1,24
5x25	28,5	31,0	33,5	1.915	201	50	0,795
5x35	32,5	35,2	38,0	2.571	228	62	0,565
5x50	38,0	41,1	44,0	3.588	264	77	0,393
5x70	43,5	46,7	50,0	4.838	300	95	0,277
5x95	49,5	52,9	56,5	6.298	339	115	0,21
5x120	54,5	58,4	62,0	7.862	372	133	0,164
6x1	12,0	13,7	15,0	251	60	6	20
7x1	12,0	13,7	15,0	260	60	5	20
8x1	14,0	15,8	17,5	332	70	5	20
9x1	14,0	15,8	17,5	332	70	5	20
10x1	15,0	16,9	18,5	376	74	5	20
12x1	15,5	17,4	19,0	404	76	5	20
14x1	16,5	18,4	20,0	459	80	5	20
16x1	17,0	19,3	21,0	508	84	5	20
18x1	18,0	20,2	22,0	560	88	5	20
19x1	18,0	20,2	22,0	568	88	5	20
20x1	19,0	21,3	23,0	625	92	5	20
24x1	21,0	23,6	25,5	737	153	5	20
6x1,5	12,5	14,5	16,0	296	64	8	13,7
7x1,5	12,5	14,5	16,0	307	64	7	13,7
8x1,5	14,5	16,7	18,5	392	74	7	13,7
9x1,5	14,5	16,7	18,5	394	74	7	13,7
10x1,5	16,0	18,2	20,0	455	80	7	13,7
12x1,5	16,5	18,7	20,5	492	82	7	13,7
14x1,5	17,5	19,6	21,5	549	86	7	13,7
16x1,5	18,5	20,7	22,5	620	90	7	13,7
18x1,5	19,5	21,7	23,5	685	94	7	13,7
19x1,5	19,5	21,7	23,5	696	94	7	13,7
20x1,5	20,5	22,7	24,5	752	98	7	13,7
24x1,5	22,5	25,2	27,0	888	162	7	13,7
6x2,5	14,0	15,9	17,5	384	70	11	8,21
7x2,5	14,0	15,9	17,5	401	70	9	8,21
8x2,5	16,5	18,4	20,0	509	80	9	8,21
9x2,5	16,5	18,4	20,0	514	80	9	8,21
10x2,5	17,5	19,8	21,5	583	86	9	8,21
12x2,5	18,5	20,6	22,5	646	90	9	8,21
14x2,5	19,5	21,6	23,5	724	94	9	8,21
16x2,5	20,5	22,6	24,5	807	98	9	8,21
18x2,5	21,5	24,0	26,0	907	156	9	8,21
19x2,5	21,5	24,0	26,0	924	156	9	8,21
20x2,5	22,5	25,1	27,0	998	162	9	8,21
24x2,5	25	27,9	30,0	1.179	180	9	8,21
