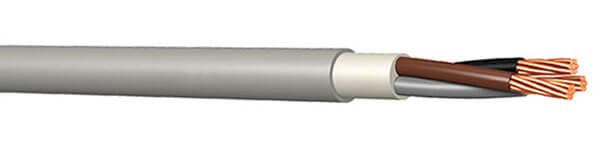

MGH Cable

MGH Cable Description

MGH cables feature stranded copper conductors, HEPR insulation, and a polyolefin sheath. They are oil-resistant, UV-resistant, and resistant to harsh environments, making them suitable for dry, humid, or oily environments. Due to their halogen-free, flame-retardant construction, they are ideal for areas requiring fire safety and are a preferred choice for passenger ships.

MGH Cable Construction

Conductor
Class 2 stranded annealed copper wire (Class 5 and/or tinned on request)
Insulation
HF HEPR compound
Bedding
Halogen-free compound
Outer Sheath
Flame retardant, halogen-free thermoplastic polyolefin compound (HM4 / SHF1)

MGH Cable Characteristics

Rated Voltage
0,6/1 kV
Working Temperature
-40°C / + 90°C
Min. Bending Radius
6 x D

MGH Cable Specifications

CROSS SECTION (mm²)	OVERALL DIAMETER (mm)	APPX. WEIGHT (kg / km)	COPPER WEIGHT (kg / km)
1 x 1	4.7	32	9.6
1 x 1.5	5	38	14.4
1 x 2.5	5.4	49	24
1 x 4	6	67	38.4
1 x 6	6.5	89	57.6
1 x 10	7.4	131	96
1 x 16	8.4	188	153.6
1 x 25	10.3	289	240
1 x 35	11.4	380	336
1 x 50	13.2	517	480
1 x 70	15.4	730	672
1 x 95	17.2	971	912
1 x 120	19.1	1223	1152
1 x 150	21.2	1507	1440
1 x 185	23.5	1869	1776
1 x 240	26.4	2443	2304
1 x 300	29.2	3035	2880
1 x 400	32.5	3842	3840
2 x 1	9.6	131	19.2
2 x 1.5	10.2	153	28.8
2 x 2.5	11	188	48
2 x 4	12.4	250	76.8
2 x 6	13.4	312	115.2
2 x 10	15.4	441	192
2 x 16	17.6	615	307.2
2 x 25	21.2	918	480
3 x 1	10.1	147	28.8
3 x 1.5	10.7	173	43.2
3 x 2.5	11.8	224	72
3 x 4	13	292	115.2
3 x 6	14.1	371	172.8
3 x 10	16.3	539	288
3 x 16	18.6	760	460.8
3 x 25	22.5	1146	720
3 x 35	25	1488	1008
3 x 50	28.7	1998	1440
3 x 70	33.8	2827	2016
3 x 95	37.8	3713	2736
3 x 120	41.9	4641	3456
3 x 150	46.8	5756	4320
3 x 185	52.1	7153	5328
3 x 240	58.7	9312	6912
4 x 1	10.8	170	38.4
4 x 1.5	11.7	210	57.6
4 x 2.5	12.7	266	96
4 x 4	14.1	353	153.6
4 x 6	15.5	461	230.4
4 x 10	17.9	672	384
4 x 16	20.5	952	614.4
4 x 25	24.9	1445	960
4 x 35	27.7	1884	1344
4 x 50	31.8	2530	1920
4 x 70	37.4	3579	2688
4 x 95	42.2	4751	3648
4 x 120	47.1	5986	4608
4 x 150	51.7	7298	5760
4 x 185	58.1	9157	7104
4 x 240	64.6	11782	9216
5 x 1	11.8	196	48
5 x 1.5	12.6	237	72
5 x 2.5	13.7	302	120
5 x 4	15.5	415	192
5 x 6	17.1	545	288
5 x 10	19.7	796	480
5 x 16	22.7	1142	768
5 x 25	27.5	1728	1200
6 x 1	12.5	222	57.6
6 x 1.5	13.4	271	86.4
6 x 2.5	14.6	348	144
7 x 1	12.5	230	67.2
7 x 1.5	13.4	283	100.8
7 x 2.5	14.6	367	168
8 x 1	12.3	210	76.8
8 x 1.5	13.6	275	115.2
8 x 2.5	15.2	377	192
9 x 1	13.2	239	86.4
9 x 1.5	14.5	312	129.6
9 x 2.5	16.3	429	216
10 x 0.75	13.1	209	72
10 x 1	13.5	235	96
10 x 1.5	14.9	309	144
10 x 2.5	16.7	429	240
12 x 1	14	265	115.2
12 x 1.5	15.4	351	172.8
12 x 2.5	17.3	490	288
14 x 1	14.9	305	134.4
14 x 1.5	16.2	395	201.6
14 x 2.5	18.3	562	336
16 x 1	15.6	340	153.6
16 x 1.5	17.2	452	230.4
16 x 2.5	19.3	633	384
18 x 1	16.4	376	172.8
18 x 1.5	18.1	501	259.2
18 x 2.5	20.3	703	432
19 x 1	16.4	383	182.4
19 x 1.5	18.1	512	273.6
19 x 2.5	20.3	722	456
20 x 1	16.4	406	192
20 x 1.5	18.1	543	288
20 x 2.5	20.3	765	480
21 x 1	17.5	455	201.6
21 x 1.5	19.1	595	302.4
21 x 2.5	21.5	837	504
24 x 1	19.3	488	230.4
24 x 1.5	21.3	652	345.6
24 x 2.5	23.9	917	576
25 x 1	19.3	502	240
25 x 1.5	21.3	670	360
25 x 2.5	23.9	945	600
27 x 1	20	541	259.2
27 x 1.5	22	721	388.8
27 x 2.5	24.5	1004	648
30 x 1	20.7	589	288
30 x 1.5	22.8	788	432
30 x 2.5	25.5	1112	720
32 x 1	21.4	628	307.2
32 x 1.5	23.6	840	460.8
32 x 2.5	26.5	1188	768
36 x 1	22.4	700	345.6
36 x 1.5	24.7	937	518.4
36 x 2.5	27.7	1325	864
37 x 1	22.4	708	355.2
37 x 1.5	24.7	949	532.8
37 x 2.5	27.7	1344	888
40 x 1	23.3	775	384
40 x 1.5	25.7	1039	576
40 x 2.5	28.9	1472	960
42 x 1	24.3	815	403.2
42 x 1.5	26.8	1092	604.8
42 x 2.5	30	1546	1008
48 x 1	25.8	912	460.8
48 x 1.5	28.4	1223	691.2
48 x 2.5	32.1	1751	1152
60 x 1	28.4	1108	576
60 x 1.5	31.5	1504	864
