MGCG Cable

MGCG Cable Description

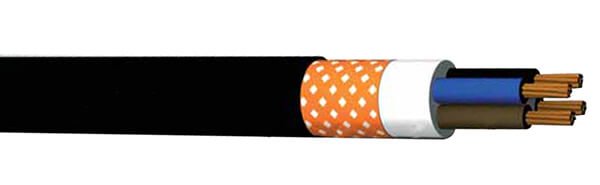

MGCG cables feature a full shielding layer to minimize electromagnetic interference. In addition to the braided mesh, the MGCG (EMC) type is also wrapped with a copper tape (100% coverage). Its flame-retardant properties prevent the spread of fire, thus protecting lives and equipment in a fire.

MGCG Cable Construction

Conductor
Class 2 stranded annealed copper wire (Class 5 and/or tinned on request)
Insulation
HF HEPR compound
Bedding
Rubber
Screen
Electrolytic copper braided screen (90% coverage)
Outer Sheath
Chloroprene-based black outer jacket (SE1)

MGCG Cable Characteristics

Rated Voltage
0,6/1 kV
Working Temperature
-40°C / + 90°C
Min. Bending Radius
8 x D

MGCG Cable Specifications

CROSS SECTION (mm²)	OVERALL DIAMETER (mm)	APPX. WEIGHT (kg / km)	COPPER WEIGHT (kg / km)
1 x 1	5.9	59	30.6
1 x 1.5	6.2	68	35.4
1 x 2.5	6.6	81	45
1 x 4	7.2	104	64.4
1 x 6	7.7	128	83.6
1 x 10	8.8	181	127
1 x 16	10	250	189.6
1 x 25	11.9	368	286
1 x 35	12.9	466	390
1 x 50	15.2	654	566
1 x 70	17.3	889	776
1 x 95	19.1	1149	1033
1 x 120	21	1454	1290
1 x 150	23.2	1740	1581
1 x 185	25.4	2131	1931
1 x 240	28.4	2747	2485
1 x 300	31.3	3420	3113
2 x 1	10.8	184	65.2
2 x 1.5	11.6	216	74.8
2 x 2.5	12.4	256	100
2 x 4	13.6	320	137.8
2 x 6	15.2	427	212.2
2 x 10	17	565	308
2 x 16	19.6	775	443.2
2 x 25	23.2	1112	635
3 x 1	11.3	206	74.8
3 x 1.5	12.1	242	95.2
3 x 2.5	13	293	133
3 x 4	14.2	369	176.2
3 x 6	15.9	498	288.8
3 x 10	18.1	686	404
3 x 16	20.6	936	596.8
3 x 25	24.7	1376	894
3 x 35	27	1733	1211
3 x 50	30.9	2292	1672
3 x 70	35.8	3160	2277
3 x 95	40.3	4189	3148
3 x 120	44.3	5161	3871
3 x 150	49.2	6335	4784
3 x 185	54.3	7789	5878
3 x 240	61.2	10065	7532
4 x 1	12.2	241	88.4
4 x 1.5	12.9	280	115.6
4 x 2.5	13.9	343	155
4 x 4	15.9	484	265.6
4 x 6	17.1	595	342.4
4 x 10	19.5	827	514
4 x 16	22.6	1159	763.4
4 x 25	27.1	1711	1155
4 x 35	29.8	2179	1539
4 x 50	34.1	2886	2170
4 x 70	39.9	4081	3082
4 x 95	44.6	5306	4093
4 x 120	49.1	6557	5058
4 x 150	54.6	8063	6287
4 x 185	60.5	9961	7697
4 x 240	67.9	12838	9876
5 x 1	13	271	103
5 x 1.5	13.8	318	128
5 x 2.5	15.5	433	208
5 x 4	17.1	557	298
5 x 6	18.7	702	411
5 x 10	21.3	979	621
5 x 16	24.8	1382	926
5 x 25	29.8	2047	1385
6 x 1	13.7	290	115.6
6 x 1.5	15.2	384	179.4
6 x 2.5	16.4	472	155
7 x 1	13.7	294	125.2
7 x 1.5	15.2	392	193.8
7 x 2.5	16.4	486	279
8 x 1	13.9	296	169.8
8 x 1.5	15	361	208.2
8 x 2.5	16.6	471	303
9 x 1	14.8	333	179.4
9 x 1.5	15.9	404	240.6
9 x 2.5	17.7	531	327
10 x 1	15.1	344	191
10 x 1.5	16.3	420	258
10 x 2.5	18.1	549	354
12 x 1	15.6	383	210.2
12 x 1.5	17	479	286.8
12 x 2.5	18.9	631	420
14 x 1	16.3	534	248.4
14 x 1.5	17.8	696	315.6
14 x 2.5	19.7	706	468
16 x 1	17.2	480	267.6
16 x 1.5	18.6	596	362.4
16 x 2.5	20.9	802	516
19 x 1	18	535	296.4
19 x 1.5	19.7	678	405.6
19 x 2.5	21.9	905	607
20 x 1	18	565	306
20 x 1.5	19.7	717	420
20 x 2.5	22.1	965	631
21 x 1	19.1	630	333.6
21 x 1.5	20.9	798	434.4
21 x 2.5	23.3	1062	655
24 x 1	21.1	672	362.4
24 x 1.5	231	855	496.6
24 x 2.5	25.7	1140	746
25 x 1	21.1	690	371
25 x 1.5	23.1	880	511
25 x 2.5	25.7	1170	770
27 x 1	21.6	730	410.2
27 x 1.5	23.6	930	539.8
27 x 2.5	26.3	1240	818
30 x 1	22.5	802	439
30 x 1.5	24.6	1022	602
30 x 2.5	27.3	1370	909
32 x 1	23.2	850	458.2
32 x 1.5	25.4	1080	630.8
32 x 2.5	28.3	1455	957
36 x 1	24	930	515.6
36 x 1.5	26.3	1190	688.4
36 x 2.5	29.3	1606	1062
37 x 1	24	938	525.2
37 x 1.5	26.3	1201	702.8
37 x 2.5	29.3	1622	1086
40 x 1	25.1	1065	554
40 x 1.5	27.5	1325	774
40 x 2.5	30.7	1790	1187
42 x 1	26.1	1085	573.2
42 x 1.5	28.6	1388	802.8
42 x 2.5	31.8	1873	1235
48 x 1	27.6	1195	658.8
48 x 1.5	30.2	1535	889.2
48 x 2.5	33.7	2075	1379
60 x 1	30	1450	774
60 x 1.5	33	1870	1091
