ARE4H1R Cable

ARE4H1R Cable Description

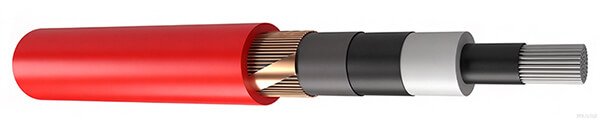

The ARE4H1R cable features an aluminum conductor, cross-linked polyethylene (XLPE) insulation, and a polyvinyl chloride (PVC) outer sheath. Its shielding consists of copper wires and copper tapes, with a semi-conductive water-blocking tape applied underneath. It is suitable for installation in underground ducts, conduits, or in open-air environments. It is frequently used in wind farms and wind power plants to provide connections to substations.

ARE4H1R Cable Construction

Conductor
Class 2 compacted stranded aluminium
Insulation
XLPE (Cross-Linked Polyethylene)
Screen
Copper wires and tape
Outer Sheath
PVC (Polyvinyl chloride) (ST2)

ARE4H1R Cable Characteristics

Voltage Rating
12/20 kV,
18/30 kV
Temperature Rating
Minimum installation temperature: -25°C
Maximum operating temperature: 90°C
Maximum temperature during short circuit: 250°C

ARE4H1R Cable Specification

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA (mm²)	NOMINAL CONDUCTOR DIAMETER (mm)	MINIMUM CONDUCTOR SCREEN THICKNESS (mm)	NOMINAL INSULATION THICKNESS (mm)	MINMUM INSULATION THICKNESS (mm)	MINIMUM INSULATION SCREEN THICKNESS (mm)	NOMINAL DIAMETER OVER INSULATION (mm)	NOMINAL SHEATH THICKNESS (mm)	NOMINAL OVERALL DIAMETER (mm)	NOMINAL WEIGHT (kg/km)
12/20KV
1	50	8.2	0.3	4.9	4.31	0.3	19.32	2	27.32	695
1	70	9.8	0.3	4.9	4.31	0.3	20.92	2	28.92	791
1	95	11.5	0.3	4.9	4.31	0.3	22.62	2	30.62	903
1	120	12.65	0.3	4.9	4.31	0.3	23.77	2.1	31.97	1023
1	150	14.4	0.3	4.9	4.31	0.3	25.52	2.1	33.72	1148
1	185	15.75	0.3	4.9	4.31	0.3	26.87	2.2	35.27	1302
1	240	18.2	0.3	4.9	4.31	0.3	29.32	2.2	37.72	1515
1	300	20.5	0.3	4.9	4.31	0.3	31.62	2.3	40.22	1758
1	400	23	0.3	4.9	4.31	0.3	34.12	2.4	42.92	2132
1	500	26	0.3	4.9	4.31	0.3	37.12	2.5	46.12	2507
1	630	30.2	0.3	4.9	4.31	0.3	41.32	2.6	50.52	2987
18/30KV
1	50	8.2	0.3	7.25	6.5	0.3	24.02	2	32.02	855
1	70	9.8	0.3	7.25	6.5	0.3	25.62	2	33.62	961
1	95	11.5	0.3	7.25	6.5	0.3	27.32	2	35.32	1084
1	120	12.65	0.3	7.25	6.5	0.3	28.47	2.1	36.67	1213
1	150	14.4	0.3	7.25	6.5	0.3	30.22	2.1	38.42	1348
1	185	15.75	0.3	7.25	6.5	0.3	31.57	2.2	39.97	1512
1	240	18.2	0.3	7.25	6.5	0.3	34.02	2.2	42.42	1739
1	300	20.5	0.3	7.25	6.5	0.3	36.32	2.3	44.92	1997
1	400	23	0.3	7.25	6.5	0.3	38.82	2.4	47.62	2391
1	500	26	0.3	7.25	6.5	0.3	41.82	2.5	50.82	2784
1	630	30.2	0.3	7.25	6.5	0.3	46.02	2.6	55.22	3286
