ARE4H5E Cable

ARE4H5E Cable Description

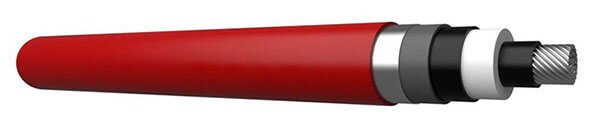

The ARE4H5E cable features a stranded aluminum conductor, XLPE insulation, an aluminum tape screen, and an MDPE outer sheath. It is suitable for indoor and outdoor use, as well as for installation in ducts, underground conduits, or via direct or indirect burial. Common applications include overhead lines, wind farms, and underground power grids. Variants are also available in three-core (3×1) configurations, designated as ARE4H5EX and ARE4H5EXY.

ARE4H5E Cable Construction

Conductor
Class 2 stranded compacted round aluminum
Insulation
XLPE (Cross-Linked Polyethylene)
Screen
Aluminum tape
Outer Sheath
MDPE (Medium DensityPolyethylene) DPM 2

ARE4H5E Cable Characteristics

Voltage Rating
12/20 kV,
18/30 kV
Temperature Rating
Minimum installation temperature: -25°C
Maximum operating temperature: 90°C
Maximum temperature during short circuit: 250°C

ARE4H5E Cable Specification

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA (mm²)	NOMINAL CONDUCTOR DIAMETER (mm)	MINIMUM CONDUCTOR SCREEN THICKNESS (mm)	NOMINAL INSULATION THICKNESS (mm)	MINMUM INSULATION THICKNESS (mm)	MINIMUM INSULATION SCREEN THICKNESS (mm)	NOMINAL DIAMETER OVER INSULATION (mm)	NOMINAL SHEATH THICKNESS (mm)	NOMINAL OVERALL DIAMETER (mm)	NOMINAL WEIGHT (kg/km)
12/20KV
1	50	8.2	0.3	4.9	4.31	0.3	19.32	2	27.32	607
1	70	9.8	0.3	4.9	4.31	0.3	20.92	2	28.92	698
1	95	11.5	0.3	4.9	4.31	0.3	22.62	2	30.62	805
1	120	12.65	0.3	4.9	4.31	0.3	23.77	2.1	31.97	916
1	150	14.4	0.3	4.9	4.31	0.3	25.52	2.1	33.72	1035
1	185	15.75	0.3	4.9	4.31	0.3	26.87	2.2	35.27	1179
1	240	18.2	0.3	4.9	4.31	0.3	29.32	2.2	37.72	1384
1	300	20.5	0.3	4.9	4.31	0.3	31.62	2.3	40.22	1613
1	400	23	0.3	4.9	4.31	0.3	34.12	2.4	42.92	1972
1	500	26	0.3	4.9	4.31	0.3	37.12	2.5	46.12	2328
1	630	30.2	0.3	4.9	4.31	0.3	41.32	2.6	50.52	2785
18/30KV
1	50	8.2	0.3	7.25	6.5	0.3	24.02	2	32.02	767
1	70	9.8	0.3	7.25	6.5	0.3	25.62	2	33.62	868
1	95	11.5	0.3	7.25	6.5	0.3	27.32	2	35.32	986
1	120	12.65	0.3	7.25	6.5	0.3	28.47	2.1	36.67	1106
1	150	14.4	0.3	7.25	6.5	0.3	30.22	2.1	38.42	1235
1	185	15.75	0.3	7.25	6.5	0.3	31.57	2.2	39.97	1389
1	240	18.2	0.3	7.25	6.5	0.3	34.02	2.2	42.42	1609
1	300	20.5	0.3	7.25	6.5	0.3	36.32	2.3	44.92	1852
1	400	23	0.3	7.25	6.5	0.3	38.82	2.4	47.62	2231
1	500	26	0.3	7.25	6.5	0.3	41.82	2.5	50.82	2606
1	630	30.2	0.3	7.25	6.5	0.3	46.02	2.6	55.22	3084
