NA2XSEBY Cable

NA2XSEBY Cable Description

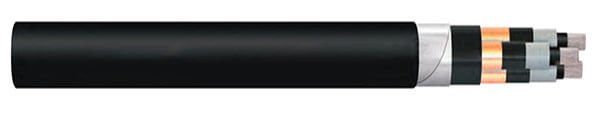

The NA2XSEBY cable features aluminum conductors, XLPE insulation, a copper tape screen, and double steel tape armoring, all enclosed in a PVC outer sheath. It is suitable for indoor and outdoor applications, as well as for installation in cable tunnels, trenches, shafts, or direct burial. It offers resistance to light-to-moderate external mechanical damage and pressure but cannot withstand longitudinal tensile stress during installation.

NA2XSEBY Cable Construction

Conductor
Class 2 circular stranded aluminum
Insulation
XLPE (Cross-Linked Polyethylene)
Screen
Copper tape
Armour
Double steel tape armoring (STA)
Outer Sheath
PVC (also available in PE or LSZH variants)

NA2XSEBY Cable Characteristics

Voltage Rating Uo/U (Um)
3.6/6 (7.2) kV
6/10 (12) kV
8.7/15 (17.5) kV
12/20 (24) kV
18/30 (36) kV
Operating Temperature
up to 90℃

NA2XSEBY Cable Specification

No. of Cores and Nominal Cross Section (mm²)	Nominal Insulation Thickness (mm)	Nominal Steel Tape Thickness (mm)	Nominal Sheath Thickness (mm)	Approx. Overall Diameter (mm)	Approx. Weight (kg/km)	Max. D.C. Resistance of Conductor at 20°C (Ω/km)
3.6/6(7.2)kV
3×25	2.5	0.5	2.2	39	2000	1.2
3×35	2.5	0.5	2.3	41.6	2248	0.868
3×50	2.5	0.5	2.4	44.1	2512	0.641
3×70	2.5	0.5	2.5	48.2	2955	0.443
3×95	2.5	0.5	2.6	52.3	3440	0.32
3×120	2.5	0.5	2.8	55.5	3901	0.253
3×150	2.5	0.5	2.9	59.1	4425	0.206
3×185	2.5	0.5	3	63	5031	0.164
3×240	2.6	0.5	3.2	69	5974	0.125
3×300	2.8	0.5	3.4	75.2	6991	0.1
3×400	3	0.8	3.7	84.1	9340	0.0778
3×500	3.2	0.8	3.9	93	11126	0.0605
3×630	3.2	0.8	4.2	102	13166	0.0469
6/10(12)kV
3×25	3.4	0.5	2.4	43.9	2354	1.2
3×35	3.4	0.5	2.4	46.1	2579	0.868
3×50	3.4	0.5	2.6	49	2905	0.641
3×70	3.4	0.5	2.7	53.1	3373	0.443
3×95	3.4	0.5	2.8	57.2	3882	0.32
3×120	3.4	0.5	2.9	60.2	4338	0.253
3×150	3.4	0.5	3	63.6	4848	0.206
3×185	3.4	0.5	3.1	67.7	5509	0.164
3×240	3.4	0.5	3.3	73.3	6442	0.125
3×300	3.4	0.5	3.5	78.6	7397	0.1
3×400	3.4	0.8	3.7	86.3	9619	0.0778
3×500	3.4	0.8	4	94.5	11351	0.0605
3×630	3.4	0.8	4.2	103.3	13362	0.0469
8.7/15(17.5)kV
3×25	4.5	0.5	2.5	49.5	2807	1.2
3×35	4.5	0.5	2.6	51.9	3068	0.868
3×50	4.5	0.5	2.7	54.6	3399	0.641
3×70	4.5	0.5	2.8	58.7	3903	0.443
3×95	4.5	0.5	3	63	4475	0.32
3×120	4.5	0.5	3.1	66	4974	0.253
3×150	4.5	0.5	3.2	69.4	5511	0.206
3×185	4.5	0.5	3.3	73.5	6173	0.164
3×240	4.5	0.5	3.5	79.1	7140	0.125
3×300	4.5	0.8	3.7	85.6	9103	0.1
3×400	4.5	0.8	3.9	92	10503	0.0778
3×500	4.5	0.8	4.1	100.1	12385	0.0605
3×630	4.5	0.8	4.4	109.1	14503	0.0469
12/20(24)kV
3×35	5.5	0.5	2.8	57.2	3543	0.868
3×50	5.5	0.5	2.9	60	3894	0.641
3×70	5.5	0.5	3	63.9	4391	0.443
3×95	5.5	0.5	3.1	68.1	4995	0.32
3×120	5.5	0.5	3.2	71.1	5513	0.253
3×150	5.5	0.5	3.3	74.6	6070	0.206
3×185	5.5	0.5	3.5	78.8	6794	0.164
3×240	5.5	0.8	3.7	85.6	8625	0.125
3×300	5.5	0.8	3.8	90.8	9809	0.1
3×400	5.5	0.8	4.1	97.4	11292	0.0778
3×500	5.5	0.8	4.3	105.5	13226	0.0605
3×630	5.5	0.8	4.5	114.3	15353	0.0469
18/30(36)kV
3×50	8	0.5	3.3	72	5117	0.641
3×70	8	0.5	3.4	76.1	5707	0.443
3×95	8	0.5	3.5	80.1	6333	0.32
3×120	8	0.8	3.7	84.5	7749	0.253
3×150	8	0.8	3.8	88	8389	0.206
3×185	8	0.8	3.9	92	9179	0.164
3×240	8	0.8	4.1	97.6	10319	0.125
3×300	8	0.8	4.2	102.8	11576	0.1
3×400	8	0.8	4.5	109.4	13157	0.0778
3×500	8	0.8	4.7	117.5	15204	0.0605
3×630	8	0.8	4.9	126.3	17459	0.0469
