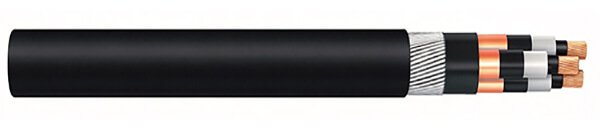

N2XSERY Cable

N2XSERY Cable Description

N2XSERY cables feature copper conductors, XLPE insulation, copper tape/wire screening, galvanized steel wire armor (SWA), and a PVC outer sheath. They are suitable for installation indoors, in tunnels, cable trenches, and vertical shafts, or for direct burial. They are capable of withstanding high mechanical stress, crushing forces, and moderate tensile loads.

N2XSERY Cable Construction

Conductor
Class 2 Stranded copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Screen
Copper tape
Armor
Galvanized Steel Wire Armour (SWA)
Outer Sheath
PVC (Polyvinyl Chloride)

N2XSERY Cable Characteristics

Voltage Rating Uo/U (Um)
3.6/6 (7.2) kV
6/10 (12) kV
8.7/15 (17.5) kV
12/20 (24) kV
18/30 (36) kV

N2XSERY Cable Specification

Nominal cross-sectional area (mm²)	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Cable Diameter approx (mm)	Weight approx. (kg/km)	Max. DC Resistance conductor(20℃) (Ω/km)	Current carrying capacity In Air (A)	Current carrying capacity In Ground(A)
6/10kV
3X25	3.4	2.4	48.1	4089	0.727	84	95
3X35	3.4	2.5	50.5	4604	0.524	102	116
3X50	3.4	2.6	53.7	5288	0.387	123	133
3X70	3.4	2.7	57.5	6234	0.268	154	168
3X95	3.4	2.9	61.6	7368	0.193	186	200
3X120	3.4	3	65	8418	0.153	214	224
3X150	3.4	3.1	68.5	9515	0.124	245	256
3X185	3.4	3.2	72.5	11005	0.0991	277	287
3X240	3.4	3.4	79.2	14048	0.0754	329	336
3X300	3.4	3.6	84.5	16323	0.0601	375	378
3X400	3.4	3.8	91.6	19556	0.047	427	427
8.7/15kV
3X25	4.5	2.6	54.5	4723	0.727	84	95
3X35	4.5	2.7	55.8	5256	0.524	102	116
3X50	4.5	2.8	59	5965	0.387	123	133
3X70	4.5	2.9	62.9	6940	0.268	154	168
3X95	4.5	3	66.7	8076	0.193	186	200
3X120	4.5	3.1	70.2	9151	0.153	214	224
3X150	4.5	3.2	73.6	10273	0.124	245	256
3X185	4.5	4.5	79.2	12717	0.0991	277	287
3X240	4.5	3.6	84.5	14927	0.0754	329	336
3X300	4.5	3.7	89.7	17267	0.0601	375	378
3X400	4.5	4	97	20531	0.047	427	427
12/20kV
3X35	5.5	2.9	66.2	6136	0.524	98	104
3X50	5.5	3	68.7	6745	0.387	114	124
3X70	5.5	3.1	73	7804	0.268	143	153
3X95	5.5	3.2	77	8971	0.193	172	185
3X120	5.5	3.4	82.9	11035	0.153	198	208
3X150	5.5	3.5	86.2	12279	0.124	228	237
3X185	5.5	3.6	90.3	13845	0.0991	257	267
3X240	5.5	3.8	96	16140	0.0754	302	309
3X300	5.5	4	101.2	18657	0.0601	345	348
3X400	5.5	4.2	107.8	21868	0.047	400	393
18/30kV
3X35	8	3.3	81	8648	0.524	172	154
3X50	8	3.4	83.4	9303	0.387	205	181
3X70	8	3.6	87.7	10483	0.268	253	220
3X95	8	3.7	91.7	11812	0.193	307	263
3X120	8	3.8	94.9	12997	0.153	352	298
3X150	8	3.9	98.2	14291	0.124	397	332
3X185	8	4	102.3	15915	0.0991	453	374
3X240	8	4.2	108	18293	0.0754	529	431
3X300	8	4.4	113.2	20886	0.0601	599	482
3X400	8	4.6	119.8	24193	0.047	683	541
