NA2XSEY Cable

NA2XSEY Cable Description

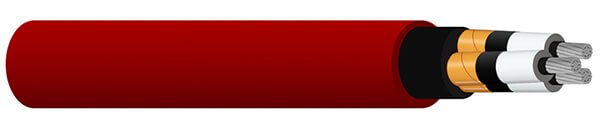

The NA2XSEY cable features an aluminum conductor, cross-linked polyethylene (XLPE) insulation, a copper tape screen, and a PVC outer sheath. It is widely used in sectors such as construction, renewable energy, and power transmission. It is suitable for indoor and outdoor installation, placement in cable ducts, or direct burial underground.

NA2XSEY Cable Construction

Conductor
Class 2 Stranded aluminum conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Screen
Copper tape
Outer Sheath
PVC (Polyvinyl Chloride)

NA2XSEY Cable Characteristics

Voltage Rating Uo/U (Um)
3.6/6 (7.2) kV
6/10 (12) kV
8.7/15 (17.5) kV
12/20 (24) kV
18/30 (36) kV
Operating Temperature
up to 90℃

NA2XSEY Cable Specification

No. of cores and nominal cross section mm²	Thickness of Insulation mm	Thickness of sheath mm	Approx. Overall Diameter mm	Approx. Weight kg/km	Max. DC Resistance of conductor(20℃) Ω/km	Current carrying capacity in air(A)	Current carrying capacity in ground(A)
6/10KV
3×70	3.4	2.5	53	2750	0.443	183	174
3×95	3.4	2.7	58	3400	0.32	222	208
3×120	3.4	2.7	61	3700	0.253	255	236
3×150	3.4	2.8	64	4350	0.206	289	263
3×185	3.4	2.9	67	4700	0.164	326	295
3×240	3.4	3.1	74	5600	0.125	394	347
3×300	3.4	3.3	79	6650	0.1	450	390
3×400	3.4	3.5	83	7250	0.0778	522	444
8.7/15KV
3×70	4.5	2.7	58	3250	0.443	183	174
3×95	4.5	2.8	63	3900	0.32	222	208
3×120	4.5	2.9	66	4200	0.253	255	236
3×150	4.5	3	69	4700	0.206	289	263
3×185	4.5	3.1	73	5300	0.164	326	295
3×240	4.5	3.3	79	6300	0.125	394	347
3×300	4.5	3.4	84	7150	0.1	450	390
3×400	4.5	3.7	88	9700	0.0778	522	444
12/20KV
3×70	5.5	2.8	63	3650	0.443	183	174
3×95	5.5	2.9	67	4200	0.32	222	208
3×120	5.5	3	70	4700	0.253	255	236
3×150	5.5	3.1	72	5200	0.206	289	263
3×185	5.5	3.3	78	5800	0.164	326	295
3×240	5.5	3.4	83	6900	0.125	394	347
3×300	5.5	3.6	88	7700	0.1	450	390
3×400	5.5	3.8	93	8200	0.0778	522	444
18/30KV
3×70	8	3.2	75	4900	0.443	183	174
3×95	8	3.3	79	5500	0.32	222	208
3×120	8	3.4	82	6000	0.253	255	236
3×150	8	3.5	85	6500	0.206	289	263
3×185	8	3.6	89	7200	0.164	326	295
3×240	8	3.8	95	8400	0.125	394	347
3×300	8	4	100	9500	0.1	450	390
