NA2XSRY Cable

NA2XSRY Cable Description

The NA2XSRY cable features an aluminum conductor, XLPE insulation, a copper tape screen, aluminum wire armouring, and a PVC outer sheath. It is capable of withstanding external mechanical pressure as well as moderate levels of tension. It is commonly used in substations, power plants, and industrial facilities, and is suitable for installation indoors, in cable tunnels, cable trenches, and shafts, as well as for direct burial underground.

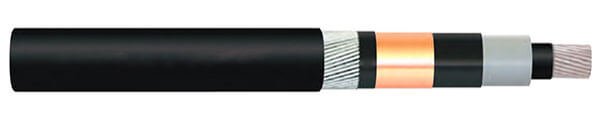

NA2XSRY Cable Construction

Conductor
Class 2 circular stranded aluminum
Insulation
XLPE (Cross-Linked Polyethylene)
Screen
Copper tape
Armour
Aluminum wire armour (AWA)
Outer Sheath
PVC (Polyvinyl Chloride)

NA2XSRY Cable Characteristics

Voltage Rating Uo/U (Um)
3.6/6 (7.2) kV
6/10 (12) kV
8.7/15 (17.5) kV
12/20 (24) kV
18/30 (36) kV
Operating Temperature
up to 90℃

NA2XSRY Cable Specification

No. of cores and nominal cross section mm²	Thickness of Insulation mm	Thickness of sheath mm	Approx. Overall Diameter mm	Approx. Weight kg/km	Max. DC Resistance of conductor(20℃) Ω/km	Current carrying capacity in air(A)	Current carrying capacity in ground(A)
6/10KV
1x70	3.4	1.9	31	1160	0.443	213	175
1x95	3.4	1.9	32	1320	0.32	258	208
1x120	3.4	2	34	1470	0.253	294	235
1x150	3.4	2.1	36	1670	0.206	329	260
1x185	3.4	2.1	38	1840	0.164	373	291
1x240	3.4	2.2	40	2140	0.125	432	332
1x300	3.4	2.2	42	2410	0.1	486	369
1x400	3.4	2.4	46	2890	0.0778	547	408
1x500	3.4	2.5	51	3540	0.0605	611	451
1x630	3.4	2.6	55	4130	0.0469	675	494
8.7/15KV
1x70	4.5	2	33	1300	0.443	213	175
1x95	4.5	2	35	1520	0.32	258	208
1x120	4.5	2.1	37	1680	0.253	294	235
1x150	4.5	2.1	38	1830	0.206	329	260
1x185	4.5	2.2	40	2020	0.164	373	291
1x240	4.5	2.3	43	2330	0.125	432	332
1x300	4.5	2.3	45	2610	0.1	486	369
1x400	4.5	2.5	51	3280	0.0778	547	408
1x500	4.5	2.6	54	3800	0.0605	611	451
1x630	4.5	2.7	58	4390	0.0469	675	494
12/20KV
1x70	5.5	2	35	1480	0.443	213	175
1x95	5.5	2.1	37	1680	0.32	258	208
1x120	5.5	2.1	39	1820	0.253	294	235
1x150	5.5	2.2	40	2000	0.206	329	260
1x185	5.5	2.2	42	2180	0.164	373	291
1x240	5.5	2.3	45	2500	0.125	432	332
1x300	5.5	2.4	48	2970	0.1	486	369
1x400	5.5	2.5	53	3480	0.0778	547	408
1x500	5.5	2.6	56	4000	0.0605	611	451
1x630	5.5	2.8	60	4630	0.0469	675	494
18/30KV
1x70	8	2.2	41	1900	0.443	213	175
1x95	8	2.3	43	2100	0.32	258	208
1x120	8	2.3	44	2260	0.253	294	235
1x150	8	2.4	47	2600	0.206	329	260
1x185	8	2.5	49	2830	0.164	373	291
1x240	8	2.5	51	3160	0.125	432	332
1x300	8	2.6	54	3530	0.1	486	369
1x400	8	2.7	58	4080	0.0778	547	408
1x500	8	2.8	62	4650	0.0605	611	451
1x630	8	2.9	65	5280	0.0469	675	494
