RE4H1R Cable

RE4H1R Cable Description

The RE4H1R cable features stranded copper conductors, XLPE insulation, a copper tape screen, and a PVC outer sheath. It is suitable for fixed installation in industrial sites, oil, chemical, and petrochemical plants, as well as in substations and wind power installations. It can be installed in underground passages, underground conduits, cable ducts, on outdoor pipe racks, or in open-air environments.

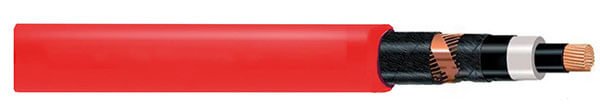

RE4H1R Cable Construction

Conductor
Class 2 stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Screen
Copper tape
Outer Sheath
PVC (Polyvinyl chloride)

RE4H1R Cable Characteristics

Voltage Rating
12/20 kV
Temperature Rating
Minimum installation temperature: 0°C
Maximum operating temperature: 90°C
Maximum temperature during short circuit: 250°C

RE4H1R Cable Specification

Cross Section mm²	Conductor DC Resistance (20°C) Max Ω/km	Insulation Thickness mm	Approx Overall Diameter mm	Approx Weight kg/km	Rated Current Rating (In Air) A
35	≤0.524	5.5	26.8	620	185
50	≤0.386	5.5	28.2	715	220
70	≤0.268	5.5	30.1	845	270
95	≤0.193	5.5	32.3	995	325
120	≤0.153	5.5	34.2	1130	370
150	≤0.124	5.5	36	1285	415
185	≤0.0991	5.5	38.1	1460	470
240	≤0.0754	5.5	40.8	1705	545
300	≤0.0601	5.5	43.5	1960	615
