(N)SSHCÖU Cable Description
(N)SSHCÖU cable is rated at 0.6/1kV, features high abrasion resistance, flame retardancy, and water immersion capability, and provides electromagnetic compatibility (EMC) protection. Suitable for mining and tunneling equipment, open-pit mining, and quarries, etc.

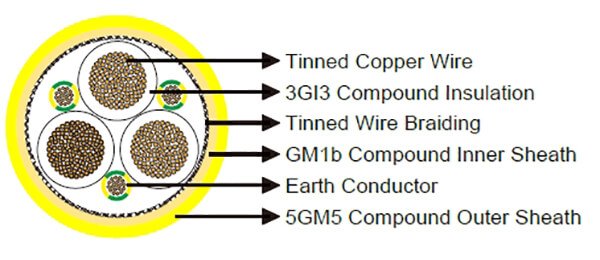

(N)SSHCÖU Cable Construction
- Conductor
- Electrolytic, stranded, tinned copper wire DIN VDE 0295 Class 5
- Insulation
- All cores are insulated with 3GI3 compound
- Lay Up
- Three power cores laid up with the protective earth conductors split into three in the outer Interstices
- Screen
- Concentric tinned copper wire braiding
- Inner Sheath
- Special extruded elastomeric compound GM1b
- Outer Sheath
- Heavy-duty elastomer outer sheath 5GM5
(N)SSHCÖU Cable Characteristics
- Rated Voltage
- 0,6 / 1 kV
- Working Temperature
- Fixed : -40ºC to +80ºC
- Mobile : -25ºC to +80ºC
(N)SSHCÖU Cable Specifications
| Cross Sectlon (mm²) | Overall Dlameter Mln-Max (mm) | Approxlmate welght (kg/km) |
|---|---|---|
| 3 x 16 + 3 x 2.5 | 24.4 – 27.4 | 1200 |
| 3 x 25 + 3 x 4 | 28.2 – 31.2 | 1700 |
| 3 x 70 + 3 x 35/3 | 41.2 – 44.2 | 3850 |
| 3 x 95 + 3 x 50/3 | 45.7 – 48.7 | 4650 |
| 3 x 120 + 3×70/3 | 48.7 – 52.7 | 5800 |
| 3 x 150 + 3×70/3 | 55.7 – 59.7 | 7150 |
| 3 x 185 + 3×95/3 | 60.4 – 64.4 | 8500 |
| 3 x 240 + 3×120/3 | 68.2 – 72.2 | 10100 |
