(N)TSKCGECWÖU Cable Description
(N)TSKCGECWÖU cable uses 3GI3 type ethylene propylene rubber (EPR) insulation with conductive rubber shielding layers on both the top and bottom to enhance safety. It is commonly used for power connections in machinery such as coal mining machines, continuous coal mining machines, and tunnel boring machines.

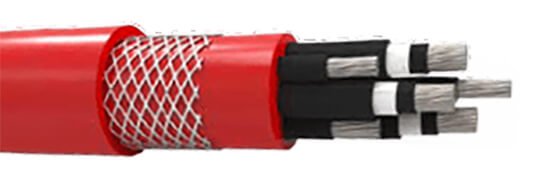

(N)TSKCGECWÖU Cable Construction
- Conductor
- Class 5 tinned copper conductor
- Insulation
- 3GI3 type EPR compound and semi conductive rubber compound
- Lay Up
- Three main conductors laid-up with three control cores & PE conductors in interstice over a cradle separator
- Inner Sheath
- GM1b type EPR Compound
- Screen
- Flexible – pliable armour in helix of tinned copper
- Armour
- Galvanised steel wires
- Outer Sheath
- 5GM5 type elastomer compound
(N)TSKCGECWÖU Cable Characteristics
- Rated Voltage
- 1,8/3 kV
- 3,6/6 kV
- Working Temperature
- Fixed: -40ºC … +80ºC
- Mobile: -25ºC … +80ºC
(N)TSKCGECWÖU Cable Specifications
| Cross Section (mm²) | Overall Diameter Min-Max (mm) | Conductor Resistance At 20℃ (Ω/km) | Approxlmate welght (kg/km) |
|---|---|---|---|
| 1,8/3 kV | |||
| 3 x 25 + 3 x (1,5 ST KON+ 16/3 KON) | 42.1 – 45.3 | 0.795 | 3190 |
| 3 x 70 + 3 x (1,5 ST KON+ 35/3 KON) | 55.8 – 60.0 | 0.277 | 6070 |
| 3 x 95 + 3 x (1,5 ST KON+ 50/3 KON) | 61.5 – 65.7 | 0.21 | 7620 |
| 3 x 120 + 3 x (1,5 ST KON+ 70/3 KON) | 66.0 – 70.3 | 0.164 | 9270 |
| 3 x 150 + 3 x (1,5 ST KON+ 70/3 KON) | 71.8 – 76.0 | 0.132 | 10920 |
| 3 x 185 + 3 x (1,5 ST KON+ 95/3 KON) | 76.2 – 80.3 | 0.108 | 12770 |
| 3 x 240 + 3 x (1,5 ST KON+ 120/3 KON) | 84.1 – 89.4 | 0.0817 | 15860 |
| 3 x 50 + 3 x (35 + 35/3KON) + 2 x (0,75ST KON) + 1 x (2 x 0,75 .L KON) | 66.0 – 71.0 | 0.368 | 8390 |
| 3 x 70 + 3 x (50 + 50/3KON) + 2 x (0,75ST KON) + 1 x (2 x 0,75 .L KON) | 74.0 – 79.0 | 0.272 | 10350 |
| 3 x 95 + 3 x (70 + 70/3KON) + 2 x (0,75ST KON) + 1 x (2 x 0,75 .L KON) | 85.0 – 90.0 | 0.206 | 13340 |
| 3 x 35 + 3 x (1,5 ST KON + 25/3 KON) + .L KON | 46.0 – 51.0 | 0.554 | 3960 |
| 3 x 50 + 3 x (1,5 ST KON + 25/3 KON) + .L KON | 51.0 – 55.0 | 0.368 | 4980 |
| 3 x 70 + 3 x (1,5 ST KON + 35/3 KON) + .L KON | 57.0 – 62.0 | 0.272 | 6360 |
| 3 x 95 + 3 x (1,5 ST KON + 50/3 KON) + .L KON | 64.0 – 69.0 | 0.206 | 8150 |
| 3,6/6 kV | |||
| 3 x 25 + 3 x (1,5 ST KON + 16/3 KON) | 47.3 – 50.4 | 0.795 | 3710 |
| 3 x 35 + 3 x (1,5 ST KON + 16/3 KON) | 50.2 – 53.4 | 0.565 | 4320 |
| 3 x 50 + 3 x (1,5 ST KON + 25/3 KON) | 53.5 – 57.7 | 0.393 | 5250 |
| 3 x 70 + 3 x (1,5 ST KON + 35/3 KON) | 59.6 – 63.8 | 0.277 | 6600 |
| 3 x 95 + 3 x (1,5 ST KON + 50/3 KON) | 64.3 – 68.5 | 0.21 | 8030 |
| 3 x 120 + 3 x (1,5 ST KON + 70/3 KON) | 70.7 – 74.8 | 0.164 | 9990 |
| 3 x 150 + 3 x (1,5 ST KON + 70/3 KON) | 74.5 – 78.8 | 0.132 | 11330 |
| 3 x 185 + 3 x (1,5 ST KON + 95/3 KON) | 78.5 – 83.0 | 0.108 | 13280 |
| 3 x 240 + 3 x (1,5 ST KON + 120/3 KON) | 86.8 – 92.10 | 0.0817 | 16380 |
| 3 x 35 + 3 x (35 + 35/3 KON) + 2 x (0,75ST KON) + 1 x (2 x 0,75.L KON) | 69.0 – 74.0 | 0.554 | 7800 |
| 3 x 50 + 3 x (50 + 50/3 KON) + 2 x (0,75ST KON) + 1 x (2 x 0,75 .L KON) | 73.0 – 78.0 | 0.368 | 9340 |
| 3 x 70 + 3 x (70 + 70/3 KON) + 2 x (0,75ST KON) + 1 x (2 x 0,75 .L KON) | 80.0 – 85.0 | 0.272 | 11580 |
| 3 x 95 + 3 x (95 + 95/3 KON) + 2 x (0,75ST KON) + 1 x (2 x 0,75 .L KON) | 89.0 – 94.0 | 0.206 | 13930 |
| 3 x 35 + 3 x (1,5 ST KON + 25/3 KON) + .L KON | 46.0 – 51.0 | 0.554 | 3960 |
| 3 x 50 + 3 x (1,5 ST KON + 25/3 KON) + .L KON | 51.0 – 55.0 | 0.368 | 4980 |
| 3 x 70 + 3 x (1,5 ST KON + 35/3 KON) + .L KON | 57.0 – 62.0 | 0.272 | 6360 |
| 3 x 95 + 3 x (1,5 ST KON + 50/3 KON) + .L KON | 64.0 – 69.0 | 0.206 | 8150 |
