E-A2Y

E-A2Y Cable Description

E-A2Y cables use aluminum conductors and weather-resistant polyethylene (PE) insulation, are lightweight, and can be suspended along poles and building walls, making them suitable for use as building power towers or roof pole cables. Lacking heavy-duty mechanical armor and moisture-proof seals, they must never be buried underground.

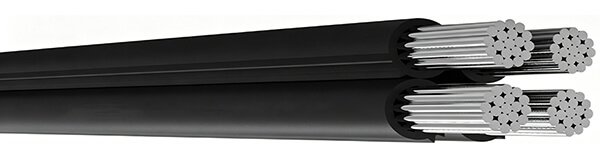

e-a2y

E-A2Y Cable Construction

Conductor
Solid or stranded compacted aluminum wires
Insulation
Polyethylene (PE) compound

E-A2Y Cable Characteristics

Rated voltage: 0,6/1 kV
Bending radius (min): 18D
Min. laying temperature: -5°C
Max. conductor temperature: 70°C
Operating temperature: from -25°C to 70°C

E-A2Y Cable Specifications

NOMINAL CROSS-SECTION (mm²)	MAX.RESISTANCE AT 20ºC (Ω/km)	CURRENT CAPACITY IN AIR (A)	OUTER DIAM. (APPROX.) (mm)	METAL WEIGHT (kg/km)	CABLE WEIGHT (APPROX.) (kg/km)
2x25	1200	80	18	145	210
2x35	0,868	100	20	203	280
4x25	1200	80	21	290	420
4x35	0,868	100	24	406	560
4x50	0,641	125	28	580	740
4x70	0,443	160	32	812	1000
4x95	0,320	185	37	1102	1350
