H03V2V2-F Cable Description
The H03V2V2-F cable features finely stranded copper conductors, a special heat-resistant PVC insulation layer (TI3 grade), and a PVC outer sheath. Designed for indoor mobile and portable applications, it can be used to connect small, lightweight mobile devices or radios and is suitable for high-temperature environments such as homes, offices, and kitchens.

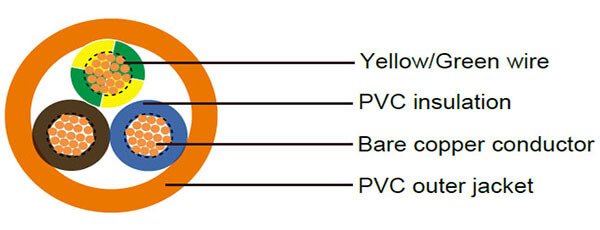

H03V2V2-F Cable Construction
- Conductor
- Class 5 flexible plain copper wire
- Insulation
- PVC type TI3
- Outer Sheath
- PVC type TM3
H03V2V2-F Cable Characteristics
- Rated Voltage
- 300/300 V
- Max. Conductor Temperature
- +90°C
- Max. Short-Circuit Temperature
- +160°C
H03V2V2-F Cable Specification
| Conductor cross-sections (mm²) | MAX. Ø conductor wires (mm) | Average insulation thickness (mm) | Average sheath thickness (mm) | Outer diameter (MIN mm) | Outer diameter (MAX mm) | Approx. cable weight (g/m) | Max. electrical resistance (20°C) (ohm/km) | Current rating at 30°C in pipe in air (A) |
|---|---|---|---|---|---|---|---|---|
| 2 x 0,5 | 0,21 | 0,5 | 0,6 | 4,6 | 5,9 | 41 | 39,0 | 3 |
| 2 x 0,75 | 0,21 | 0,5 | 0,6 | 4,9 | 6,3 | 48 | 26,0 | 6 |
| 3 x 0,5 | 0,21 | 0,5 | 0,6 | 4,9 | 6,3 | 48 | 39,0 | 3 |
| 3 x 0,75 | 0,21 | 0,5 | 0,6 | 5,2 | 6,7 | 57 | 26,0 | 6 |
| 4 x 0,5 | 0,21 | 0,5 | 0,6 | 5,4 | 6,9 | 58 | 39,0 | 3 |
| 4 x 0,75 | 0,21 | 0,5 | 0,6 | 5,7 | 7,3 | 70 | 26,0 | 6 |
