H05V2-U Cable

H05V2-U Cable Description

H05V2-U cable uses a solid copper conductor and heat-resistant polyvinyl chloride (PVC) insulation. It is commonly used as a fixed protective device installed inside electrical equipment, and can also be installed in surface or recessed conduits for control and signal circuits. However, it is not permitted for outdoor installation or use in general fixed power distribution networks.

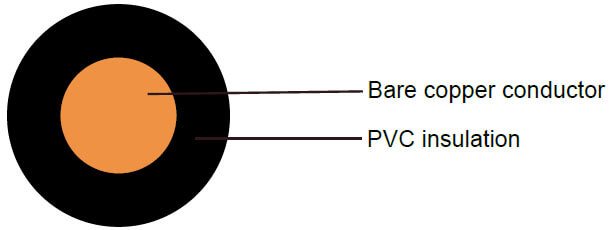

H05V2-U Cable Construction

Conductor
Solid plain annealed copper, class 1
Insulation
PVC type TI3

H05V2-U Cable Characteristics

Rated Voltage
300/500 V
Temperature Range
-15°C to +90°C

H05V2-U Cable Specification

Conductor cross-sections (mm²)	Average insulation thickness (mm)	Outer diameter (MIN mm)	Outer diameter (MAX mm)	Approx. cable weight (g/m)	Max. electrical resistance (20°C) (ohm/km)	Current rating at 30°C in pipe in air (A)
0,5	0,6	1,9	2,3	8,3	36,0	4
0,75	0,6	2,1	2,5	11,6	24,5	9
1	0,6	2,2	2,7	14	18,1	15
