H05V2V2H2-F Cable Description
H05V2V2H2-F cable features a flat profile, finely stranded copper conductors, and a special heat-resistant PVC insulation and outer sheath. It can withstand moderate mechanical stress and is suitable for indoor living spaces, offices, and kitchens. It is ideal for lightweight, portable lighting equipment, radios, and kitchen appliances that require a flat shape and high temperature resistance.

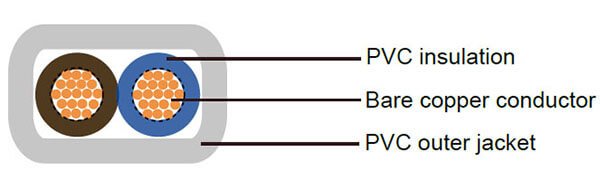

H05V2V2H2-F Cable Construction
- Conductor
- Flexible plain coppe, class 5
- Insulation
- PVC type TI3
- Outer Sheath
- PVC type TM3
H05V2V2H2-F Cable Characteristics
- Voltage Rating
- 300/500 V
- Max. Operating Temperature
- on the conductor: +90°C
- Min Installation Temp
- +5°C
H05V2V2H2-F Cable Specification
| Conductor cross-sections (2 cores x mm²) | MAX. Ø conductor wires (mm) | Average insulation thickness (mm) | Average sheath thickness (mm) | Outer diameter (MIN mm) | Outer diameter (MAX mm) | Approx. cable weight (g/m) | Max. electrical resistance (20°C) (ohm/km) | Current rating at 30°C in pipe in air (A) |
|---|---|---|---|---|---|---|---|---|
| 0,75 | 0,21 | 0,6 | 0,8 | 3,7 x 6,0 | 4,5 x 7,2 | 61 | 26,0 | 6 |
| 1 | 0,21 | 0,6 | 0,8 | 3,9 x 6,2 | 4,7 x 7,5 | 70 | 19,5 | 10 |
| 1,5 | 0,21 | 0,7 | 0,8 | 4,2 x 7,0 | 5,2 x 8,6 | 92 | 13,3 | 16 |
