V-VMvKsas / V-VMvKhsas

V-VMvKsas / V-VMvKhsas Cable Description

V-VMvKsas cables feature PVC insulation and an outer sheath, providing UV resistance and flame retardancy. This cable is commonly used in low-voltage electrical installations and is suitable for ground installation, direct underground burial, and humid environments (but not direct immersion in water). Compared to V-VMvKsas, V-VMvKhsas includes a built-in auxiliary (guide) conductor, which can be used for telemetry, control signals, and audio communication.

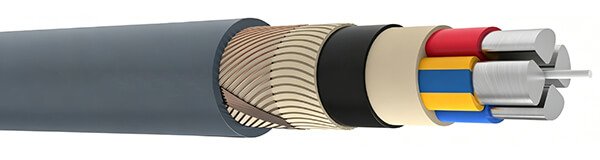

V-VMvKsas / V-VMvKhsas Cable Construction

Conductor
Al, class 1
Pilot conductor
V-VMvKhsas: Cu, class 1
Insulation
PVC compound
Concentric conductor
Cu wires with copper counter helix tape
Outer Sheath
PVC compound, UV resistant

V-VMvKsas / V-VMvKhsas Cable Characteristics

Rated voltage
0,6/1 kV
Min. laying temperature
0°C
Max. working temperature
70°C
Max. short-circuit temperature
160°C

V-VMvKsas / V-VMvKhsas Cable Specifications

CHARACTERISTICS	UNIT	4x50 Alsvm+sas 25	4x95 Alsvm+sas 35	4x150 Alsvm+sas 50	4x240 Alsvm+sas 70
Average insulation thickness of main cores	mm	1,4	1,6	1,8	2,2
Average cable diameter	mm	35	44	52	62
Cable weight	kg/m	1,8	2,8	4,1	6
Minimum bend radius during installation/pulling	mm	420	528	624	744
Minimum bend radius fixed/final installation	mm	359	450	527	632
Maximum permissible pulling force	N/mm²	4000	7600	12000	19200
Maximum nominal operating temperature	°C	70	70	70	70
Operating capacity C DC	μF/km	0,2231	0,2364	0,2874	0,3165
resistance main core Rdc at 20°C	Ω/km	0,641	0,320	0,206	0,125
AC resistance main core Rac at 55°C and 50 Hz	Ω/km	0,7314	0,3651	0,2351	0,1426
DC resistance screen Rdc at 20°C	Ω/km	0,727	0,524	0,387	0,268
Reactance X at 50Hz	Ω/km	0,073	0,071	0,069	0,066
Thermally permissible short-circuit current of the conductor(s)	kA/1s	3799	7219	11398	18237
Thermally permissible short-circuit current of the screen	kA/1s	3,7	5,2	7,4	10,3
Continuous permissible current of the main cores*	-	194	287	371	494
Pitch length of the twisted/laid up cores	mm	1200	1204	1448	1820
Fire classification	-	Eca	Eca	Eca	Eca
