RS-2YCY PiMF Cable Description
The RS-2YCY PiMF cable features double shielding (copper-clad wire pairs plus an overall copper braided layer) to block external electromagnetic noise. It can be installed in dry, humid, or high-humidity indoor rooms. Commonly used in computer systems, electronic controls, and high-speed data transmission, it is ideal for environments requiring protection from external electromagnetic noise, such as medical technology, traffic lights, and machine tools.

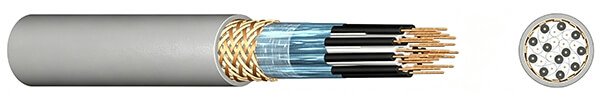

RS-2YCY PiMF Cable Construction
- Conductor
- Fine-stranded bare copper
- Insulation
- Polyvinylchloride (PVC)
- PiMF (Pair in Metal Foil)
- Each pair is screened with a static screen of plastic coated aluminium foil
- Overall Shield
- Wrapped in a plastic foil layer and covered with a braid of bare copper wires
- Outer Sheath
- polyvinylchloride (PVC)
RS-2YCY PiMF Cable Characteristics
- Temperature Range
- in motion: -5°C to +70°C
- fixed: -20°C to +70°C
- Insulation Resistance
- Min. 10.0 GΩ × km (or 5000 MΩ/km)
- Characteristic Impedance
- at 1 kHz: 465 Ω
- at 10 kHz: 155 Ω
- at 100 kHz: 115 Ω
RS-2YCY PiMF Cable Specification
| Number of pairs and nominal cross section (mm²) | Copper figure (kg/km) | Overall diameter appr. (mm) | Weight appr. (kg/km) |
|---|---|---|---|
| 2 x 2 x 0,5 | 77 | 8,0 | 100 |
| 3 x 2 x 0,5 | 92 | 8,8 | 120 |
| 4 x 2 x 0,5 | 112 | 9,7 | 145 |
| 6 x 2 x 0,5 | 154 | 11,9 | 210 |
| 8 x 2 x 0,5 | 188 | 13,2 | 270 |
| 12 x 2 x 0,5 | 294 | 15,4 | 375 |
| 16 x 2 x 0,5 | 352 | 18,2 | 420 |
