YMT Cable

YMT Cable Description

YMT cables feature bare copper conductors, PVC insulation and an outer sheath, and include an integrated stranded steel wire, designed to withstand tensile stress over long outdoor spans. Specifically designed for overhead or open-air use, such as supplying power to residential buildings and free power lines, or temporary power grid lines, they must never be directly buried underground.

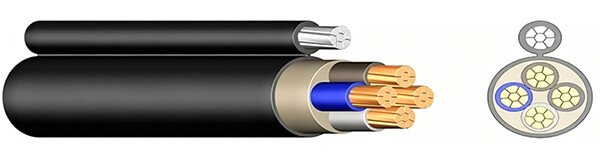

YMT Cable Construction

Conductor
Bare copper, solid or stranded
Insulation
Polyvinylchloride (PVC)
Carrier Wire
Galvanized stranded steel reinforced
Outer Sheath
Polyvinylchloride (PVC)

YMT Cable Characteristics

Voltage Rating
300 / 500 V
Temperature range
in motion: +5°C to +70°C
fixed: -40°C to +70°C
Bending radius (min.)
4 x diameter

YMT Cable Specifications

Number of cores and nominal cross section (mm²)	Copper figure (kg/km)	Overall measures appr. (mm)	Weight appr. (kg/km)
3 x 2,5 RE	75	12,5 x 20,5	190
4 x 10 RM	400	19,0 x 28,0	960
4 x 16 RM	640	22,0 x 32,0	1.32
5 x 2,5 RE	125	14,5 x 23,0	361
