0361TQ HOFR Cable

0361TQ HOFR cable is a flexible single core cable with double insulation and a flame retardant outer jacket used to transfer high currents from a welding machine to a welding tool.

0361TQ HOFR Cable Description

0361TQ HOFR cable has a rugged construction and is resistant to a variety of harsh environments, including oil, grease, high temperatures, and hot particles. The “HOFR” designation indicates that the cable is heat, oil, and flame resistant, making it suitable for demanding welding environments.

0361TQ cables are suitable for both automatic and manual welding and are widely used in industries such as manufacturing, assembly lines, and automotive repair. They can also be used in non-welding applications such as ground return conductors, power flexible pigtails, and busbar connections (such as our 0361TQ black welding cable)

0361TQ HOFR Cable Construction

	0361TQ Black Welding Cable	0361TQ Orange Welding Cable
CONDUCTOR	16mm² to 95mm²: Class 6 Extra Flexible Stranded Copper 120mm² and above: Class 5 Flexible Stranded Copper	16mm² to 95mm²: Class 6 Extra Flexible Stranded Tinned Copper 120mm² and above: Class 5 Flexible Stranded Tinned Copper
SEPARATOR	PET (Polyester Tape)
INSULATION	EPR (Ethylene Propylene Rubber)
OUTER SHEATH	HOFR (Heat and Oil Resistant and Flame Retardant)

0361TQ HOFR Cable Characteristics

Voltage Rating
100V (450V for non-welding applications if suitably protected from mechanical damage)
Temperature Rating
Flexed: -20ºC to +85°C
Minimum Bending Radius
Flexed: 6 x overall diameter

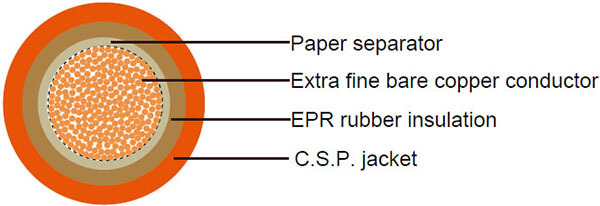

0361TQ Cable Diagram

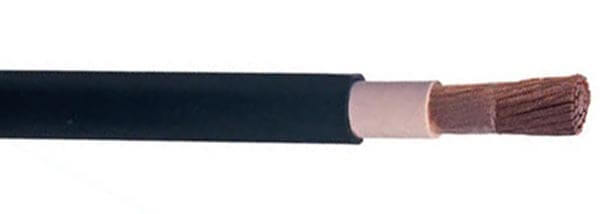

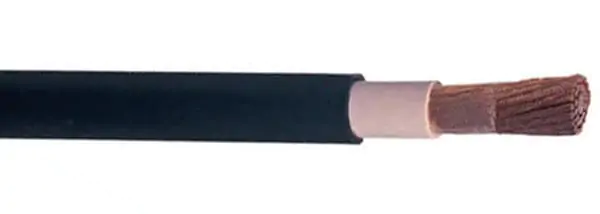

0361TQ Black Welding Cable

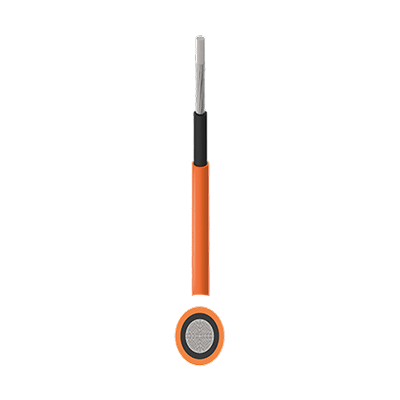

0361TQ Orange Welding Cable

CONDUCTOR CLASS	NOMINAL CROSS SECTIONAL AREA mm²	TOTAL RADIAL THICKNESS OF COVERING mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
6	16	2	9.7	215
6	25	2	11.2	305
6	35	2	12.4	400
6	50	2.2	14.3	587
6	70	2.4	16.3	775
6	95	2.6	18.6	1040
5	120	2.8	20.3	1256
5	150	3	22.6	1360
5	185	3.2	24.7	1875
5	240	3.4	27.8	2534

CONDUCTOR CLASS	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	TOTAL RADIAL THICKNESS OF COVERING mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
6	1	16	2	9.7	215
6	1	25	2	11.2	305
6	1	35	2	12.4	400
6	1	50	2	14.3	587
6	1	70	2.2	16.3	775
6	1	95	2.4	18.6	1040
5	1	120	2.6	20.3	1256
5	1	150	2.8	22.6	1360
5	1	185	3	24.7	1875
