Coil End Lead Type 4 Cable Description
Coil end lead type 4 cable manufactured to BS 6195 with flexible tinned copper conductor and ethylene propylene rubber (EPR) insulation which is heat, oil and flame retardant (HOFR).
Coil end leads are primarily used in motor and switchboard wiring, connecting the coil windings of motors, generators, transformers, circuit breakers and actuators. In some cases, they can be used as a replacement for tri- and bi-polar cables. They can also be used as anode cables in the railway industry.

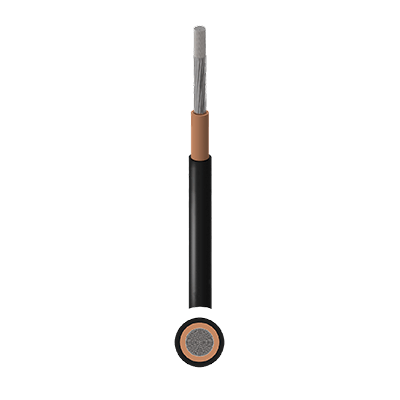

Coil End Lead Type 4 Cable Construction
- Conductor
- Class 5 Flexible Stranded Tinned Copper
- Separator
- PET (Polyester Tape)
- Insulation
- 4A, 4C, 4D, 4E, 4F: EPR-HOFR (Ethylene Propylene Rubber – Heat and Oil Resistant and Flame Retardant)
- Outer Sheath
- CPE (Chlorinated Polyethylene)
Coil End Lead Type 4 Cable Characteristics
- Voltage Rating Uo/U
- Type 4A: 300/500V
- Type 4C: 0.6/1kV
- Type 4D: 1.9/3.3kV
- Type 4E: 3.8/6.6kV
- Type 4F: 6.35/11kV
- Temperature Rating
- Fixed: -40°C to +90°C
- Flexed: -30°C to +90°C
- Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 6 x overall diameter
Coil End Lead Type 4 Cable Specifications
| CABLE TYPE | NO. OF CORES | VOLTAGE RATING KV | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 4A | 1 | 0.3/0.5 | 1.5 | 0.8 | 4 | 29 |
| 4A | 1 | 0.3/0.5 | 2.5 | 0.9 | 4.6 | 42 |
| 4A | 1 | 0.3/0.5 | 4 | 1 | 5.4 | 61 |
| 4A | 1 | 0.3/0.5 | 6 | 1 | 6.5 | 88 |
| 4A | 1 | 0.3/0.5 | 10 | 1.2 | 7.9 | 141 |
| 4C | 1 | 0.6/1 | 1.5 | 1.4 | 4.3 | 34 |
| 4C | 1 | 0.6/1 | 2.5 | 1.4 | 4.8 | 45 |
| 4C | 1 | 0.6/1 | 4 | 1.4 | 5.4 | 70 |
| 4C | 1 | 0.6/1 | 6 | 1.5 | 6.2 | 97 |
| 4C | 1 | 0.6/1 | 10 | 1.5 | 8.5 | 130 |
| 4C | 1 | 0.6/1 | 16 | 1.5 | 9.6 | 190 |
| 4C | 1 | 0.6/1 | 25 | 1.6 | 11.4 | 290 |
| 4C | 1 | 0.6/1 | 35 | 1.6 | 12.8 | 380 |
| 4C | 1 | 0.6/1 | 50 | 1.7 | 14.8 | 510 |
| 4C | 1 | 0.6/1 | 70 | 1.8 | 17.2 | 750 |
| 4C | 1 | 0.6/1 | 95 | 2 | 19.7 | 935 |
| 4C | 1 | 0.6/1 | 120 | 2.2 | 21.9 | 1160 |
| 4C | 1 | 0.6/1 | 150 | 2.3 | 24.1 | 1450 |
| 4C | 1 | 0.6/1 | 185 | 2.4 | 26.3 | 1770 |
| 4C | 1 | 0.6/1 | 240 | 2.4 | 28.3 | 2260 |
| 4C | 1 | 0.6/1 | 300 | 2.6 | 33 | 2760 |
| 4C | 1 | 0.6/1 | 400 | 2.8 | 37.4 | 3880 |
| 4C | 1 | 0.6/1 | 500 | 3.2 | 38 | 4650 |
| 4C | 1 | 0.6/1 | 630 | 3.3 | 43 | 6220 |
| 4D | 1 | 1.9/3.3 | 2.5 | 2.8 | 8.5 | 100 |
| 4D | 1 | 1.9/3.3 | 4 | 2.8 | 9.1 | 115 |
| 4D | 1 | 1.9/3.3 | 6 | 2.8 | 10.3 | 141 |
| 4D | 1 | 1.9/3.3 | 10 | 2.8 | 11.3 | 216 |
| 4D | 1 | 1.9/3.3 | 16 | 2.8 | 12.4 | 288 |
| 4D | 1 | 1.9/3.3 | 25 | 2.8 | 13.8 | 392 |
| 4D | 1 | 1.9/3.3 | 35 | 2.8 | 15.2 | 509 |
| 4D | 1 | 1.9/3.3 | 50 | 2.8 | 17.1 | 682 |
| 4D | 1 | 1.9/3.3 | 70 | 2.8 | 19.2 | 894 |
| 4D | 1 | 1.9/3.3 | 95 | 3 | 22 | 1168 |
| 4D | 1 | 1.9/3.3 | 120 | 3 | 23.5 | 1433 |
| 4D | 1 | 1.9/3.3 | 150 | 3 | 25.5 | 1734 |
| 4D | 1 | 1.9/3.3 | 185 | 3 | 27.5 | 2073 |
| 4D | 1 | 1.9/3.3 | 240 | 3 | 30.6 | 2657 |
| 4D | 1 | 1.9/3.3 | 300 | 3 | 33.8 | 3279 |
| 4D | 1 | 1.9/3.3 | 400 | 3 | 37.8 | 4229 |
| 4E | 1 | 3.8/6.6 | 16 | 5 | 17.2 | 408 |
| 4E | 1 | 3.8/6.6 | 25 | 5 | 18.6 | 527 |
| 4E | 1 | 3.8/6.6 | 35 | 5 | 20 | 656 |
| 4E | 1 | 3.8/6.6 | 50 | 5 | 22.1 | 832 |
| 4E | 1 | 3.8/6.6 | 70 | 5 | 24.2 | 1053 |
| 4E | 1 | 3.8/6.6 | 95 | 5 | 26.3 | 1304 |
| 4E | 1 | 3.8/6.6 | 120 | 5 | 27.8 | 1634 |
| 4E | 1 | 3.8/6.6 | 150 | 5 | 29.8 | 1894 |
| 4E | 1 | 3.8/6.6 | 185 | 5 | 32.1 | 2242 |
| 4E | 1 | 3.8/6.6 | 240 | 5 | 35.1 | 2842 |
| 4F | 1 | 6.35/11 | 25 | 7.6 | 24.1 | 764 |
| 4F | 1 | 6.35/11 | 35 | 7.6 | 25.5 | 911 |
| 4F | 1 | 6.35/11 | 50 | 7.6 | 27.3 | 1114 |
| 4F | 1 | 6.35/11 | 70 | 7.6 | 29.4 | 1344 |
| 4F | 1 | 6.35/11 | 95 | 7.6 | 31.5 | 1610 |
| 4F | 1 | 6.35/11 | 120 | 7.6 | 33.3 | 1919 |
| 4F | 1 | 6.35/11 | 150 | 7.6 | 35.3 | 2248 |
| 4F | 1 | 6.35/11 | 185 | 7.6 | 37.3 | 2616 |
| 4F | 1 | 6.35/11 | 240 | 7.6 | 40.3 | 3252 |
