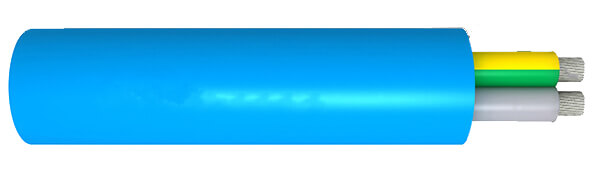

Drincable Cable Description
Drincable cables feature EPR (ethylene propylene rubber) insulation and an elastic cross-linked outer jacket, which is non-toxic and waterproof, ensuring water safety and integrity. They are commonly used in drinking water submersible pumps, water treatment systems, and other applications involving drinking water.
Drincable 600 and Drincable 800 represent immersion depths in drinking water of 600 meters and 800 meters respectively. Our Drincable cables feature a light blue outer jacket and are all round cables, but Drincable 600 can be supplied as a flat cable upon request.
Drincable cables are certified to meet stringent standards for drinking water contact, such as WRAS (UK), ACS (France), and Italian DM 174/04.
Drincable Cable Construction
| Drincable 600 Cable | Drincable 800 Cable | Drincable 600 Flat Cable | |
|---|---|---|---|
| VOLTAGE | 450/750V | 0.6/1kV | 450/750V |
| CONDUCTOR | Class 5 fine stranded tinned Copper | Class 5 fine stranded tinned copper | Class 5 flexible stranded tinned Copper |
| INSULATION | EPR (Ethylene Propylene Rubber) | ||
| OUTER SHEATH | Special XLPE (Cross-linked Polyethylene) compound | Elastomeric Cross-linked compound | Special XLPE (Cross-linked Polyethylene) compound |
Drincable Cable Characteristics
| Drincable 600 Cable | Drincable 800 Cable | Drincable 600 Flat Cable | |
|---|---|---|---|
| Voltage Rating Uo/U | 450/750V | 0.6/1kV | 450/750V |
| Test Voltage | 2.5kV | 4kV | 2.5kV |
| Temperature Rating | Fixed temperature range: -40ºC to +90ºC Flexed temperature range: -25ºC to +90ºC Maximum short circuit temperature: 250ºC | -25°C to +90°C | Fixed temperature range: -40ºC to +90ºC Flexed temperature range: -25ºC to +90ºC Maximum short circuit temperature: 250ºC |
| Maximum Water Temperature | - | +80°C | - |
| Minimum Bending Radius | Circular Fixed: 3 x overall diameter Circular Flexed: 5 x overall diameter Flat Fixed: Height<12mm 3 x H Flat Flexed: Height>12mm 4 x H | Fixed: 3 x overall diameter Flexed: 5 x overall diameter | Flat Fixed: Height<12mm 3 x H Flat Flexed: Height>12mm 4 x H |
Drincable Cable Applications
- Submersible pumps for drinking water
- Water treatment and purification systems
- Aquariums and fish-ponds
- Food and beverage processing
- Swimming pool lighting and filtration systems
- Drincable 600 Cable

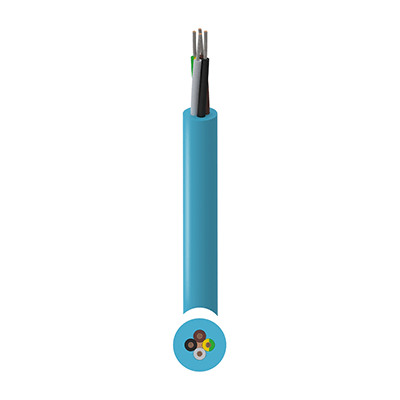

- Drincable 800 Cable

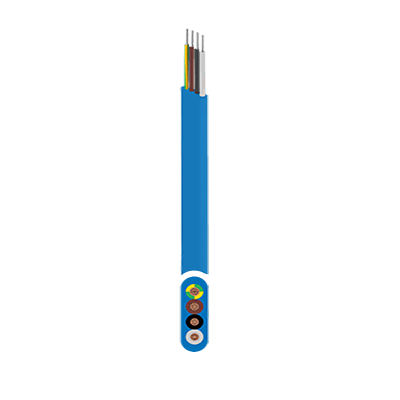

- Drincable 600 Flat Cable
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | MAXIMUM TENSILE LOAD N |
|
|---|---|---|---|---|---|---|
| Minimum | Maximum | |||||
| 1 | 1.5 | 1.5 | 5.7 | 6.6 | 45 | 23 |
| 1 | 2.5 | 1.9 | 5.9 | 6.8 | 55 | 38 |
| 1 | 4 | 2.4 | 6.5 | 7.5 | 75 | 60 |
| 1 | 6 | 2.9 | 7.4 | 8.4 | 100 | 90 |
| 1 | 10 | 3.8 | 8.6 | 9.7 | 150 | 150 |
| 1 | 16 | 4.9 | 10 | 11.1 | 210 | 240 |
| 1 | 25 | 6.1 | 11.9 | 13.1 | 310 | 375 |
| 1 | 35 | 7.2 | 13 | 14.3 | 400 | 525 |
| 1 | 50 | 8.9 | 15.7 | 17.1 | 590 | 750 |
| 1 | 70 | 10.6 | 17.8 | 19.3 | 790 | 1050 |
| 1 | 95 | 12.3 | 20.7 | 22.7 | 1050 | 1425 |
| 1 | 120 | 14.2 | 22.2 | 24.3 | 1280 | 1800 |
| 1 | 150 | 15.5 | 24 | 26.1 | 1570 | 2250 |
| 1 | 185 | 17 | 28 | 30.3 | 1980 | 2775 |
| 1 | 240 | 19.5 | 31.1 | 33.6 | 2500 | 3600 |
| 1 | 300 | 22.2 | 34.4 | 37.1 | 3110 | 4500 |
| 2 | 1.5 | 1.5 | 9 | 10 | 110 | 45 |
| 2 | 2.5 | 1.9 | 10.7 | 11.8 | 160 | 75 |
| 2 | 4 | 2.4 | 12.1 | 13.2 | 210 | 120 |
| 2 | 6 | 2.9 | 13.6 | 14.8 | 280 | 180 |
| 2 | 10 | 3.8 | 18.3 | 19.7 | 490 | 300 |
| 2 | 16 | 4.9 | 20.5 | 22.6 | 670 | 480 |
| 2 | 25 | 6.1 | 24.4 | 26.7 | 970 | 750 |
| 3 | 1.5 | 1.5 | 9.7 | 10.7 | 140 | 68 |
| 3 | 2.5 | 1.9 | 11.5 | 12.6 | 190 | 113 |
| 3 | 4 | 2.4 | 13 | 14.2 | 260 | 180 |
| 3 | 6 | 2.9 | 14.6 | 15.9 | 350 | 270 |
| 3 | 10 | 3.8 | 19.7 | 21.2 | 610 | 450 |
| 3 | 16 | 4.9 | 22.1 | 24.3 | 840 | 720 |
| 3 | 25 | 6.1 | 26.3 | 28.7 | 1220 | 1125 |
| 3 | 35 | 6.1 | 26.3 | 28.7 | 1220 | 1125 |
| 3 | 50 | 8.9 | 33.8 | 36.5 | 2210 | 2250 |
| 3 | 70 | 10.6 | 37.9 | 40.8 | 2930 | 3150 |
| 3 | 95 | 12.3 | 43.5 | 47.3 | 3840 | 4275 |
| 3 | 120 | 14.2 | 47.5 | 51.5 | 4730 | 5400 |
| 3 | 150 | 15.5 | 51.8 | 56.3 | 5870 | 6750 |
| 3 | 185 | 17 | 56.5 | 61.2 | 7090 | 7325 |
| 4 | 1.5 | 1.5 | 10.7 | 11.8 | 170 | 90 |
| 4 | 2.5 | 1.9 | 12.7 | 13.9 | 240 | 150 |
| 4 | 4 | 2.4 | 14.3 | 15.5 | 320 | 240 |
| 4 | 6 | 2.9 | 16.3 | 17.6 | 440 | 360 |
| 4 | 10 | 3.8 | 21.5 | 23.6 | 760 | 600 |
| 4 | 16 | 4.9 | 24.2 | 26.5 | 1050 | 960 |
| 4 | 25 | 6.1 | 29.2 | 31.7 | 1560 | 1500 |
| 4 | 35 | 7.2 | 32 | 34.7 | 2000 | 2100 |
| 4 | 50 | 8.9 | 39.2 | 42.2 | 2970 | 3000 |
| 4 | 70 | 10.6 | 42.2 | 45.9 | 3770 | 4200 |
| 4 | 95 | 12.3 | 48.9 | 52.9 | 4980 | 5700 |
| 4 | 120 | 14.2 | 53 | 57.2 | 6080 | 7200 |
| 4 | 150 | 15.5 | 57.9 | 62.7 | 7570 | 9000 |
| 4 | 185 | 17 | 63.2 | 68.6 | 9180 | 111000 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|
| 1 | 1.5 | 5.55 | 35 |
| 1 | 2.5 | 6.2 | 55 |
| 1 | 4 | 7 | 70 |
| 1 | 6 | 7.8 | 100 |
| 1 | 10 | 9.3 | 155 |
| 1 | 16 | 10.2 | 215 |
| 1 | 25 | 11.7 | 305 |
| 1 | 35 | 13.2 | 380 |
| 1 | 50 | 15.3 | 570 |
| 1 | 70 | 17.6 | 795 |
| 1 | 95 | 19.7 | 1030 |
| 1 | 120 | 22.2 | 1305 |
| 1 | 150 | 24.1 | 1590 |
| 1 | 185 | 26.7 | 1980 |
| 1 | 240 | 29.8 | 2560 |
| 1 | 300 | 32.9 | 3180 |
| 1 | 400 | 36.5 | 4050 |
| 1 | 500 | 41.7 | 4990 |
| 3G | 1.5 | 9.3 | 110 |
| 3G | 2.5 | 10.6 | 180 |
| 3G | 4 | 11.8 | 225 |
| 3G | 6 | 13.1 | 295 |
| 3G | 10 | 16.9 | 480 |
| 3G | 16 | 19.2 | 680 |
| 3G | 25 | 23.7 | 995 |
| 3G | 35 | 26.6 | 1325 |
| 3G | 50 | 31.3 | 1890 |
| 3G | 70 | 35.9 | 2620 |
| 3G | 95 | 40.2 | 3225 |
| 3G | 120 | 45.7 | 4130 |
| 3G | 150 | 50.6 | 5115 |
| 3G | 185 | 55.1 | 6200 |
| 3G | 240 | 62 | 7850 |
| 3G | 300 | 69 | 10050 |
| 4G | 1.5 | 10.2 | 135 |
| 4G | 2.5 | 11.8 | 200 |
| 4G | 4 | 13.2 | 270 |
| 4G | 6 | 14.6 | 380 |
| 4G | 10 | 18.8 | 630 |
| 4G | 16 | 21.1 | 870 |
| 4G | 25 | 26.3 | 1310 |
| 4G | 35 | 29.4 | 1725 |
| 4G | 50 | 34.7 | 2490 |
| 4G | 70 | 39.8 | 3420 |
| 4G | 95 | 45.4 | 4480 |
| 4G | 120 | 50.6 | 5605 |
| 4G | 150 | 56.1 | 6985 |
| 4G | 185 | 61.6 | 8465 |
| 4G | 240 | 68.9 | 10900 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | HEIGHT mm | WIDTH mm | NOMINAL WEIGHT kg/km | MAXIMUM TENSILE LOAD N |
||
|---|---|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | |||||
| 3 | 6 | 2.9 | 7.5 | 8.5 | 17.5 | 18.5 | 300 | 270 |
| 3 | 10 | 3.8 | 9.9 | 10.9 | 22.9 | 23.9 | 490 | 450 |
| 3 | 16 | 4.9 | 12 | 13 | 28 | 29 | 730 | 720 |
| 3 | 25 | 6.1 | 14 | 15 | 33 | 34 | 1060 | 1125 |
| 3 | 35 | 7.2 | 16 | 17.5 | 37 | 38.7 | 1430 | 1575 |
| 3 | 50 | 8.9 | 18.5 | 20 | 44.1 | 45.8 | 2010 | 2250 |
| 3 | 70 | 10.6 | 20.5 | 22 | 50.5 | 52.5 | 2680 | 3150 |
| 3 | 95 | 12.3 | 23.1 | 23.9 | 57.1 | 57.9 | 3380 | 4275 |
| 3 | 120 | 14.2 | 25.1 | 25.9 | 62.1 | 62.9 | 4160 | 5400 |
| 3 | 150 | 15.5 | 26.8 | 27.6 | 67.2 | 68 | 5080 | 6750 |
| 3 | 185 | 17 | 28.6 | 29.4 | 72.6 | 73.4 | 6110 | 8325 |
| 4 | 4 | 2.4 | 8 | 9 | 23 | 24 | 350 | 240 |
| 4 | 6 | 2.9 | 8.5 | 9.5 | 24.5 | 25.5 | 440 | 360 |
| 4 | 10 | 3.8 | 10 | 11 | 29.5 | 30.5 | 640 | 600 |
| 4 | 16 | 4.9 | 12 | 13 | 34.5 | 35.5 | 940 | 960 |
| 4 | 25 | 6.1 | 15.8 | 17.2 | 42.1 | 43.5 | 1500 | 1500 |
| 4 | 35 | 7.2 | 18.6 | 19.4 | 48.6 | 49.8 | 1990 | 2100 |
| 4 | 50 | 8.9 | 19.4 | 20.2 | 56.8 | 57.6 | 2650 | 3000 |
| 4 | 70 | 10.6 | 24 | 24.8 | 65.4 | 66.6 | 3720 | 4200 |
| 4 | 95 | 12.3 | 25.6 | 26.4 | 73 | 74.2 | 4680 | 5700 |
| 4 | 120 | 14.2 | 24.3 | 25.1 | 73.8 | 75 | 5260 | 7200 |
