(N)SHÖU Cable Description
(N)SHÖU cables are rated for 600/1000V and feature Category 5 flexible stranded copper conductors, a rubber compound insulation layer, and a heavy-duty rubber compound outer sheath, offering oil, UV resistance, tear resistance, and water resistance.
(N)SHÖU cables are designed for harsh environments and are used in open-pit mining, construction sites, port cranes, and other applications.

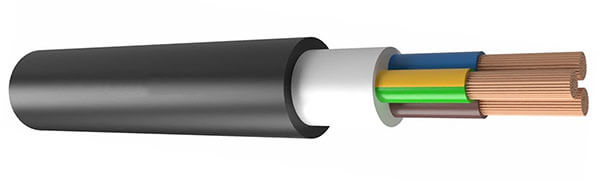

(N)SHÖU Cable Construction
- Phase Conductor
- Class 5 flexible copper
- Insulation
- Rubber compound
- Inner Sheath
- Rubber compound
- Outer Sheath
- Heavy duty rubber compound
(N)SHÖU Cable Characteristics
- Voltage Rating Uo/U
- 0.6/1kV
- Ambient Temperature
- Fixed: -40°C to +80°C
- Flexed: -25°C to +80°C
- Maximum Short Circuit Temperature
- +250°C
- Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 5 x overall diameter
(N)SHÖU Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|---|
| 3 | 1.5 | 1.5 | 9.7 | 10.3 | 68 | 141 |
| 3 | 2.5 | 1.9 | 11.1 | 11.7 | 113 | 200 |
| 3 | 4 | 2.4 | 13.2 | 13.8 | 180 | 297 |
| 3 | 6 | 2.9 | 14.4 | 15 | 270 | 381 |
| 3 | 10 | 3.8 | 17.4 | 18.5 | 450 | 590 |
| 3 | 16 | 4.8 | 19.5 | 20.6 | 720 | 797 |
| 3 | 25 | 6.1 | 23.7 | 24.8 | 1125 | 1206 |
| 3 | 35 | 7.2 | 26.6 | 27.7 | 1575 | 1649 |
| 3 | 50 | 8.9 | 31.8 | 33 | 2250 | 2195 |
| 3 | 70 | 10.6 | 35.3 | 36.5 | 3150 | 3124 |
| 3 | 95 | 12.3 | 40.9 | 42.6 | 4275 | 4100 |
| 3 | 120 | 13.8 | 43.4 | 45.1 | 5400 | 4723 |
| 3 | 150 | 15.5 | 47.8 | 49.5 | 6750 | 5916 |
| 3 | 185 | 17 | 53.1 | 55.4 | 8325 | 7271 |
| 4 | 1.5 | 1.5 | 10.5 | 11.1 | 90 | 173 |
| 4 | 2.5 | 1.9 | 12.9 | 13.5 | 150 | 274 |
| 4 | 4 | 2.4 | 14.3 | 14.9 | 240 | 356 |
| 4 | 6 | 2.9 | 15.7 | 16.3 | 360 | 459 |
| 4 | 10 | 3.8 | 19.1 | 20.2 | 600 | 729 |
| 4 | 16 | 4.8 | 22 | 23.1 | 960 | 1038 |
| 4 | 25 | 6.1 | 27 | 28.1 | 1500 | 1576 |
| 4 | 35 | 7.2 | 29.2 | 30.4 | 2100 | 2078 |
| 4 | 50 | 8.9 | 35 | 36.2 | 3000 | 2967 |
| 4 | 70 | 10.6 | 38.8 | 40.5 | 4200 | 3931 |
| 4 | 95 | 12.3 | 45.1 | 46.8 | 5700 | 5165 |
| 4 | 120 | 13.8 | 50 | 51.8 | 7200 | 6152 |
| 4 | 150 | 15.5 | 55 | 57.3 | 9000 | 7537 |
| 4 | 185 | 17 | 61 | 63.3 | 11100 | 9420 |
| 5 | 1.5 | 1.5 | 11.4 | 12 | 113 | 214 |
| 5 | 2.5 | 1.9 | 14 | 14.6 | 188 | 328 |
| 5 | 4 | 2.4 | 15.6 | 16.2 | 300 | 434 |
| 5 | 6 | 2.9 | 17.5 | 18.6 | 450 | 594 |
| 5 | 10 | 3.8 | 20.9 | 22 | 750 | 898 |
| 5 | 16 | 4.8 | 24.1 | 25.2 | 1200 | 1283 |
| 5 | 25 | 6.1 | 29.6 | 30.8 | 1875 | 1965 |
| 7 | 1.5 | 1.5 | 14.5 | 15.1 | 158 | 313 |
| 7 | 2.5 | 1.9 | 16.8 | 17.4 | 263 | 461 |
| 12 | 1.5 | 1.5 | 16.8 | 17.4 | 270 | 422 |
| 12 | 2.5 | 1.9 | 19.5 | 20.6 | 450 | 653 |
| 18 | 1.5 | 1.5 | 19.4 | 20.5 | 405 | 613 |
| 18 | 2.5 | 1.9 | 23.3 | 24.4 | 675 | 922 |
| 24 | 1.5 | 1.5 | 20.9 | 22 | 540 | 752 |
| 24 | 2.5 | 1.9 | 25.2 | 26.3 | 900 | 1147 |
(N)SHÖU Cable 3+3 Cores Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | ||||||
| 3 + 3 | 50 | 25/3E | 8.9 | 32.3 | 33.5 | 2250 | 2481 |
| 3 + 3 | 70 | 35/3E | 10.6 | 35.7 | 37.4 | 3150 | 3319 |
| 3 + 3 | 95 | 50/3E | 12.3 | 41.5 | 43.2 | 4275 | 4324 |
| 3 + 3 | 120 | 70/3E | 13.8 | 45 | 46.7 | 5400 | 5476 |
| 3 + 3 | 150 | 70/3E | 15.5 | 49.5 | 51.3 | 6750 | 6468 |
| 3 + 3 | 185 | 95/3E | 17 | 54.9 | 57.2 | 8325 | 8298 |
| 3 + 3 | 240 | 120/3E | 19.5 | 60.9 | 63.2 | 10800 | 10473 |
