(N)SSHÖU Cable Description
NSSHÖU cable is a heavy-duty, highly flexible rubber power cable with flame-retardant, oil-resistant, and abrasion-resistant properties, maintaining durability in harsh, humid, and oily environments. It is suitable for humid/immersed environments in various water bodies (fresh water, salt water, oily water, sewage).
This cable is specifically designed for heavy drilling and tunneling equipment and can be used as a power source for applications where high mechanical stress and abrasion are expected.

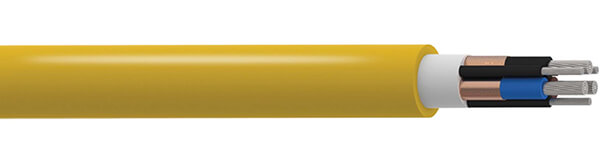

(N)SSHÖU Cable Construction
- Conductor
- Class 5 Flexible Stranded Tinned Copper
- Insulation
- Rubber Compound
- Individual Core Screen
- Up to 10mm2: Copper Braid
- Above 16mm2: Copper Wires
- Control Conductors
- Class 5 Flexible Stranded Tinned Copper
- Inner Sheath
- Rubber Compound
- Outer Sheath
- Rubber
(N)SSHÖU Cable Characteristics
- Voltage Rating (Uo/U)
- 0.6/1kV
- Ambient Temperature
- Fixed: -40°C to +80°C
- Flexed: -25°C to +80°C
- Maximum Short Circuit Temperature
- +250°C
- Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 5 x overall diameter
- Submersible
- 100m
(N)SSHÖU Cable Specification
| NO.OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|---|---|---|---|---|---|
| 1 | 1.5 | 1.5 | 6.3 | 7 | 60 |
| 1 | 2.5 | 1.9 | 7 | 7.7 | 75 |
| 1 | 4 | 2.4 | 7.6 | 8.3 | 95 |
| 1 | 6 | 2.9 | 8.2 | 8.9 | 120 |
| 1 | 10 | 3.8 | 9.5 | 10.2 | 180 |
| 1 | 16 | 4.8 | 10.5 | 11.2 | 245 |
| 1 | 25 | 6.1 | 13 | 13.7 | 375 |
| 1 | 35 | 7.2 | 14.1 | 14.8 | 480 |
| 1 | 50 | 8.9 | 16.2 | 16.9 | 660 |
| 1 | 70 | 10.6 | 18.3 | 19 | 875 |
| 1 | 95 | 12.5 | 20.5 | 21.7 | 1150 |
| 1 | 120 | 14.2 | 22.8 | 24 | 1430 |
| 1 | 150 | 15.9 | 25 | 26.2 | 1750 |
| 1 | 185 | 17.7 | 28.2 | 29.4 | 2180 |
| 1 | 240 | 20.1 | 31.1 | 32.3 | 2770 |
| 1 | 300 | 22.5 | 34.9 | 36.1 | 3510 |
| 3 | 1.5 | 1.5 | 11.7 | 12.3 | 190 |
| 3 | 2.5 | 1.9 | 13.1 | 13.7 | 255 |
| 3 | 4 | 2.4 | 15.6 | 16.2 | 375 |
| 3 | 6 | 2.9 | 16.8 | 17.4 | 465 |
| 3 | 10 | 3.8 | 20.2 | 21.3 | 710 |
| 3 | 16 | 4.8 | 22.3 | 23.4 | 930 |
| 3 | 25 | 6.1 | 26.9 | 28 | 1390 |
| 3 | 35 | 7.2 | 30.2 | 31.4 | 1880 |
| 3 | 50 | 8.9 | 35.8 | 37 | 2500 |
| 3 | 70 | 10.6 | 39.3 | 40.5 | 3460 |
| 3 | 95 | 12.5 | 45.7 | 47.4 | 4570 |
| 3 | 120 | 14.2 | 48.2 | 49.9 | 5220 |
| 3 | 150 | 15.9 | 52.6 | 54.4 | 6460 |
| 3 | 185 | 17.7 | 58.7 | 61 | 7980 |
| 4 | 1.5 | 1.5 | 12.5 | 13.1 | 225 |
| 4 | 2.5 | 1.9 | 15.3 | 15.9 | 350 |
| 4 | 4 | 2.4 | 16.7 | 17.3 | 440 |
| 4 | 6 | 2.9 | 18.1 | 18.7 | 550 |
| 4 | 10 | 3.8 | 21.9 | 23 | 860 |
| 4 | 16 | 4.8 | 25.2 | 26.3 | 1210 |
| 4 | 25 | 6.1 | 30.6 | 31.8 | 1810 |
| 4 | 35 | 7.2 | 32.8 | 34 | 2330 |
| 4 | 50 | 8.9 | 39 | 40.2 | 3300 |
| 4 | 70 | 10.6 | 42.8 | 44.5 | 4300 |
| 4 | 95 | 12.5 | 49.9 | 51.7 | 5680 |
| 4 | 120 | 14.2 | 55.6 | 57.4 | 6820 |
| 4 | 150 | 15.9 | 60.6 | 62.9 | 8270 |
| 4 | 185 | 17.7 | 67.4 | 69.7 | 10350 |
| 5 | 1 | 1.5 | 13.4 | 14 | 270 |
| 5 | 2 | 1.9 | 16.4 | 17 | 410 |
| 5 | 4 | 2.4 | 18 | 18.6 | 525 |
| 5 | 6 | 2.9 | 20.3 | 21.4 | 715 |
| 5 | 10 | 3.8 | 23.7 | 24.8 | 1040 |
| 5 | 16 | 4.8 | 27.3 | 28.4 | 1470 |
| 5 | 25 | 6.1 | 33.2 | 34.4 | 2220 |
| 7 | 1.5 | 1.5 | 16.9 | 17.5 | 400 |
| 7 | 2.5 | 1.9 | 19.2 | 19.8 | 560 |
| 12 | 1.5 | 1.5 | 19.6 | 20.2 | 540 |
| 12 | 2.5 | 1.9 | 22.3 | 23.4 | 790 |
| 18 | 1.5 | 1.5 | 22.2 | 23.3 | 750 |
| 18 | 2.5 | 1.9 | 26.5 | 27.6 | 1110 |
| 24 | 1.5 | 1.5 | 23.7 | 25.1 | 900 |
| 24 | 2.5 | 1.9 | 28.4 | 29.6 | 1350 |
Including Earth Cores
| NO.OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | |||||
| 3+3 | 50 | 25/3E | 8.9 | 36.3 | 37.5 | 2790 |
| 3+3 | 70 | 35/3E | 10.6 | 39.7 | 41.4 | 3660 |
| 3+3 | 95 | 50/3E | 12.5 | 46.3 | 48 | 4800 |
| 3+3 | 120 | 70/3E | 14.2 | 48.5 | 50.3 | 5990 |
| 3+3 | 150 | 70/3E | 15.9 | 54.3 | 56.1 | 7030 |
| 3+3 | 185 | 95/3E | 17.7 | 61.7 | 64 | 9030 |
| 3+3 | 240 | 120/3E | 20.1 | 66.5 | 68.8 | 11280 |
Individual Core Screen
| NO.OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
|
|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | |||||
| 3+3 | 2.5 | 2.5/3E | 1.9 | 16.2 | 16.9 | 370 |
| 3+3 | 4 | 4/3E | 2.4 | 17.7 | 18.4 | 490 |
| 3+3 | 6 | 6/3E | 2.9 | 18.9 | 19.6 | 590 |
| 3+3 | 10 | 10/3E | 3.8 | 22.4 | 23.5 | 890 |
| 3+3 | 16 | 16/3E | 4.8 | 26.6 | 27.7 | 1260 |
| 3+3 | 25 | 16/3E | 6.1 | 29.9 | 31.1 | 1700 |
| 3+3 | 35 | 16/3E | 7.2 | 33.9 | 35.1 | 2100 |
| 3+3 | 50 | 25/3E | 8.9 | 39.8 | 41.5 | 3060 |
| 3+3 | 70 | 35/3E | 10.6 | 43.4 | 45.1 | 3940 |
| 3+3 | 95 | 50/3E | 12.5 | 50 | 51.8 | 5240 |
| 3+3 | 120 | 70/3E | 14.2 | 54.1 | 55.9 | 6580 |
| 3+3 | 150 | 70/3E | 15.9 | 59.7 | 62 | 7590 |
| 3+3 | 185 | 95/3E | 17.7 | 66.1 | 68.4 | 9400 |
Individual Core Screen and Control Conductors
| VOLTAGE kV | NO.OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
||
|---|---|---|---|---|---|---|---|---|
| Phase Conductor | Earth Conductor | Control Conductor | ||||||
| 0.6/1 | 3+3+3 | 2.5 | 2.5/3E | 1.5ST | 1.9 | 16.2 | 18.1 | 425 |
| 0.6/1 | 3+3+3 | 4 | 4/3E | 1.5ST | 2.4 | 17.7 | 19.6 | 540 |
| 0.6/1 | 3+3+3 | 6 | 6/3E | 1.5ST | 2.9 | 18.9 | 20.3 | 640 |
| 0.6/1 | 3+3+3 | 10 | 10/3E | 2.5ST | 3.8 | 22.4 | 23.5 | 940 |
| 0.6/1 | 3+3+3 | 16 | 16/3E | 2.5ST | 4.8 | 26.6 | 27.7 | 1310 |
| 0.6/1 | 3+3+3 | 25 | 16/3E | 2.5ST | 6.1 | 29.9 | 31.1 | 1800 |
| 0.6/1 | 3+3+3 | 35 | 16/3E | 2.5ST | 7.2 | 33.9 | 35.1 | 2230 |
| 0.6/1 | 3+3+3 | 50 | 25/3E | 2.5ST | 8.9 | 39.8 | 41.5 | 3160 |
| 0.6/1 | 3+3+3 | 70 | 35/3E | 2.5ST | 10.6 | 43.4 | 45.1 | 4210 |
| 0.6/1 | 3+3+3 | 95 | 50/3E | 2.5ST | 12.5 | 50 | 51.8 | 5520 |
| 0.6/1 | 3+3+3 | 120 | 70/3E | 2.5ST | 14.2 | 54.1 | 55.9 | 6730 |
| 0.6/1 | 3+3+3 | 150 | 70/3E | 2.5ST | 15.9 | 59.7 | 62 | 7740 |
| 0.6/1 | 3+3+3 | 185 | 95/3E | 2.5ST | 17.7 | 66.1 | 68.4 | 9700 |
