Airport Pavement Cable Description
Airport pavement cables feature PVC insulation and a robust polyamide (nylon) outer sheath, offering high resistance to UV rays, oil, and abrasion. They are ideal for auxiliary circuits in airport lighting and are designed to withstand the harsh environments of apron, runway, and taxiway surfaces.

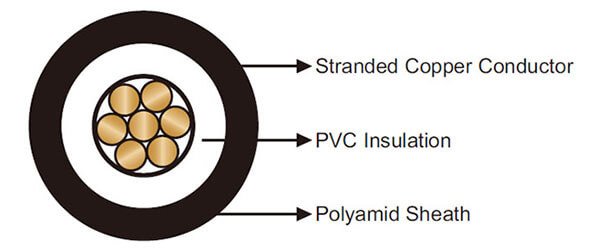

Airport Pavement Cable Construction
- Conductor
- Stranded annealed tinned or bare copper wires
- Insulation
- PVC insulation (85 °C) Colourless
- Outer Jacket
- Polyamide (Nylon) Compound
Airport Pavement Cable Characteristics
- Rated Voltage
- 600 V
- Bending Radius
- 5 x Outer Diameter
- Operating Temperature
- -40ºC / +85ºC
- Standards
- FAA Specification for L 824 – AC No. 150 / 5345-7F
Airport Pavement Cable Specifications
| Cross Section | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) | Max Resistance of Conductors at 20℃ (ohm / km) | Current Carrying Capacity at 30℃ (A) |
|---|---|---|---|---|
| 1x4 mm² | 4,5 | 49 | 4,61 | 38 |
