NF C33-224 & NF C33-225

NF C33-224 and NF C33-225 Cable Description

These cables feature copper conductors, copper tape shielding, XLPE insulation, and an outer sheath, providing shock and weather resistance. They are used to connect main lighting equipment series circuits, constant current regulators, and isolation transformers.

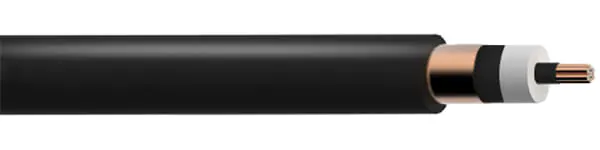

NF C33-224 and NF C33-225 Cable Construction

Conductor
Stranded bare or tinned copper conductor
Insulation
XLPE (Cross-linked Polyethylene) – EPDM on request
Shield
Copper tape shield – Copper wire screen on request.
Sheath
XLPE (Cross-linked Polyethylene) – PVC/HFFR/CR on request.

NF C33-224 and NF C33-225 Cable Characteristics

Rated Voltage Uo/U (Um)
3.6/6 (7.2kV)
6/10 (12kV)
Temperature Rating
Fixed: -20°C to +70°C
Minimum Bending Radius
Static: 10 x Overall Diameter
Dynamic: 20 x Overall Diameter

NF C33-224 and NF C33-225 Cable Specifications

VOLTAGE kV	NOMINAL CROSS SECTIONAL AREA mm²	NO. OF STRANDS	NOMINAL INSULATION THICKNESS mm	NOMINAL SHEATH THICKNESS mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
3.6/6	6	7	2.7	1.4	12.5	198
6/10	6	7	3.6	1.6	14.7	250
