F-2YA2Y / F-2YC2Y

F-2YA2Y / F-2YC2Y Cable Description

This type of cable features a solid bare copper conductor, polyethylene (PE) insulation, and an outer sheath, providing excellent protection against moisture, weather, and UV damage. It is suitable for fixed installation environments, such as underground, in conduits, or cable trenches.

The F-2YA2Y uses aluminum foil shielding with a grounding wire, while the F-2YC2Y uses copper tape shielding, offering superior mechanical protection and better electromagnetic interference (EMI) blocking performance.

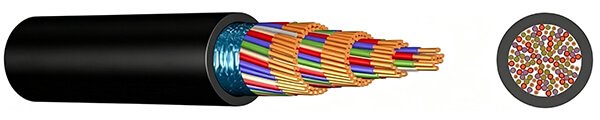

f-2ya2y

F-2YA2Y / F-2YC2Y Cable Construction

Conductor
Solid bare copper
Insulation
Polyethylene (PE)
Screen
F-2YA2Y: plastic laminated aluminium foil with drain wire
F-2YC2Y: copper tape
Outer sheath
Polyethylene (PE)

F-2YA2Y / F-2YC2Y Cable Characteristics

Operating Voltage
Peak working voltage up to 300 V
Temperature range
in motion: -20°C to +90°C
Bending radius
in motion: 15 x diameter

F-2YA2Y Cable
F-2YC2Y Cable

Number of pairs and nominal conductor diameter (mm)	Copper figure (kg/km)	Insulation thickness (mm)	Overall diameter appr. (mm)	Weight appr. (kg/km)
2 x 2 x 0,6	13	1,8	7,1	46
6 x 2 x 0,6	36	1,8	9,3	86
10 x 2 x 0,6	59	1,8	10,5	120
20 x 2 x 0,6	115	1,8	14,2	210
30 x 2 x 0,6	172	1,8	16,5	280
40 x 2 x 0,6	228	1,8	17,0	355
50 x 2 x 0,6	285	1,8	18,5	425
60 x 2 x 0,6	342	1,8	19,5	485
100 x 2 x 0,6	568	2,0	26,5	820
2 x 2 x 0,8	22	1,8	7,6	65
6 x 2 x 0,8	62	1,8	10,4	130
10 x 2 x 0,8	103	1,8	12,2	190
20 x 2 x 0,8	203	1,8	16,4	330
30 x 2 x 0,8	304	1,8	18,2	460
40 x 2 x 0,8	404	1,8	19,8	580
50 x 2 x 0,8	504	2,0	21,6	700
60 x 2 x 0,8	606	2,0	23,1	780
100 x 2 x 0,8	1.008	2,0	31,3	1.350

Number of pairs and nominal conductor diameter (mm)	Copper figure (kg/km)	Insulation thickness (mm)	Overall diameter appr. (mm)	Weight appr. (kg/km)
2 x 2 x 0,6	31,5	1,8	8,6	78
6 x 2 x 0,6	70,0	1,8	10,1	110
10 x 2 x 0,6	97,0	1,8	11,5	150
20 x 2 x 0,6	173,0	1,8	15,0	250
30 x 2 x 0,6	242,0	1,8	16,5	320
40 x 2 x 0,6	304,5	1,8	17,8	400
50 x 2 x 0,6	370,5	1,8	19,2	480
60 x 2 x 0,6	433,0	1,8	19,9	550
100 x 2 x 0,6	682,0	2,0	25,0	865
2 x 2 x 0,8	50,0	1,8	8,3	95
6 x 2 x 0,8	104,5	1,8	11,5	150
10 x 2 x 0,8	160,0	1,8	13,0	205
20 x 2 x 0,8	279,0	1,8	17,5	360
30 x 2 x 0,8	392,0	1,8	19,5	485
40 x 2 x 0,8	500,5	1,8	21,0	605
50 x 2 x 0,8	614,5	2,0	23,0	732
60 x 2 x 0,8	725,0	2,0	23,6	865
100 x 2 x 0,8	1.161,0	2,0	33,0	1.390
