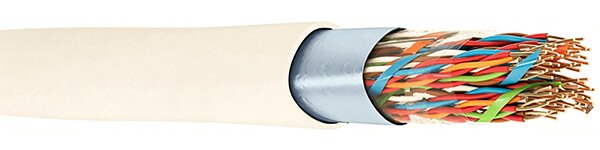

JE-2Y(St)H Cable Description
Featuring solid bare copper conductors, polyethylene (PE) insulation, an overall electrostatic shield, and a low-smoke, halogen-free (LSZH) sheath, JE-2Y(St)H cables are commonly deployed in ADSL and VDSL network infrastructure.
This cable is designed for indoor installation—including in dry or damp rooms and for routing beneath plaster—but is not suitable for direct outdoor burial. It is intended to protect personnel, valuables, and sensitive equipment from corrosive gases in the event of a fire.
JE-2Y(St)H Cable Construction
- Conductor
- Electrolytic solid copper
- Insulation
- PE(Polyethylene)
- Screen
- Plastic-laminated aluminum foil paired with a tinned copper drain wire
- Outer Sheath
- Flame-retardant, halogen-free(LSOH/LSZH compound)
JE-2Y(St)H Cable Characteristics
- Temperature Range
- -40°C ~ +70°C
- Bending Radius
- 10 x D
JE-2Y(St)H Cable Specification
| Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|
| 2 | 0,4 | 3,9 | 6,2 | 19 |
| 4 | 0,4 | 5,2 | 11,1 | 31 |
| 8 | 0,4 | 6,9 | 21 | 52 |
| 12 | 0,4 | 9,4 | 30,8 | 77 |
| 16 | 0,4 | 11 | 40,7 | 96 |
| 20 | 0,4 | 12 | 50,6 | 116 |
| 24 | 0,4 | 13 | 60,4 | 139 |
| 32 | 0,4 | 14 | 80,1 | 171 |
| 40 | 0,4 | 15 | 99,9 | 207 |
| 48 | 0,4 | 16 | 119,6 | 243 |
| 56 | 0,4 | 17 | 139,3 | 277 |
| 64 | 0,4 | 18 | 159 | 314 |
| 96 | 0,4 | 22 | 237,9 | 451 |
| 2 | 0,51 | 4,3 | 9,1 | 25 |
| 4 | 0,51 | 5,8 | 16,9 | 41 |
| 8 | 0,51 | 7,8 | 32,5 | 70 |
| 12 | 0,51 | 11 | 48,2 | 101 |
| 16 | 0,51 | 12 | 63,8 | 130 |
| 20 | 0,51 | 13 | 79,4 | 158 |
| 24 | 0,51 | 15 | 95,1 | 189 |
| 32 | 0,51 | 15 | 126,3 | 234 |
| 40 | 0,51 | 17 | 157,6 | 285 |
| 48 | 0,51 | 18 | 188,9 | 336 |
| 56 | 0,51 | 19 | 220,1 | 383 |
| 64 | 0,51 | 21 | 251,4 | 435 |
| 96 | 0,51 | 25 | 376,5 | 628 |
