JE-2Y(St)2Y Cable

JE-2Y(St)2Y Cable Description

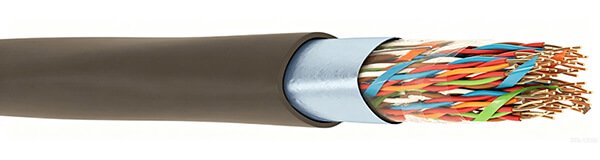

Featuring solid bare copper conductors, an electrostatic shield made of plastic-coated aluminum (Al/PET) foil with a tinned copper drain wire, and polyethylene insulation and outer sheathing, the JE-2Y(St)2Y cable offers excellent UV and weather resistance. It is specifically designed for outdoor use and harsh fixed installation environments but is not suitable for high-current power distribution.

JE-2Y(St)2Y Cable Construction

Conductor
Electrolytic solid bare copper
Insulation
Solid PE(Polyethylene)
Screen
Plastic-coated aluminum (Al/PET) foil with a tinned copper earthing wire
Outer Sheath
UV-resistant PE(Polyethylene)

JE-2Y(St)2Y Cable Characteristics

Temperature Range
-55°C ~ +70°C
Bending Radius
10 x D

JE-2Y(St)2Y Cable Specification

Pair Count	Conductor Diameter (mm)	Approx. Cable Diameter (mm)	Copper Weight (kg/km)	Approx. Weight (kg/km)
2	0.4	3.9	6.2	16
4	0.4	5.2	11.1	26
8	0.4	6.9	21	45
12	0.4	9.4	30.8	66
16	0.4	11	40.7	84
20	0.4	12	50.6	102
24	0.4	13	60.4	122
32	0.4	14	80.1	151
40	0.4	15	99.9	184
48	0.4	16	119.6	217
56	0.4	17	139.3	249
64	0.4	18	159	282
96	0.4	22	237.9	409
2	0.51	4.3	9.1	21
4	0.51	5.8	16.9	35
8	0.51	7.8	32.5	61
12	0.51	11	48.2	89
16	0.51	12	63.8	115
20	0.51	13	79.4	141
24	0.51	15	95.1	168
32	0.51	15	126.3	211
40	0.51	17	157.6	258
48	0.51	18	188.9	305
56	0.51	19	220.1	350
64	0.51	21	251.4	397
96	0.51	25	376.5	579
