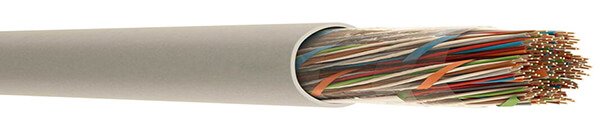

J-HH Cable Description
J-HH cable features a Class 1 solid electrolytic copper conductor, halogen-free flame-retardant (HFFR/LSZH) insulation, and an outer sheath. It is commonly used in public places with high fire safety requirements, such as schools, hospitals, and airports, for transmitting low-power electrical signals in walkie-talkies, telephone exchanges, and fire alarm systems.
This cable can be fixedly installed in dry or damp indoor rooms, placed on trays, in pipes, or in conduits (not suitable for direct burial). For environments requiring protection against electromagnetic interference, shielded cables like J-H(ST)H are typically used.
J-HH Cable Construction
- Conductor
- Solid electrolytic copper (Class 1)
- Insulation
- Halogen-Free Flame Retardant (HFFR / LSZH)
- Outer Sheath
- Halogen-Free Flame Retardant (HFFR / LSZH)
J-HH Cable Characteristics
- Temperature Range
- -30°C ~ +70°C
- Bending Radius
- 10 x D
J-HH Cable Technical Data
| Conductor Diameter | Conductor Resistance Ω/km (20 °C) | Mutual Capacitance (nF/km) | Capacitance Unbalance (pF/500 m) | Test Voltage (@ 1 minute) V DC |
|---|---|---|---|---|
| 0.40 mm | 146.6 | 120 | 400 | 1000 |
| 0.50 mm | 93 | 120 | 400 | 1000 |
| 0.60 mm | 64.6 | 110 | 400 | 1000 |
| 0.65 mm | 60 | 110 | 400 | 1000 |
| 0.80 mm | 37 | 100 | 400 | 1000 |
J-HH Cable Specification
| Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|
| 1 | 0.4 | 2.8 | 3.6 | 10 |
| 2 | 0.4 | 3.2 | 5.9 | 14 |
| 3 | 0.4 | 3.8 | 8.3 | 19 |
| 4 | 0.4 | 4.5 | 10.7 | 24 |
| 5 | 0.4 | 4.8 | 13 | 29 |
| 6 | 0.4 | 5 | 15.4 | 32 |
| 7 | 0.4 | 5.4 | 17.7 | 38 |
| 8 | 0.4 | 5.6 | 20.1 | 41 |
| 10 | 0.4 | 6.3 | 26 | 54 |
| 12 | 0.4 | 6.8 | 30.7 | 62 |
| 14 | 0.4 | 7.2 | 35.4 | 70 |
| 15 | 0.4 | 7.4 | 37.8 | 74 |
| 16 | 0.4 | 7.6 | 40.1 | 77 |
| 20 | 0.4 | 7.7 | 49.8 | 91 |
| 25 | 0.4 | 9.1 | 61.4 | 112 |
| 30 | 0.4 | 10.3 | 73.5 | 133 |
| 40 | 0.4 | 11.4 | 97.2 | 170 |
| 50 | 0.4 | 12.6 | 120.9 | 208 |
| 60 | 0.4 | 13.6 | 144.6 | 243 |
| 70 | 0.4 | 14.3 | 168.3 | 283 |
| 80 | 0.4 | 15.3 | 192 | 318 |
| 100 | 0.4 | 17.4 | 238.2 | 396 |
| 150 | 0.4 | 21.7 | 362.6 | 583 |
| 200 | 0.4 | 24 | 483.4 | 753 |
| 250 | 0.4 | 26.9 | 604.3 | 942 |
| 300 | 0.4 | 29.4 | 725.1 | 1126 |
| 400 | 0.4 | 33 | 966.8 | 1470 |
| 500 | 0.4 | 37.7 | 1208.5 | 1818 |
| 600 | 0.4 | 40.9 | 1450.2 | 2155 |
| 1 | 0.5 | 3.1 | 5.5 | 13 |
| 2 | 0.5 | 3.5 | 9.2 | 19 |
| 3 | 0.5 | 4.3 | 12.9 | 26 |
| 4 | 0.5 | 5.1 | 16.6 | 33 |
| 5 | 0.5 | 5.4 | 20.3 | 39 |
| 6 | 0.5 | 5.6 | 24 | 44 |
| 7 | 0.5 | 6.1 | 27.7 | 51 |
| 8 | 0.5 | 6.4 | 31.4 | 57 |
| 10 | 0.5 | 7.2 | 40.6 | 74 |
| 12 | 0.5 | 7.7 | 47.9 | 86 |
| 14 | 0.5 | 8.2 | 55.3 | 97 |
| 15 | 0.5 | 8.4 | 59 | 102 |
| 16 | 0.5 | 8.6 | 62.7 | 107 |
| 20 | 0.5 | 8.7 | 77.8 | 127 |
| 25 | 0.5 | 10.4 | 95.8 | 158 |
| 30 | 0.5 | 11.8 | 114.8 | 187 |
| 40 | 0.5 | 13.1 | 151.8 | 240 |
| 50 | 0.5 | 14.5 | 188.9 | 295 |
| 60 | 0.5 | 15.6 | 225.9 | 347 |
| 70 | 0.5 | 16.5 | 262.9 | 403 |
| 80 | 0.5 | 17.6 | 299.9 | 455 |
| 100 | 0.5 | 20.1 | 372.1 | 565 |
| 150 | 0.5 | 25.2 | 566.5 | 839 |
| 200 | 0.5 | 27.9 | 755.3 | 1089 |
| 250 | 0.5 | 31.3 | 944.1 | 1362 |
| 300 | 0.5 | 34.1 | 1133 | 1629 |
| 400 | 0.5 | 38.4 | 1510.6 | 2136 |
| 500 | 0.5 | 43.9 | 1888.2 | 2648 |
| 600 | 0.5 | 47.7 | 2265.9 | 3147 |
| 1 | 0.6 | 3.7 | 8 | 19 |
| 2 | 0.6 | 4.3 | 13.2 | 27 |
| 3 | 0.6 | 5.3 | 18.6 | 38 |
| 4 | 0.6 | 6.2 | 23.9 | 48 |
| 5 | 0.6 | 6.6 | 29.2 | 57 |
| 6 | 0.6 | 6.9 | 34.5 | 65 |
| 7 | 0.6 | 7.5 | 39.8 | 73 |
| 8 | 0.6 | 7.9 | 45.1 | 83 |
| 10 | 0.6 | 8.8 | 58.4 | 106 |
| 12 | 0.6 | 9.5 | 69 | 123 |
| 14 | 0.6 | 10.1 | 79.6 | 139 |
| 15 | 0.6 | 10.4 | 84.9 | 147 |
| 16 | 0.6 | 10.6 | 90.2 | 155 |
| 20 | 0.6 | 10.7 | 112 | 185 |
| 25 | 0.6 | 12.9 | 138 | 230 |
| 30 | 0.6 | 14.7 | 165.3 | 272 |
| 40 | 0.6 | 16.3 | 218.6 | 352 |
| 50 | 0.6 | 18.1 | 271.9 | 433 |
| 60 | 0.6 | 19.6 | 325.3 | 510 |
| 70 | 0.6 | 20.7 | 378.6 | 592 |
| 80 | 0.6 | 22.2 | 431.9 | 670 |
| 100 | 0.6 | 25.3 | 535.8 | 833 |
| 150 | 0.6 | 31.8 | 815.7 | 1241 |
| 200 | 0.6 | 35.6 | 1087.6 | 1632 |
| 250 | 0.6 | 39.9 | 1359.5 | 2047 |
| 300 | 0.6 | 43.3 | 1631.4 | 2429 |
| 400 | 0.6 | 48.8 | 2175.2 | 3181 |
| 500 | 0.6 | 55.9 | 2719 | 3949 |
| 600 | 0.6 | 60.8 | 3262.8 | 4699 |
| 1 | 0.8 | 4.5 | 14.1 | 29 |
| 2 | 0.8 | 5.2 | 23.5 | 43 |
| 3 | 0.8 | 6.4 | 33.1 | 60 |
| 4 | 0.8 | 7.7 | 42.5 | 76 |
| 5 | 0.8 | 8.1 | 51.9 | 90 |
| 6 | 0.8 | 8.5 | 61.4 | 104 |
| 7 | 0.8 | 9.2 | 70.8 | 118 |
| 8 | 0.8 | 9.5 | 80.2 | 129 |
| 10 | 0.8 | 10.6 | 103.8 | 168 |
| 12 | 0.8 | 11.6 | 122.7 | 199 |
| 14 | 0.8 | 12.4 | 141.5 | 226 |
| 15 | 0.8 | 12.8 | 151 | 239 |
| 16 | 0.8 | 13.1 | 160.4 | 253 |
| 20 | 0.8 | 13.1 | 199.1 | 306 |
| 25 | 0.8 | 16.1 | 249.3 | 379 |
| 30 | 0.8 | 18.7 | 293.9 | 465 |
| 40 | 0.8 | 20.7 | 388.6 | 596 |
| 50 | 0.8 | 22.9 | 483.4 | 728 |
| 60 | 0.8 | 24.7 | 578.2 | 859 |
| 70 | 0.8 | 25.9 | 673 | 985 |
| 80 | 0.8 | 28 | 767.8 | 1127 |
| 100 | 0.8 | 31.7 | 952.6 | 1386 |
| 150 | 0.8 | 40.2 | 1450.2 | 2091 |
| 200 | 0.8 | 44.9 | 1933.5 | 2752 |
| 250 | 0.8 | 49.9 | 2416.9 | 3402 |
| 300 | 0.8 | 54.3 | 2900.3 | 4048 |
| 400 | 0.8 | 61.2 | 3867 | 5324 |
| 500 | 0.8 | 70.5 | 4833.8 | 6624 |
| 600 | 0.8 | 76.5 | 5800.5 | 7899 |
