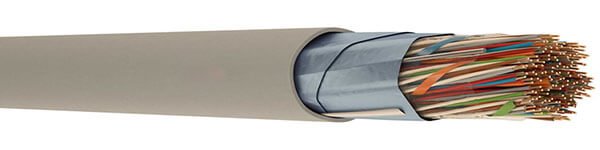

J-02Y(St)H Cable Description
J-02Y(St)H cable uses solid bare copper wire, foamed polyethylene (PE) or standard PE insulation, a static shielding layer to block electromagnetic interference (EMI), and an outer sheath made of halogen-free flame-retardant (HFFR/LSZH) material, ensuring low smoke concentration and no corrosive gas emissions in the event of a fire.
This cable is suitable for dry or damp rooms, indoor fixed structural wiring (on or under drywall), for connecting ISDN systems, IT network components, and telecommunications units operating at speeds up to 16 Mbit/s (Category 3).
J-02Y(St)H Cable Construction
- Conductor
- Electrolytic solid copper, Class 1
- Insulation
- PE(Polyethylene)
- Screen
- Plastic-laminated aluminum foil paired with a tinned copper drain wire
- Outer Sheath
- Halogen-free, flame-retardant (LSZH)
J-02Y(St)H Cable Characteristics
- Temperature Range
- -30°C ~ +70°C
- Bending Radius
- 10 x D
J-02Y(St)H Cable Technical Data
| Conductor Diameter | Conductor Resistance (20 °C) Ω/km | Mutual Capacitance nF/km | Capacitance Unbalance pF/500 m | Test Voltage (@1 minute) V DC |
|---|---|---|---|---|
| 0.40 mm | 146.6 | 56 | 400 | 1000 |
| 0.50 mm | 93 | 56 | 400 | 1000 |
| 0.60 mm | 64.6 | 51 | 400 | 1000 |
| 0.65 mm | 60 | 51 | 400 | 1000 |
| 0.80 mm | 37 | 51 | 400 | 1000 |
| 0.90 mm | 28.8 | 51 | 400 | 1000 |
J-02Y(St)H Cable Specification
| Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|
| 1 | 0,4 | 2,9 | 4,3 | 12 | 100/500/1000 |
| 2 | 0,4 | 3,4 | 6,7 | 17 | 100/500/1000 |
| 3 | 0,4 | 4,3 | 9 | 23 | 100/500/1000 |
| 4 | 0,4 | 4,3 | 11,4 | 26 | 100/500/1000 |
| 5 | 0,4 | 4,6 | 13,8 | 30 | 100/500/1000 |
| 6 | 0,4 | 5,3 | 16,1 | 36 | 100/500/1000 |
| 7 | 0,4 | 5,4 | 18,5 | 40 | 100/500/1000 |
| 8 | 0,4 | 5,5 | 20,9 | 43 | 100/500/1000 |
| 9 | 0,4 | 5,7 | 23,3 | 47 | 100/500/1000 |
| 10 | 0,4 | 5,7 | 25,6 | 50 | 100/500/1000 |
| 12 | 0,4 | 6,2 | 30,4 | 58 | 100/500/1000 |
| 14 | 0,4 | 7,2 | 35,1 | 71 | 100/500/1000 |
| 15 | 0,4 | 6,6 | 37,5 | 69 | 100/500/1000 |
| 16 | 0,4 | 6,8 | 39,8 | 72 | 100/500/1000 |
| 20 | 0,4 | 7,4 | 49,3 | 87 | 100/500/1000 |
| 30 | 0,4 | 9,8 | 73 | 126 | 100/500/1000 |
| 50 | 0,4 | 12 | 120,4 | 195 | 100/500/1000 |
| 100 | 0,4 | 17 | 243,5 | 373 | 100/500/1000 |
