J-02Y(St)Y Cable Description

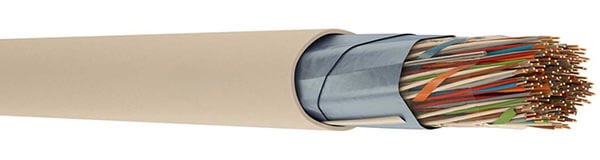

The J-02Y(St)Y cable features Class 1 electrolytic solid copper, polyethylene (PE) insulation, a polyvinyl chloride (PVC) outer sheath, and an electrostatic shielding layer made of plastic-laminated aluminum foil, along with a tinned copper grounding wire.
Suitable for fixed indoor installation in both dry and damp rooms, on or under drywall. Used for transmitting data, voice, and low-frequency signals in information technology systems, telephone networks, and data transmission units.
J-02Y(St)Y Cable Construction
- Conductor
- Electrolytic solid copper, Class 1
- Insulation
- PE(Polyethylene)
- Screen
- Plastic-laminated aluminum foil paired with a tinned copper drain wire
- Outer Sheath
- PVC(Polyvinyl chloride)
J-02Y(St)Y Cable Characteristics
- Temperature Range
- -30°C ~ +70°C
- Bending Radius
- 10 x D
J-02Y(St)Y Cable Technical Data
| Conductor Diameter | Conductor Resistance (20 °C) Ω/km | Mutual Capacitance nF/km | Capacitance Unbalance pF/500 m | Test Voltage (@1 minute) V DC |
|---|---|---|---|---|
| 0.40 mm | 146.6 | 56 | 400 | 1000 |
| 0.50 mm | 93 | 56 | 400 | 1000 |
| 0.60 mm | 64.6 | 51 | 400 | 1000 |
| 0.65 mm | 60 | 51 | 400 | 1000 |
| 0.80 mm | 37 | 51 | 400 | 1000 |
| 0.90 mm | 28.8 | 51 | 400 | 1000 |
J-02Y(St)Y Cable Specification
| Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|
| 1 | 0,4 | 2,9 | 4,3 | 12 |
| 2 | 0,4 | 3,4 | 6,7 | 17 |
| 3 | 0,4 | 4,3 | 9 | 24 |
| 4 | 0,4 | 4,3 | 11,4 | 26 |
| 5 | 0,4 | 4,6 | 13,8 | 31 |
| 6 | 0,4 | 5,3 | 16,1 | 36 |
| 7 | 0,4 | 5,4 | 18,5 | 41 |
| 8 | 0,4 | 5,5 | 20,9 | 44 |
| 9 | 0,4 | 5,7 | 23,3 | 48 |
| 10 | 0,4 | 5,7 | 25,6 | 51 |
| 12 | 0,4 | 6,2 | 30,4 | 59 |
| 14 | 0,4 | 7,2 | 35,1 | 72 |
| 15 | 0,4 | 6,6 | 37,5 | 69 |
| 16 | 0,4 | 6,8 | 39,8 | 73 |
| 20 | 0,4 | 7,4 | 49,3 | 88 |
| 30 | 0,4 | 9,8 | 73 | 127 |
| 50 | 0,4 | 11,9 | 120,4 | 196 |
| 100 | 0,4 | 16,4 | 243,5 | 376 |
| 1 | 0,5 | 3,1 | 5,6 | 15 |
| 2 | 0,5 | 3,7 | 9,3 | 21 |
| 3 | 0,5 | 4,7 | 13 | 29 |
| 4 | 0,5 | 4,9 | 16,7 | 35 |
| 5 | 0,5 | 5 | 20,4 | 40 |
| 6 | 0,5 | 5,9 | 24,1 | 47 |
| 7 | 0,5 | 6 | 27,8 | 53 |
| 8 | 0,5 | 6,1 | 31,5 | 57 |
| 9 | 0,5 | 6,2 | 35,2 | 62 |
| 10 | 0,5 | 6,3 | 39 | 68 |
| 12 | 0,5 | 6,8 | 46,4 | 79 |
| 14 | 0,5 | 7,2 | 53,8 | 89 |
| 15 | 0,5 | 7,4 | 57,5 | 94 |
| 16 | 0,5 | 7,6 | 61,2 | 99 |
| 20 | 0,5 | 8,3 | 76 | 121 |
| 30 | 0,5 | 11,1 | 113 | 176 |
| 50 | 0,5 | 13,8 | 187 | 282 |
| 100 | 0,5 | 18,8 | 379,4 | 534 |
