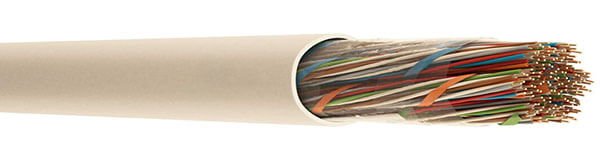

J-YY Cable Description
J-YY cables feature solid bare copper conductors, PVC insulation, and an outer sheath. They are suitable for fixed installation in both dry and damp rooms, but should be protected from direct sunlight when installed along exterior walls. They are frequently used in telephone exchanges, intercom systems, and subscriber distribution networks within buildings.
J-YY Cable Construction
- Conductor
- Solid bare copper
- Insulation
- PVC (polyvinyl chloride)
- Outer Sheath
- PVC (polyvinyl chloride)
J-YY Cable Characteristics
- Temperature Range
- -30°C ~ +70°C
- Bending Radius
- 10 x D
J-YY Cable Technical Data
| Conductor Diameter | Conductor Resistance Ω/km (20 °C) | Mutual Capacitance (nF/km) | Capacitance Unbalance (pF/500 m) | Test Voltage (@ 1 minute) V DC |
|---|---|---|---|---|
| 0.40 mm | 146.6 | 120 | 400 | 1000 |
| 0.50 mm | 93 | 120 | 400 | 1000 |
| 0.60 mm | 64.6 | 110 | 400 | 1000 |
| 0.65 mm | 60 | 110 | 400 | 1000 |
| 0.80 mm | 37 | 100 | 400 | 1000 |
| 0.90 mm | 28.8 | 100 | 400 | 1000 |
J-YY Cable Specification
| Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) |
|---|---|---|---|---|
| 1 | 0.4 | 2.8 | 3.6 | 11 |
| 2 | 0.4 | 3.2 | 5.9 | 15 |
| 3 | 0.4 | 3.8 | 8.3 | 20 |
| 4 | 0.4 | 4.5 | 10.7 | 26 |
| 5 | 0.4 | 4.8 | 13 | 30 |
| 6 | 0.4 | 5 | 15.4 | 34 |
| 7 | 0.4 | 5.4 | 17.7 | 40 |
| 8 | 0.4 | 5.6 | 20.1 | 43 |
| 9 | 0.4 | 6 | 22.4 | 49 |
| 10 | 0.4 | 6.3 | 26 | 56 |
| 12 | 0.4 | 6.8 | 30.7 | 64 |
| 14 | 0.4 | 7.3 | 35.4 | 73 |
| 15 | 0.4 | 7.5 | 37.8 | 77 |
| 16 | 0.4 | 7.7 | 40.1 | 81 |
| 20 | 0.4 | 7.6 | 49.8 | 96 |
| 25 | 0.4 | 9.2 | 61.4 | 117 |
| 30 | 0.4 | 10.1 | 73.5 | 138 |
| 33 | 0.4 | 10.3 | 80.6 | 152 |
| 40 | 0.4 | 11.2 | 97.2 | 179 |
| 50 | 0.4 | 12.3 | 120.9 | 215 |
| 60 | 0.4 | 13.5 | 144.6 | 257 |
| 70 | 0.4 | 14 | 168.3 | 291 |
| 80 | 0.4 | 15.2 | 192 | 335 |
| 100 | 0.4 | 17.1 | 241.6 | 411 |
| 120 | 0.4 | 18.2 | 289.9 | 481 |
| 150 | 0.4 | 21.2 | 362.4 | 592 |
| 200 | 0.4 | 23.4 | 483.2 | 763 |
| 250 | 0.4 | 26.1 | 604 | 947 |
| 300 | 0.4 | 28.7 | 724.8 | 1146 |
| 400 | 0.4 | 32.1 | 966.3 | 1486 |
| 500 | 0.4 | 36.7 | 1207.9 | 1837 |
| 600 | 0.4 | 39.8 | 1449.5 | 2173 |
| 1 | 0.5 | 3.1 | 5.5 | 14 |
| 2 | 0.5 | 3.5 | 9.2 | 20 |
| 3 | 0.5 | 4.3 | 12.9 | 27 |
| 4 | 0.5 | 5.1 | 16.6 | 34 |
| 5 | 0.5 | 5.4 | 20.3 | 41 |
| 6 | 0.5 | 5.6 | 24 | 46 |
| 7 | 0.5 | 6.1 | 27.7 | 53 |
| 8 | 0.5 | 6.4 | 31.4 | 59 |
| 9 | 0.5 | 6.7 | 35 | 66 |
| 10 | 0.5 | 7.2 | 40.6 | 76 |
| 12 | 0.5 | 7.7 | 47.9 | 87 |
| 14 | 0.5 | 8.3 | 55.3 | 100 |
| 15 | 0.5 | 8.5 | 59 | 106 |
| 16 | 0.5 | 8.7 | 62.7 | 111 |
| 20 | 0.5 | 8.6 | 77.8 | 132 |
| 25 | 0.5 | 10.5 | 95.8 | 163 |
| 30 | 0.5 | 11.5 | 114.8 | 192 |
| 33 | 0.5 | 11.5 | 125.9 | 206 |
| 40 | 0.5 | 12.7 | 151.8 | 244 |
| 50 | 0.5 | 14.2 | 188.9 | 303 |
| 60 | 0.5 | 15.5 | 225.9 | 362 |
| 70 | 0.5 | 16.1 | 262.9 | 412 |
| 80 | 0.5 | 17.5 | 299.9 | 473 |
| 100 | 0.5 | 19.7 | 374 | 580 |
| 120 | 0.5 | 21 | 448 | 680 |
| 150 | 0.5 | 24.5 | 566.2 | 847 |
| 200 | 0.5 | 27.2 | 755 | 1098 |
| 250 | 0.5 | 30.3 | 943.7 | 1366 |
| 300 | 0.5 | 33.3 | 1132.4 | 1650 |
| 400 | 0.5 | 37.4 | 1509.9 | 2151 |
| 500 | 0.5 | 42.7 | 1887.3 | 2664 |
| 600 | 0.5 | 46.4 | 2264.8 | 3160 |
| 1 | 0.6 | 3.7 | 8 | 20 |
| 2 | 0.6 | 4.3 | 13.2 | 29 |
| 3 | 0.6 | 5.3 | 18.6 | 39 |
| 4 | 0.6 | 6.2 | 23.9 | 50 |
| 5 | 0.6 | 6.6 | 29.2 | 59 |
| 6 | 0.6 | 6.9 | 34.5 | 67 |
| 7 | 0.6 | 7.6 | 39.8 | 78 |
| 8 | 0.6 | 7.9 | 45.1 | 86 |
| 9 | 0.6 | 8.2 | 50.5 | 94 |
| 10 | 0.6 | 8.8 | 58.4 | 108 |
| 12 | 0.6 | 9.4 | 69 | 125 |
| 14 | 0.6 | 10.1 | 79.6 | 144 |
| 15 | 0.6 | 10.4 | 84.9 | 152 |
| 16 | 0.6 | 10.7 | 90.2 | 160 |
| 20 | 0.6 | 10.5 | 112 | 191 |
| 25 | 0.6 | 13 | 138 | 235 |
| 30 | 0.6 | 14.3 | 165.3 | 279 |
| 33 | 0.6 | 14.5 | 181.3 | 307 |
| 40 | 0.6 | 16 | 218.6 | 364 |
| 50 | 0.6 | 17.7 | 271.9 | 442 |
| 60 | 0.6 | 19.3 | 325.3 | 528 |
| 70 | 0.6 | 20.2 | 378.6 | 603 |
| 80 | 0.6 | 21.8 | 431.9 | 692 |
| 100 | 0.6 | 24.7 | 543.6 | 856 |
| 120 | 0.6 | 26.4 | 652.3 | 1008 |
| 150 | 0.6 | 31 | 815.4 | 1250 |
| 200 | 0.6 | 34.6 | 1087.1 | 1643 |
| 250 | 0.6 | 38.4 | 1358.9 | 2024 |
| 300 | 0.6 | 42.1 | 1630.7 | 2443 |
| 400 | 0.6 | 47.4 | 2174.2 | 3195 |
| 500 | 0.6 | 54.3 | 2717.7 | 3962 |
| 600 | 0.6 | 59.1 | 3261.3 | 4706 |
| 1 | 0.8 | 4.5 | 14.1 | 30 |
| 2 | 0.8 | 5.2 | 23.5 | 45 |
| 3 | 0.8 | 6.4 | 33.1 | 62 |
| 4 | 0.8 | 7.7 | 42.5 | 78 |
| 5 | 0.8 | 8.1 | 51.9 | 93 |
| 6 | 0.8 | 8.5 | 61.4 | 107 |
| 7 | 0.8 | 9.3 | 70.8 | 124 |
| 8 | 0.8 | 9.7 | 80.2 | 137 |
| 9 | 0.8 | 10.1 | 89.7 | 151 |
| 10 | 0.8 | 10.7 | 103.8 | 173 |
| 12 | 0.8 | 11.6 | 122.7 | 201 |
| 14 | 0.8 | 12.5 | 141.5 | 231 |
| 15 | 0.8 | 12.8 | 151 | 244 |
| 16 | 0.8 | 13.2 | 160.4 | 258 |
| 20 | 0.8 | 13 | 199.1 | 314 |
| 25 | 0.8 | 16.2 | 245.3 | 386 |
| 30 | 0.8 | 18.3 | 293.9 | 476 |
| 33 | 0.8 | 18.3 | 322.3 | 512 |
| 40 | 0.8 | 20.2 | 388.6 | 608 |
| 50 | 0.8 | 22.3 | 483.4 | 741 |
| 60 | 0.8 | 24.1 | 578.2 | 872 |
| 70 | 0.8 | 25.2 | 673 | 999 |
| 80 | 0.8 | 27.3 | 767.8 | 1143 |
| 100 | 0.8 | 30.9 | 966.3 | 1419 |
| 120 | 0.8 | 33.1 | 1159.6 | 1677 |
| 150 | 0.8 | 39.1 | 1449.5 | 2101 |
| 200 | 0.8 | 43.7 | 1932.6 | 2764 |
| 250 | 0.8 | 48.6 | 2415.8 | 3413 |
| 300 | 0.8 | 52.8 | 2898.9 | 4056 |
| 400 | 0.8 | 59.5 | 3865.2 | 5329 |
| 500 | 0.8 | 68.3 | 4831.5 | 6621 |
| 600 | 0.8 | 74.3 | 5797.8 | 7885 |
| 1 | 0.9 | 5 | 17.9 | 38 |
| 2 | 0.9 | 5.9 | 29.7 | 56 |
| 3 | 0.9 | 7.2 | 41.8 | 78 |
| 4 | 0.9 | 8.6 | 53.8 | 98 |
| 5 | 0.9 | 9.1 | 65.7 | 117 |
| 6 | 0.9 | 9.6 | 77.6 | 134 |
| 7 | 0.9 | 10.4 | 89.6 | 153 |
| 8 | 0.9 | 10.9 | 101.5 | 172 |
| 9 | 0.9 | 11.4 | 113.5 | 190 |
| 10 | 0.9 | 12.1 | 131.4 | 218 |
| 12 | 0.9 | 13.2 | 155.2 | 256 |
| 14 | 0.9 | 14.2 | 179.1 | 294 |
| 15 | 0.9 | 14.6 | 191 | 311 |
| 16 | 0.9 | 15 | 203 | 329 |
| 20 | 0.9 | 14.9 | 252 | 406 |
| 25 | 0.9 | 18.6 | 310.4 | 500 |
| 30 | 0.9 | 20.5 | 371.9 | 594 |
| 33 | 0.9 | 20.5 | 407.9 | 640 |
| 40 | 0.9 | 22.7 | 491.9 | 760 |
| 50 | 0.9 | 25.3 | 611.8 | 941 |
| 60 | 0.9 | 27.4 | 731.8 | 1108 |
| 70 | 0.9 | 28.7 | 851.7 | 1270 |
| 80 | 0.9 | 31 | 971.7 | 1452 |
| 100 | 0.9 | 35.1 | 1223 | 1803 |
| 120 | 0.9 | 37.6 | 1467.6 | 2133 |
| 150 | 0.9 | 44.3 | 1834.5 | 2649 |
| 200 | 0.9 | 49.5 | 2446 | 3490 |
| 250 | 0.9 | 55 | 3057.4 | 4314 |
| 300 | 0.9 | 59.8 | 3668.9 | 5133 |
| 400 | 0.9 | 67.5 | 4891.9 | 6755 |
| 500 | 0.9 | 77.6 | 6114.8 | 8397 |
| 600 | 0.9 | 81.9 | 7341.3 | 8724 |
