JE-2Y(St)CY Cable

JE-2Y(St)CY Cable Description

Featuring solid bare copper conductors, polyethylene insulation, an electrostatic shield, and a copper braid shield—all encased in a PVC jacket—the JE-2Y(St)CY cable offers excellent electromagnetic interference (EMI) resistance for industrial environments. It is suitable for fixed installation in dry or damp indoor spaces or on the exterior walls of buildings.

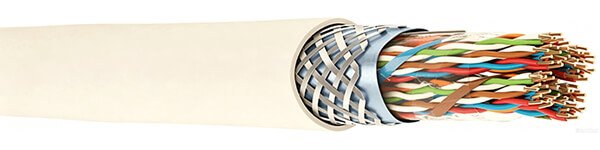

JE-2Y(St)CY Cable Construction

Conductor
Electrolytic solid copper
Insulation
PE(Polyethylene)
Screen
Tinned copper grounding wire, electrostatic shielding layer made of
plastic-laminated aluminum foil, and copper braided shielding layer.
Outer Sheath
PVC(Polyvinyl chloride)

JE-2Y(St)CY Cable Characteristics

Temperature Range
-40°C ~ +70°C
Bending Radius
10 x D

JE-2Y(St)CY Cable Specification

Pair Count	Conductor Diameter (mm)	Approx. Cable Diameter (mm)	Copper Weight (kg/km)	Approx. Weight (kg/km)
2	0,4	4,1	11,4	25
4	0,4	5,4	19	40
8	0,4	7,1	31,5	63
12	0,4	9,6	45,8	93
16	0,4	11	57,3	114
20	0,4	12	69,4	136
24	0,4	13	80,9	161
32	0,4	14	101,2	194
40	0,4	15	128	237
48	0,4	17	150,8	276
56	0,4	17	173,8	314
64	0,4	19	195,1	353
96	0,4	22	286,6	503
2	0,51	4,5	15,6	32
4	0,51	6	25,2	50
8	0,51	8	44,4	83
12	0,51	11	64,9	118
16	0,51	12	82,8	150
20	0,51	14	100,4	180
24	0,51	15	122,9	218
32	0,51	16	156,7	266
40	0,51	17	192,1	321
48	0,51	19	225,2	374
56	0,51	20	257,6	423
64	0,51	21	297,7	484
96	0,51	25	430,4	686
