JE-2Y(St)Y Cable

JE-2Y(St)Y Cable Description

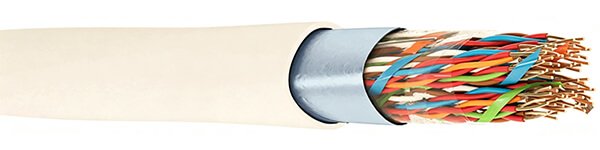

The JE-2Y(St)Y cable features solid bare copper conductors, polyethylene (PE) insulation, and a polyvinyl chloride (PVC) outer sheath; it includes an electrostatic shield made of plastic-coated aluminum foil and a tinned copper drain wire. It is suitable for fixed indoor and outdoor installations—including under-plaster applications—in both dry and damp environments, but is not intended for high-current power distribution.

JE-2Y(St)Y Cable Construction

Conductor
Electrolytic solid copper
Insulation
PE(Polyethylene)
Screen
Plastic-laminated aluminum foil paired with a tinned copper drain wire
Outer Sheath
PVC(Polyvinyl chloride)

JE-2Y(St)Y Cable Characteristics

Temperature Range
-40°C ~ +70°C
Bending Radius
10 x D

JE-2Y(St)Y Cable Specification

Pair Count	Conductor Diameter (mm)	Approx. Cable Diameter (mm)	Copper Weight (kg/km)	Approx. Weight (kg/km)
2	0,4	3,9	6,2	20
4	0,4	5,2	11,1	32
8	0,4	6,9	21	53
12	0,4	9,4	30,8	78
16	0,4	11	40,7	98
20	0,4	12	50,6	118
24	0,4	13	60,4	141
32	0,4	14	80,1	173
40	0,4	15	99,9	210
48	0,4	16	119,6	246
56	0,4	17	139,3	280
64	0,4	18	159	318
96	0,4	22	237,9	456
2	0,51	4,3	9,1	25
4	0,51	5,8	16,9	41
8	0,51	7,8	32,5	71
12	0,51	11	48,2	102
16	0,51	12	63,8	132
20	0,51	13	79,4	160
24	0,51	15	95,1	191
32	0,51	15	126,3	237
40	0,51	17	157,6	288
48	0,51	18	188,9	339
56	0,51	19	220,1	387
64	0,51	21	251,4	439
96	0,51	25	376,5	634
