Li2YCY Cable

Li2YCY Cable Description

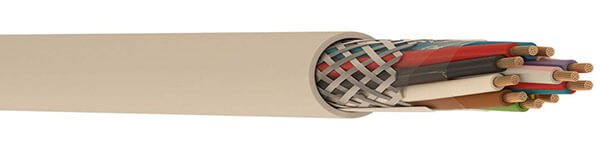

Li2YCY cables feature fine bare copper conductors, polyethylene (PE) insulation, a tinned copper braided shield, and a robust PVC outer sheath. Suitable for fixed installation in dry or damp indoor environments, they are commonly used in industrial automation, office technology, and data systems. A twisted-pair (TP) variant is also available to reduce crosstalk and decouple internal circuits.

Li2YCY Cable Construction

Conductor
Fine bare copper strands, Class 5
Insulation
Polyethylene (PE)
Screen
Tinned copper braiding
Outer Sheath
Polyvinyl chloride (PVC)

Li2YCY Cable Characteristics

Temperature Range
-30°C ~ +70°C
Bending Radius
7.5 x D

Li2YCY
Li2YCY-TP

Conductor Count	Conductor Cross-section (mm²)	Approx. Cable Diameter (mm)	Copper Weight (kg/km)	Approx. Weight (kg/km)
2	0.22	3.7	9.7	19
3	0.22	3.9	11.8	23
4	0.22	4.2	15.2	28
5	0.22	4.7	17.5	34
6	0.22	5.1	20.9	39
7	0.22	5.1	23	42
8	0.22	5.7	25.5	49
9	0.22	6	28.7	54
10	0.22	6.5	30.8	59
12	0.22	6.8	35.9	67
14	0.22	7.2	40.8	76
16	0.22	7.5	45.8	84
18	0.22	8	50.7	94
19	0.22	8	52.8	97
20	0.22	8.3	55.7	102
21	0.22	8.3	57.8	105
24	0.22	9.3	68.8	124
25	0.22	9.3	71	127
27	0.22	9.5	76.3	134
2	0.25	3.9	11.5	22
3	0.25	4.1	13.9	26
4	0.25	4.6	16.3	32
5	0.25	5.1	20.1	39
6	0.25	5.5	23	44
7	0.25	5.5	24.9	47
8	0.25	6.1	28.7	56
9	0.25	6.5	31.3	61
10	0.25	7	34	66
12	0.25	7.3	39.7	76
14	0.25	7.7	45.8	87
16	0.25	8.1	51.4	96
18	0.25	8.5	56.3	104
19	0.25	8.5	58.7	107
20	0.25	9	61.4	115
21	0.25	9	63.8	118
24	0.25	10	76.7	141
25	0.25	10	79.1	144
27	0.25	10.2	84.1	151
2	0.34	4.5	13.4	27
3	0.34	4.7	16.7	33
4	0.34	5.1	21.4	40
5	0.34	5.6	25	47
6	0.34	6.1	29.7	54
7	0.34	6.1	33	59
8	0.34	6.7	37	67
9	0.34	7.7	40.9	76
10	0.34	7.8	45	83
12	0.34	8	53	94
14	0.34	8.5	62.7	109
16	0.34	9	71	122
18	0.34	9.6	77.8	137
19	0.34	9.6	81.2	142
20	0.34	10.2	85.9	152
21	0.34	10.2	89.3	157
24	0.34	11.3	98.3	177
25	0.34	11.3	101.7	181
27	0.34	11.5	108.4	192
2	0.5	5.1	16.9	35
3	0.5	5.4	21.3	42
4	0.5	5.8	26	50
5	0.5	6.4	31.5	61
6	0.5	6.9	37.6	71
7	0.5	6.9	42	75
8	0.5	7.6	46.9	90
9	0.5	8.8	51.9	101
10	0.5	8.8	57.1	105
12	0.5	9.2	69.5	124
14	0.5	9.7	80.5	142
16	0.5	10.2	89.7	156
18	0.5	10.7	96.7	171
19	0.5	10.7	101.1	175
20	0.5	11.4	106.4	191
21	0.5	11.4	110.8	193
24	0.5	12.6	125.5	220
25	0.5	12.6	129.9	231
27	0.5	12.8	140.1	241
2	0.75	5.5	21.6	42
3	0.75	5.8	28.2	51
4	0.75	6.3	35.9	62
5	0.75	6.9	43.4	76
6	0.75	7.5	51.9	89
7	0.75	7.5	58.9	95
8	0.75	8.3	65.9	113
9	0.75	9.6	76.1	130
10	0.75	9.6	83.7	137
12	0.75	10	98.3	158
14	0.75	10.6	109.3	177
16	0.75	11.1	123.9	197
18	0.75	11.8	138.3	223
19	0.75	11.8	144.9	229
20	0.75	12.6	156.9	253
21	0.75	12.6	163.5	257
24	0.75	13.8	185.2	292
25	0.75	13.8	191.8	304
27	0.75	14.2	206.7	321
2	1	5.9	25.1	47
3	1	6.2	34.2	59
4	1	6.6	43.3	72
5	1	7.5	52.2	90
6	1	8.2	66.1	110
7	1	8.2	74.4	117
8	1	9.1	83.6	139
9	1	10.5	91	155
10	1	10.5	99.3	161
12	1	10.9	116.5	187
14	1	11.6	134	213
16	1	12.2	151.8	238
18	1	12.9	173.6	273
19	1	12.9	181.8	280
20	1	13.6	191.6	301
21	1	13.6	199.9	305
24	1	15.1	227.3	349
25	1	15.1	235.6	366
27	1	15.4	254.5	384
2	1.5	6.6	35.7	62
3	1.5	7	48.5	78
4	1.5	7.7	62.7	99
5	1.5	8.5	77.2	122
6	1.5	9.2	94.8	146
7	1.5	9.2	107.7	157
8	1.5	10.1	119.6	184
9	1.5	11.8	132.6	207
10	1.5	11.8	146.8	219
12	1.5	12.3	173.7	255
14	1.5	13	204.9	296
16	1.5	13.7	232.1	331
18	1.5	14.4	259.8	371
19	1.5	14.4	272.7	382
20	1.5	15.3	286.2	413
21	1.5	15.3	299	420
24	1.5	17.1	341.3	486
25	1.5	17.1	354.1	509
27	1.5	17.5	380.3	533
2	2.5	7.8	58.8	91
3	2.5	8.3	80.2	117
4	2.5	9.3	103.4	151
5	2.5	10.3	123.9	186
6	2.5	11.2	148.1	221
7	2.5	11.2	169.5	238
8	2.5	12.3	192.4	282
9	2.5	14.5	219.2	327
10	2.5	14.5	242.5	346
12	2.5	15.1	285.9	401
14	2.5	16	332	461
16	2.5	16.8	378.5	519
18	2.5	17.8	422.7	586
19	2.5	17.8	444.1	603
20	2.5	18.8	466.7	647
21	2.5	18.8	488.4	659
24	2.5	20.9	555.8	753
25	2.5	20.9	577.2	792
27	2.5	21.4	620.8	830
2	4	8.9	86	131
3	4	9.5	120.3	164
4	4	10.8	154	217
5	4	11.8	190.8	267
6	4	12.8	232.3	318
7	4	12.8	266.6	346
8	4	14.1	303	408
9	4	16.5	339.9	461
10	4	16.5	375	490
12	4	17.2	444.6	573
2	6	10.5	121.3	179
3	6	11.2	172.7	228
4	6	12.4	225.7	296
5	6	13.9	284	378
6	6	15.2	341.1	453
7	6	15.2	392.5	495
8	6	16.8	447.7	585
9	6	19.7	500.5	659
10	6	19.7	553.2	702
2	10	12.5	204.5	270
3	10	13.4	293.5	358
4	10	14.9	385.4	467
5	10	16.6	478.2	580
6	10	18.2	573.6	710
7	10	18.2	662.6	782
2	16	16.9	314.5	442
3	16	18.1	454.7	588
4	16	20.1	601.2	768
5	16	22.4	748.7	978

Pair Count	Conductor Cross-section (mm²)	Approx. Cable Diameter (mm)	Copper Weight (kg/km)	Approx. Weight (kg/km)
2	0.22	4.9	15.1	31
3	0.22	5.7	20.8	42
4	0.22	6.9	26.5	54
5	0.22	7.4	32.3	63
6	0.22	8.2	36.7	74
7	0.22	8.3	42	82
8	0.22	9	50.3	95
9	0.22	10.5	54.6	107
10	0.22	10.6	59	115
2	0.25	5.2	17.5	35
3	0.25	6.1	22.9	46
4	0.25	7.4	29.9	62
5	0.25	8	35	71
6	0.25	8.8	41	84
7	0.25	8.9	46.7	94
8	0.25	9.7	54.7	107
9	0.25	11.4	59.6	120
10	0.25	11.5	64.5	130
2	0.25	5.2	17.5	35
3	0.25	6.1	22.9	46
4	0.25	7.4	29.9	62
5	0.25	8	35	71
6	0.25	8.8	41	84
7	0.25	8.9	46.7	94
8	0.25	9.7	54.7	107
9	0.25	11.4	59.6	120
10	0.25	11.5	64.5	130
2	0.5	6.4	27.9	54
3	0.5	7.5	37.3	68
4	0.5	9.2	51.8	95
5	0.5	10.1	60.6	110
6	0.5	11	69.3	127
7	0.5	11.1	78.3	142
8	0.5	12.1	88.7	159
9	0.5	14.2	98.8	181
10	0.5	14.3	108	197
2	0.75	7	37.1	66
3	0.75	8.2	51.9	86
4	0.75	10.1	70.4	118
5	0.75	11	82.7	137
6	0.75	12.1	96.7	161
7	0.75	12.2	111.1	181
8	0.75	13.3	125.8	204
9	0.75	15.6	140.7	232
10	0.75	15.7	154.5	253
2	1	7.6	44.5	78
3	1	8.9	66	104
4	1	10.9	82.7	136
5	1	12	100.1	161
6	1	13.2	118.8	191
7	1	13.3	137.1	216
8	1	14.5	154.4	242
9	1	17.1	177.5	280
10	1	17.2	196.8	308
2	1.5	8.4	63.8	102
3	1.5	10.9	95	141
4	1.5	12.2	120.4	180
5	1.5	13.4	148.5	217
6	1.5	14.8	176.2	257
7	1.5	14.9	202.9	291
8	1.5	16.3	235.4	334
9	1.5	19.3	264.1	379
10	1.5	20.1	302.9	460
2	2.5	10.8	102.5	165
3	2.5	13.9	148.6	231
4	2.5	15.5	198.4	301
5	2.5	17.1	246.5	363
6	2.5	18.8	291	427
7	2.5	18.9	338.3	485
8	2.5	20.6	383.1	546
9	2.5	24.4	430.6	628
10	2.5	24.4	475.2	678
