LiY(St)Y Cable

LiY(St)Y Cable Description

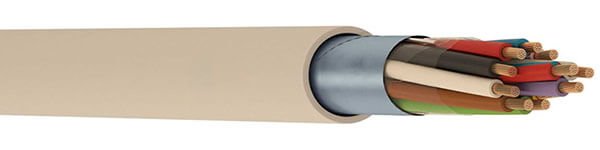

LiY(St)Y cables feature finely stranded bare copper conductors, PVC insulation and outer sheathing, and a shield made of plastic-coated aluminum foil, accompanied by a copper drain wire.

These cables are suitable for use in dry or damp indoor environments; they are not intended for prolonged direct outdoor exposure or direct burial underground without additional protective measures. Available configurations include TP (twisted pairs) and PiMF (pairs in metal foil).

LiY(St)Y Cable Construction

Conductor
Class 5 stranded bare copper
Insulation
Polyvinyl chloride (PVC)
Screen
Plastic-coated aluminum foil shield with a copper drain wire
Outer Sheath
Polyvinyl chloride (PVC)

LiY(St)Y Cable Characteristics

Voltage Rating
Up to 250V or 300V
Temperature Range
-30°C ~ +70°C

LiY(St)Y Cable Specification

Conductor Count	Conductor Cross-section (mm²)	Approx. Cable Diameter (mm)	Copper Weight (kg/km)	Approx. Weight (kg/km)
2	0.22	4	6.4	19
3	0.22	4.2	8.6	23
4	0.22	4.5	10.7	28
5	0.22	4.9	12.8	33
6	0.22	5.3	15	38
7	0.22	5.3	17.1	41
8	0.22	5.8	19.2	47
9	0.22	6.2	21.3	53
10	0.22	6.7	23.5	58
12	0.22	6.9	27.7	66
14	0.22	7.3	32	75
16	0.22	7.7	36.3	85
18	0.22	8.1	40.6	93
19	0.22	8.1	42.7	97
20	0.22	8.6	44.8	104
21	0.22	8.6	47	107
24	0.22	9.5	53.4	123
25	0.22	9.5	55.5	127
27	0.22	9.7	59.8	134
2	0.25	4.2	7	21
3	0.25	4.4	9.4	25
4	0.25	4.7	11.8	30
5	0.25	5.2	14.2	37
6	0.25	5.6	16.6	42
7	0.25	5.3	19	42
8	0.25	6.1	21.3	52
9	0.25	6.6	23.7	59
10	0.25	7.1	26.1	65
12	0.25	7.3	30.9	73
14	0.25	7.7	35.7	84
16	0.25	8.2	40.6	95
18	0.25	8.6	45.4	105
19	0.25	8.6	47.8	108
20	0.25	9.1	50.2	116
21	0.25	9.1	52.6	119
24	0.25	10.1	59.8	138
25	0.25	10.1	62.2	142
27	0.25	10.3	67	151
2	0.34	4.8	8.8	27
3	0.34	5	12.2	33
4	0.34	5.4	15.5	40
5	0.34	5.9	18.8	48
6	0.34	6.4	22.2	55
7	0.34	6.4	25.5	60
8	0.34	7	28.8	69
9	0.34	8	32.1	78
10	0.34	8.1	35.5	86
12	0.34	8.3	42.2	97
14	0.34	8.8	48.8	111
16	0.34	9.2	55.5	124
18	0.34	9.8	62.2	138
19	0.34	9.8	65.5	144
20	0.34	10.4	68.8	154
21	0.34	10.4	72.2	159
24	0.34	11.6	82.2	186
25	0.34	11.6	85.5	191
27	0.34	11.8	92.2	202
2	0.5	5.3	11	33
3	0.5	5.6	15.4	41
4	0.5	6	19.8	49
5	0.5	6.5	24.2	60
6	0.5	7.1	28.6	72
7	0.5	7.1	33	75
8	0.5	7.8	37.4	92
9	0.5	8.9	41.8	103
10	0.5	9	46.2	107
12	0.5	9.4	55	124
14	0.5	9.9	63.8	142
16	0.5	10.4	72.6	158
18	0.5	10.9	81.4	178
19	0.5	10.9	85.8	181
20	0.5	11.6	90.2	199
21	0.5	11.6	94.6	200
24	0.5	12.7	107.8	227
25	0.5	12.9	112.2	247
27	0.5	13.1	121	255
2	0.75	5.9	17.7	44
3	0.75	6.2	24.3	54
4	0.75	6.8	30.9	67
5	0.75	7.5	37.4	83
6	0.75	8	44	97
7	0.75	8	50.6	102
8	0.75	8.8	57.2	122
9	0.75	10.1	63.8	138
10	0.75	10.1	70.4	144
12	0.75	10.5	83.7	166
14	0.75	11.1	96.9	190
16	0.75	11.7	110.1	211
18	0.75	12.3	123.3	241
19	0.75	12.3	129.9	245
20	0.75	13	136.5	265
21	0.75	13	143.1	268
24	0.75	14.4	162.9	310
25	0.75	14.4	169.5	328
27	0.75	14.7	182.7	339
2	1	6.3	21	50
3	1	6.7	29.2	63
4	1	7.3	37.4	78
5	1	8	45.7	97
6	1	8.6	53.9	114
7	1	8.6	62.2	120
8	1	9.5	70.4	144
9	1	10.9	78.7	163
10	1	10.9	87	170
12	1	11.4	103.5	197
14	1	12	120	225
16	1	12.6	136.5	252
18	1	13.3	153	287
19	1	13.3	161.2	293
20	1	14	169.5	317
21	1	14	177.7	320
24	1	15.5	202.5	366
25	1	15.5	210.7	388
27	1	15.8	227.2	402
2	1.5	7	30.2	64
3	1.5	7.4	43	82
4	1.5	8.1	55.9	103
5	1.5	8.9	68.7	129
6	1.5	9.6	81.6	151
7	1.5	9.6	94.4	161
8	1.5	10.6	107.3	193
9	1.5	12.2	120.2	219
10	1.5	12.2	133	229
12	1.5	12.7	158.7	267
14	1.5	13.4	184.5	306
16	1.5	14.1	210.2	343
18	1.5	14.9	235.9	391
19	1.5	14.9	248.8	401
20	1.5	15.7	261.6	433
21	1.5	15.7	274.5	438
24	1.5	17.5	313	506
25	1.5	17.5	325.9	535
27	1.5	17.9	351.6	558
2	2.5	8.2	47.3	90
3	2.5	8.7	68.8	119
4	2.5	9.6	90.2	151
5	2.5	10.5	111.6	190
6	2.5	11.4	133	226
7	2.5	11.4	154.4	242
8	2.5	12.6	175.9	290
9	2.5	14.6	197.3	328
10	2.5	14.6	218.7	344
12	2.5	15.2	261.6	404
14	2.5	16.1	304.5	465
16	2.5	16.9	347.3	523
18	2.5	17.9	390.2	597
19	2.5	17.9	411.6	612
20	2.5	18.9	433.1	663
21	2.5	18.9	454.5	672
24	2.5	21.1	518.8	774
25	2.5	21.1	540.2	823
27	2.5	21.6	583.1	857
